9. Fid.
Set the fiducial No. to be used for dot dispense.
If you are not using the fiducial function, set "0".
10. Bad
Set the badmark No. to be used for dot dispense.
If you are not using badmarks, set "0".
11. Height Correction
This parameter appears only when the machine is equipped with an optional laser displacement meter.
Enter the data No. that was set on the [Height Correction] tab.
Enter “0” if not using the height correction function.
5-35
5
Creating the board data
5. Creating the component information
This section explains how to create data of components to be mounted on the board. Component information
consists of various parameters as shown below for each registered component name. These parameters can
be set easily by copying the sample data of a similarly shaped component from the database and changing
the parameters that differ from that component.
Among these parameters, "Basic", "Shape" and "Dispense" parameters need to be set in the case of the
dispenser.
In this section, the setting method for each parameter is given for some commonly used components.

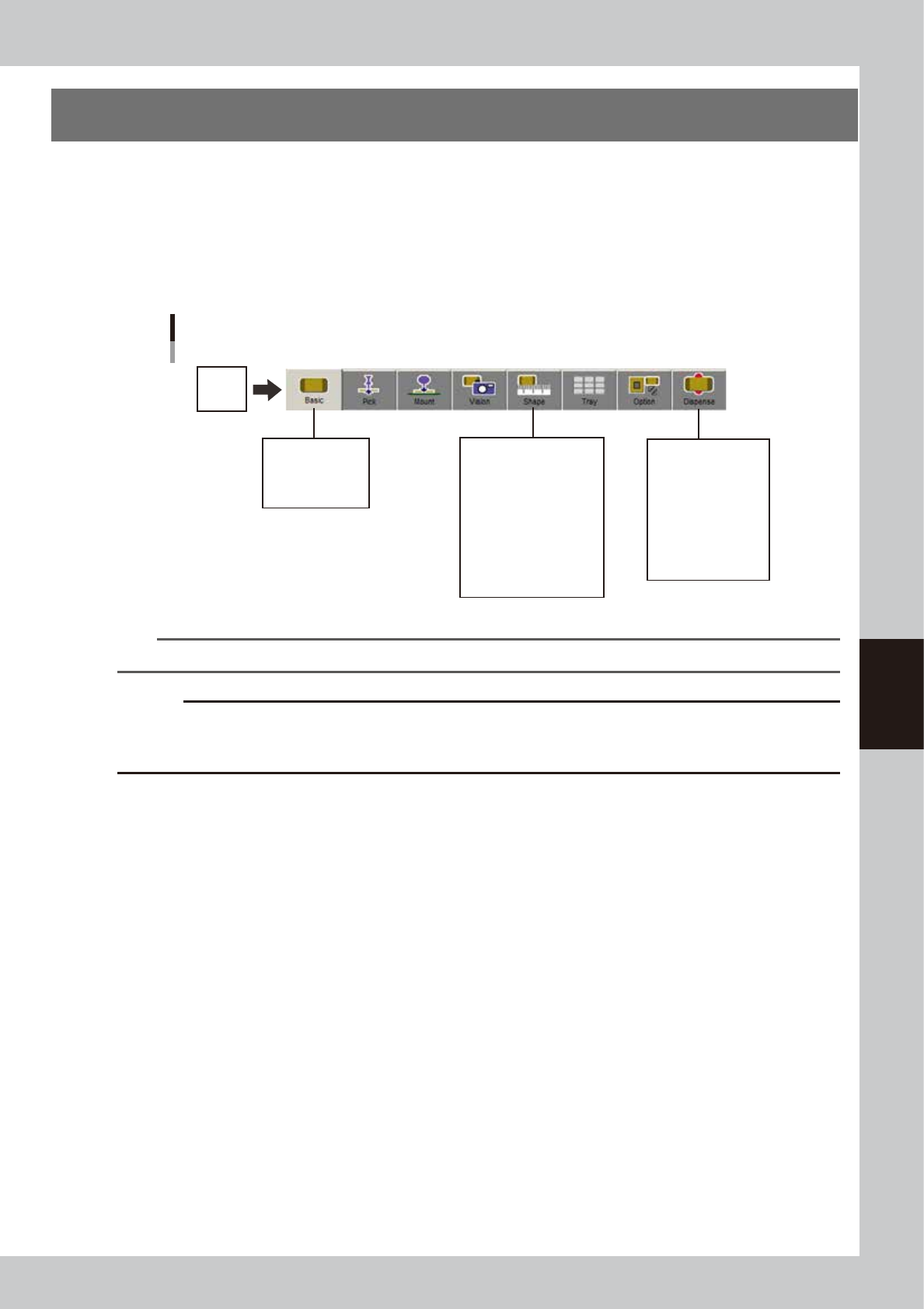

Parts
Component information parameters
Alignment Group
Alignment Type
Database Number
Required Nozzle
Dispense Nozzle
Dispens Unit
Ref. XY
Dot Extent XY
Dot Amount XY
Angle Offset
(Alignment Group)
(Alignment Type)
Body Size XY
Ruler Offset
Ruler Width
Lead Number
Lead Width
ReflectLL
Set these parameters
for solder type.
64517-N7-00
TIP
Parameters displayed somewhat differ depending on the selected component type and package style.
c
CAUTION
Set the Shape parameters when creating data for solder type. The following Alignment Type items are not supported:
“Simple BGA”, “BGA”, “Simple flip chip”, Flip chip, “Mark, “Special rectangle”, “Center-of-gravity detection”, “No
recognition”, “Special data”, “Nozzle check” and “No setting”.
5-36
5
Creating the board data
5.1 Creating procedure
After selecting the board name, press the [Parts] button in the main menu button area to open the component
information screen. Enter the component name and comment in the upper grid of the screen, and set the
parameters in the right lower grid as explained below.
1
Press the [Parts] button to open the component information screen.
Component information screen
Step 1 Step 2 Step 3
Step 4
Step 6
64518-N7-00
2
Enter the component name in the Part Name column.
Enter the name printed on the tape reel or on the component itself within 19 alphanumeric characters.
A space cannot be included in the name.
3
Enter a comment.
Type any desired comment in the Parts Comment column as necessary. You can omit entering
comments here.
4
Set the parameters.
While selecting the [Basic], [Shape], [Dispense] tabs and so forth, set the necessary parameters in the
lower right grid. (Refer to sections "4.2" to "4.5" for details.)
c
CAUTION
Set the Shape parameters when creating data for solder type.
5
Repeat the above steps for other components.
Repeat the same procedure from step 2 to register all components to be mounted on the board.
6
Save the data.
Press the [Save] button to store the data.
