5-67
5
Creating the board data
6.6.2 Using the data for pattern matching
Pattern matching can be used in the same way as the fiducial marks. In this case, enter the mark No. registered
as the pattern in the Mark 1 and Mark 2 columns on the [Board] - [Fiducial] tab screen. (The figure below
shows an example when using pattern matching as board fiducial marks.)
Example of using pattern matching
Set mark No. registered as pattern in
"Mark 1" and Mark 2" columns.
Set to "Execute".
64540-N7-00
5-68
5
Creating the board data
7. Creating dot dispense information
The dot dispense information allows you to set dispense related information such as dispense position and
amount.
7.1 Dispense distribution
Executing dispense distribution using dispense parameters in the component mount information and
component information creates dot dispense data automatically.
This section explains how to execute dispense distribution.
1
Start the Editor.
Press the [Editor] button.
Starting the editor
Press the [Editor] button.
64541-N7-00
c
CAUTION
Dispense distribution cannot be executed for the file that is currently edited.
When you are editing the board data to be subjected to dispense distribution, save that board data, execute dispense
distribution, then open the board data again.
TIP
For detailed information on the Editor window, see "1.2 Editor window" in Chapter 7.
5-69
5
Creating the board data
2
Select the board to be subjected to dispense distribution.
Select "Open Board Data" from the File menu or click the [Open Board Data] button on the toolbar. The
"Board data select" dialog box appears.
1. Check that the "Folder" box shows the path to the folder that contains the board data you want to
select. If not, press the [Folder] button and specify the folder containing the board data and press
the [OK] button.
2. Select the file type from the File Type drop-down list.
3. Select the board data and click the [Select] button.
The selected board data is loaded and displayed in the Editor window.

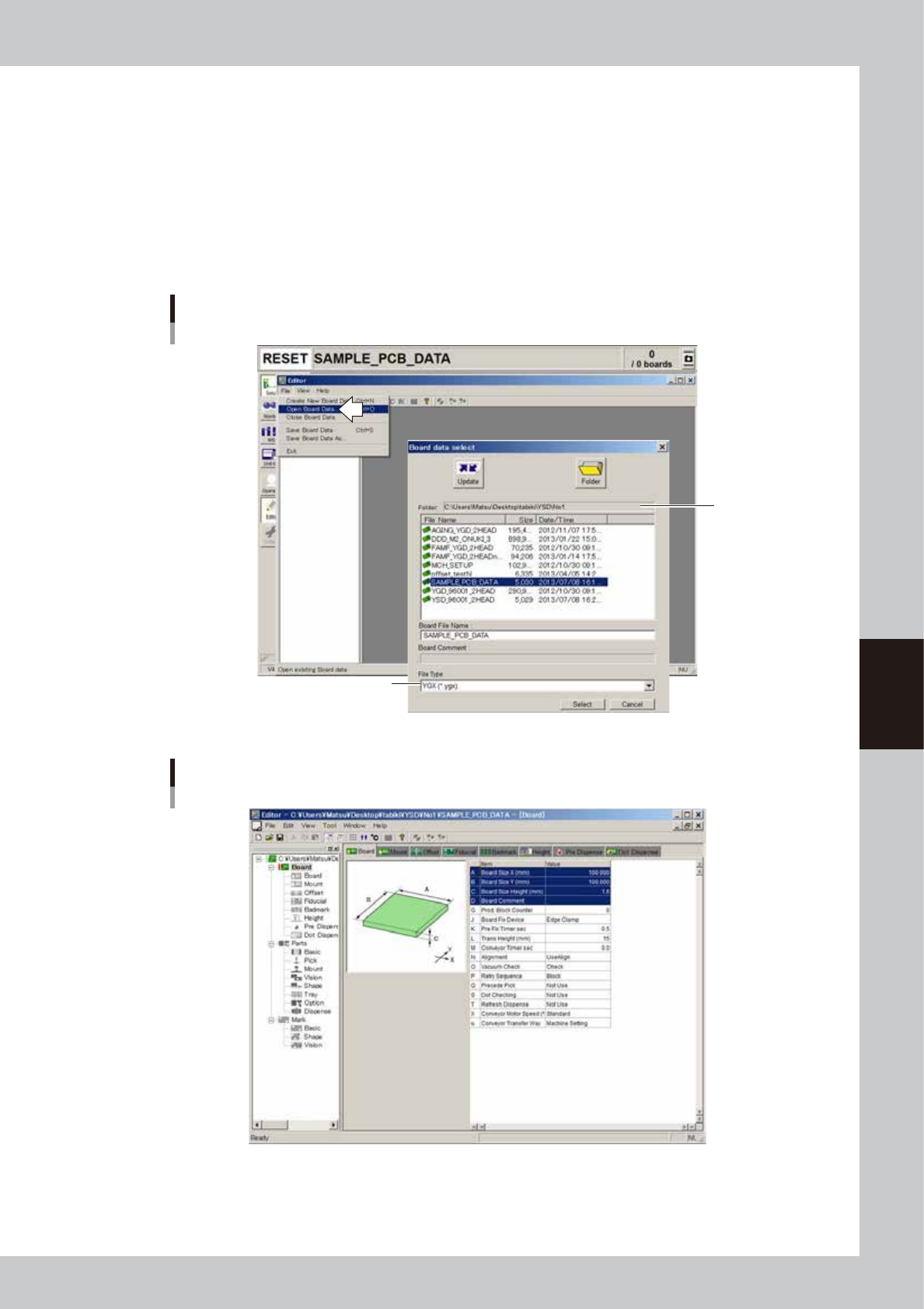

Selecting the board data
Check the
folder path.
Select the file type.
64542-N7-00
Editor window
64543-N7-00
