6-13 6 Using the advanced functions 3. Press the [End] button. When this button is pressed, the right and bottom sides of the teach window frame changes to bold lines. The teach window can be enlarged or reduced with the…
6-12
6
Using the advanced functions
7
Adjust the teach window size and position.
Press the [Cursor] tab to re-open the cursor teach screen.
Then adjust the teach window size and position as explained below, so that the target patterns or marks
fit in the teach window.
Teach window display screen
Teach window
Pattern
64611-N7-00
1. Crosshairs are displayed on the vision monitor as the guide lines. The red frame displayed on the
vision monitor is the teach window. Adjust the teach window size and position using the [Start], [End],
[Move] and arrow buttons.
2. Press the [Start] button.
When this button is pressed, the top and left sides of the teach window frame changes to bold lines.
The teach window can be enlarged or reduced with the arrow keys, using the lower right corner of
the window as a stationary point. The window size can also be adjusted by dragging the mouse after
placing the mouse cursor on the frame (mouse cursor changes to a 2-way arrow).
Teach window display – Moving top and left sides
Teach window
Stationary pointPattern
64612-N7-00
6-13
6
Using the advanced functions
3. Press the [End] button.
When this button is pressed, the right and bottom sides of the teach window frame changes to bold
lines. The teach window can be enlarged or reduced with the arrow keys, using the upper left corner
of the window as a stationary point. The window size can also be adjusted by dragging the mouse
after placing the mouse cursor on the frame (mouse cursor changes to a 2-way arrow).
Teach window display – Moving right and bottom sides
Teach windowStationary point
Pattern
64613-N7-00
4. Press the [Move] button.
When this button is pressed, the teach window frame changes to bold lines on all sides. The entire
window can be moved with the arrow keys, or by dragging the mouse after placing the mouse
cursor in the window (mouse cursor changes to a 4-way arrow). The window size can also be
adjusted by dragging the mouse after placing the mouse cursor on the frame.
Teach window display – Moving entire window
Teach window
Pattern
64614-N7-00
6-14
6
Using the advanced functions

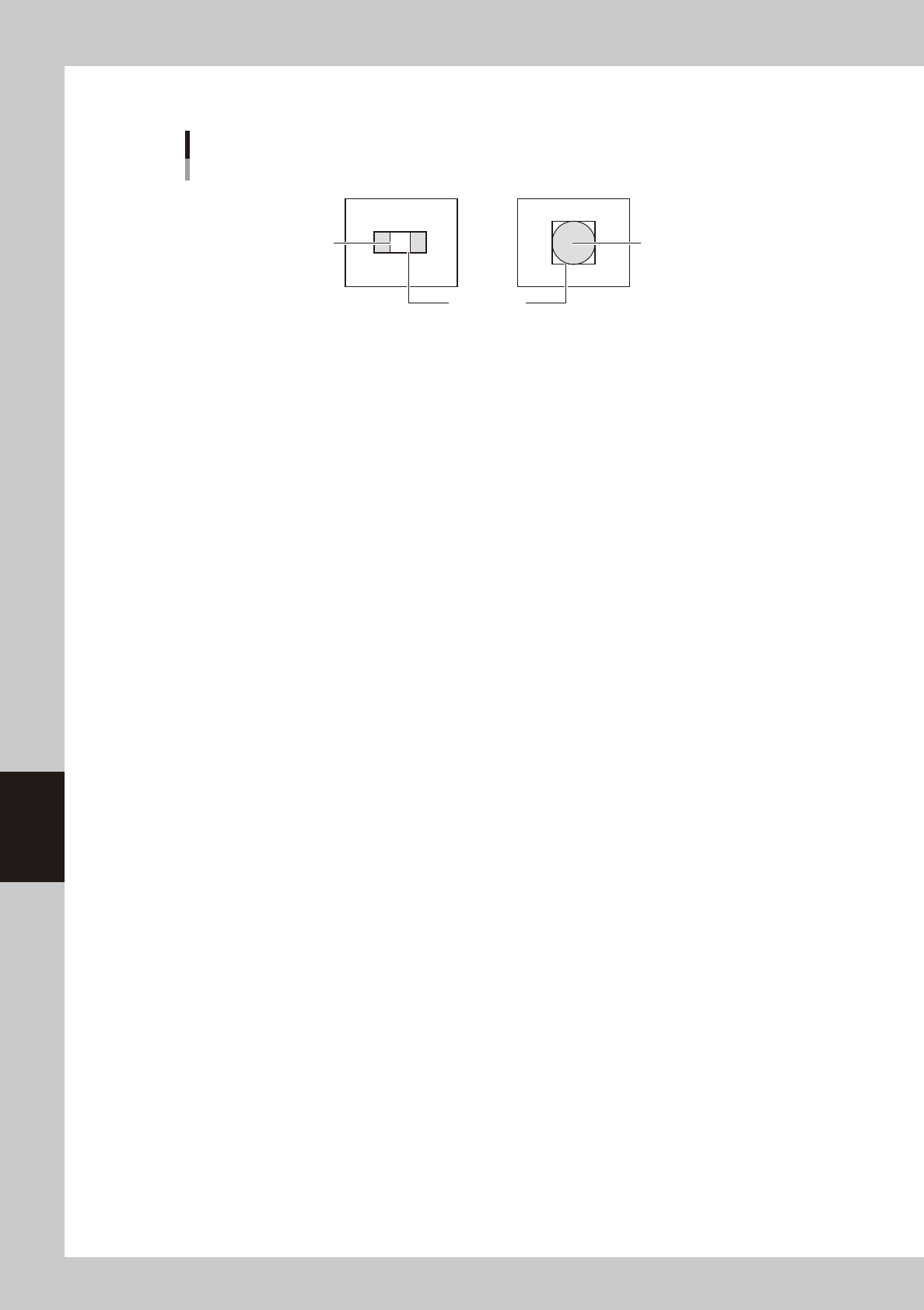

5. Adjust the teach window to enclose the pattern or mark as shown below.
Teach window size
For pattern
Teach window
For mark
Pattern Mark
63604-N7-00
8
Press the [Teach] button.
The center position coordinates of the teach window are input as the teaching position.
