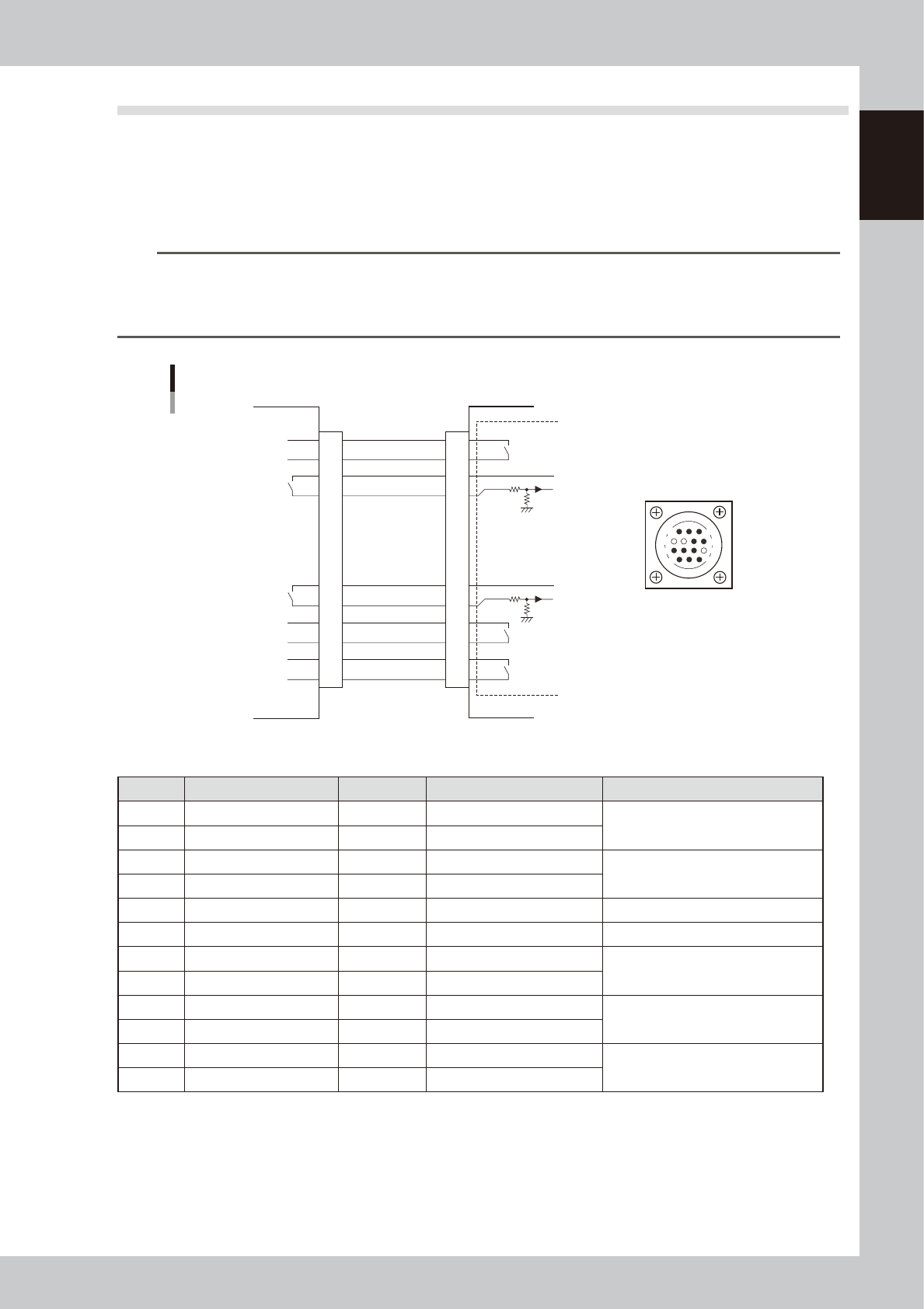

1-17 1 Part names and functions 8.1 PREVIOUS INTERF ACE connector When the following three conditions are met, the PREVIOUS INTERF A CE circuit in the machine allo ws the next board to be carried in. 1. Machine is read y…
1-16
1
Part names and functions
8. Connection between machines
The dispenser ejects the board when it receives a signal from the machine in the next process, and then
sends a signal to the machine in the preceding process to request another board. The interface connector
labeled "NEXT INTERFACE" connects to the machine in the next process, and the interface connector labeled
"PREVIOUS INTERFACE" connects to the machine in the preceding process.
These connectors are located behind the left and right panels on the rear of the machine.
PREVIOUS INTERFACE
7
12
4
8
1
14
11
3
NEXT INTERFACE
14
11
12
7
4
8
3
1
Gate signal connectors
Right-to-left flow example
Rear of machine (behind left and right panels)
63115-N7-10
c
CAUTION
· If the machine in the preceding process is a VIOS machine (YV100 II, etc.), a dedicated cable will be needed. (Refer
to the machine specifications for detailed information.)
· The “NEXT” and “PREVIOUS” connector positions are reversed in the case of left-to-right board flow.
1-17
1
Part names and functions
8.1 PREVIOUS INTERFACE connector
When the following three conditions are met, the PREVIOUS INTERFACE circuit in the machine allows the next
board to be carried in.
1. Machine is ready for carrying in a board (BUSY OUT: ON)
2. Board carry-in signal is input from the upstream machine. (BA IN [N0100321]: ON)
3. Automatic operation signal is input from the upstream machine. (UR IN [N0100322]: ON)
n
NOTE
• When the automatic operation signal (UR IN) from the loader turns off during transfer of a board, the machine
temporarily stops carrying in the board.
• When the board being carried in is detected by the entrance sensor, the BUSY OUT signal turns off.
• Carrying in the board is finished when both the BUSY OUT and BA IN turn off.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
BUSY OUT
(T01000E4)
+24V
+24V
LR OUT
(T01000E7)
UR IN
(N0100322)
BA IN
(N01000321)
Signal input during
board carry-in
Signal output to
request board
carry-out
Signal output during
automatic operation
Signal input during
automatic operation
LE OUT
(T0100031)
Signal input during
waiting for board
between machines
I/O BOARD
7
12
4
8
1
14
11
3
PREVIOUS INTERFACE circuit
PREVIOUS INTERFACE on this machineUpstream machine
PREVIOUS INTERFACE
connector
AMP 206043-1
(14-pin receptacle)
63116-N7-00
n
Board transfer signal specifications (PREVIOUS INTERFACE)
Pin No. Signal name Address I/O specifications Signal specifications
1 BUSY OUT T01000E4 Relay contact output
Signal output during board carry-in
2 BUSY OUT T01000E4 Relay contact output
3 +24V Input common (+24V)
Signal input to request board carry-out
4 BA IN N0100321 Voltage input
5 NC (with dummy pin) (Prevents misinsertion.)
6 to 8 NC
9 +24V Input common (+24V)
Signal input during automatic
operation
10 UR IN N0100322 Voltage input
11 LR OUT T01000E7 Relay contact output
Signal output during automatic
operation
12 LR OUT T01000E7 Relay contact output
13 LE OUT T0100031 Zero voltage output
Signal output during waiting for board
between machines
14 LE OUT T0100031 Zero voltage output
1-18
1
Part names and functions
8.2 NEXT INTERFACE connector
When the following three conditions are met, the NEXT INTERFACE circuit in the machine allows the board to
be carried out.
1. Machine is ready for carrying out a board (BA OUT: ON)
2. Board carry-in signal is input from the downstream machine. (BUSY IN [N0100320]: ON)
3. Automatic operation signal is input from the downstream machine. (LR IN [N0100323]: ON)
n
NOTE
• When the automatic operation signal (LR IN) from the downstream machine turns off during transfer of a board,
the machine stops temporarily carrying out the PC.
• When the board being carried out is detected by the exit sensor, the BA OUT signal turns off.
• Carrying out the board is finished when both the BUSY IN and BA OUT turn off.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
BUSY IN
(N0100320)
+24V
+24V
UR OUT(T01000E6)
LR IN
(N0100323)
+24V
LE IM
(N0100324)
BA OUT
(T01000E5)
Signal output during
board carry-in
Signal input to request
board carry-out
Signal input during
automatic operation
Signal output during
automatic operation
Signal output during
waiting for board
between machines
I/O BOARD
GND GND
14
11
12
7
4
8
3
1
NEXT INTERFACE circuit
NEXT INTERFACE
connector
NEXT INTERFACE on this machine
Downstream machine
AMP 206043-1
(14-pin receptacle)
63117-N7-00
n
Board transfer signal specifications (NEXT INTERFACE)
Pin No. Signal name Address I/O specifications Signal specifications
1 +24V Input common (+24V)
Signal input during board carry-in
2 BUSY IN N0100320 Voltage input
3 BA OUT T01000E5 Relay contact output
Signal output to request board carry-out
4 BA OUT T01000E5 Relay contact output
5 NC
6 NC (with dummy pin) (Prevents misinsertion.)
7
8 NC
9 UR OUT T01000E6 Relay contact output
Signal output during automatic
operation
10 UR OUT T01000E6 Relay contact output
11 +24V Input common (+24V)
Signal input during automatic
operation
12 LR IN N0100323 Voltage input
13 +24V Input common (+24V)
Signal input during waiting for board
between machines
14 LE IN N0100324 Voltage input
