Page
SAMSUNG TECHWIN
34
SM471

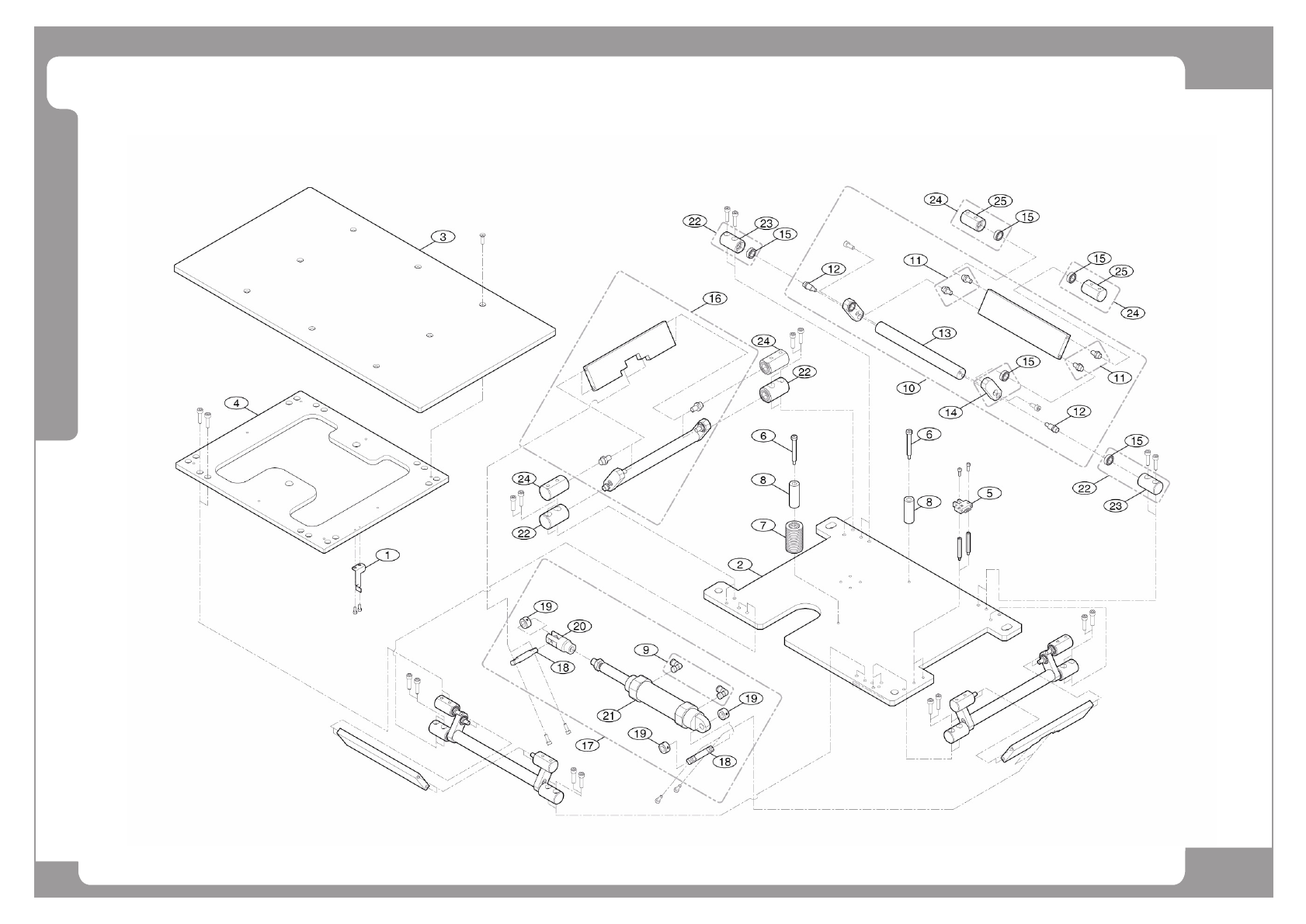

Backup Table Ass’y
Page
SAMSUNG TECHWIN
35
SM471
Backup Table Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70531054A BUT_SENSOR_DOG J70531054A 1
2 J70531052C LOWER_PLATE 1 J70531052B
3 J70531051C BACK_UP_PLATE 1 J70531051B
4 J70531053C UPPER_PLATE 1 J70531053B
5 J3212002A PHOTO SENSOR 1
6 J6015064000 SHOULDER SCREW[MSB6-40] 2
7 J6107047A SPRING[SWU26-70] 1
8 J6308003A URETHAN CUSHION[AXNSK15-40] 1
9 J6711028A ELBOW FITTING [KQ2L04-01] 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN[J7053792A] 4
12 J7053793A LOWER LINK PIN[J7053793A] 2
13 J7053796A LOWER LINK SHAFT[J7053796A] 1
14 J70530797B LOWER LINK END 1 J7053797A
15 J6601005A BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER[J7053795A] 3
20 J6619062A CYLINDER JOINT[Y-032B] 1
21 J67010088B CYLINDER CM2C32-50-XC3BB 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER[J7053790A] 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER[J7053791A] 1
Page
SAMSUNG TECHWIN
36
SM471

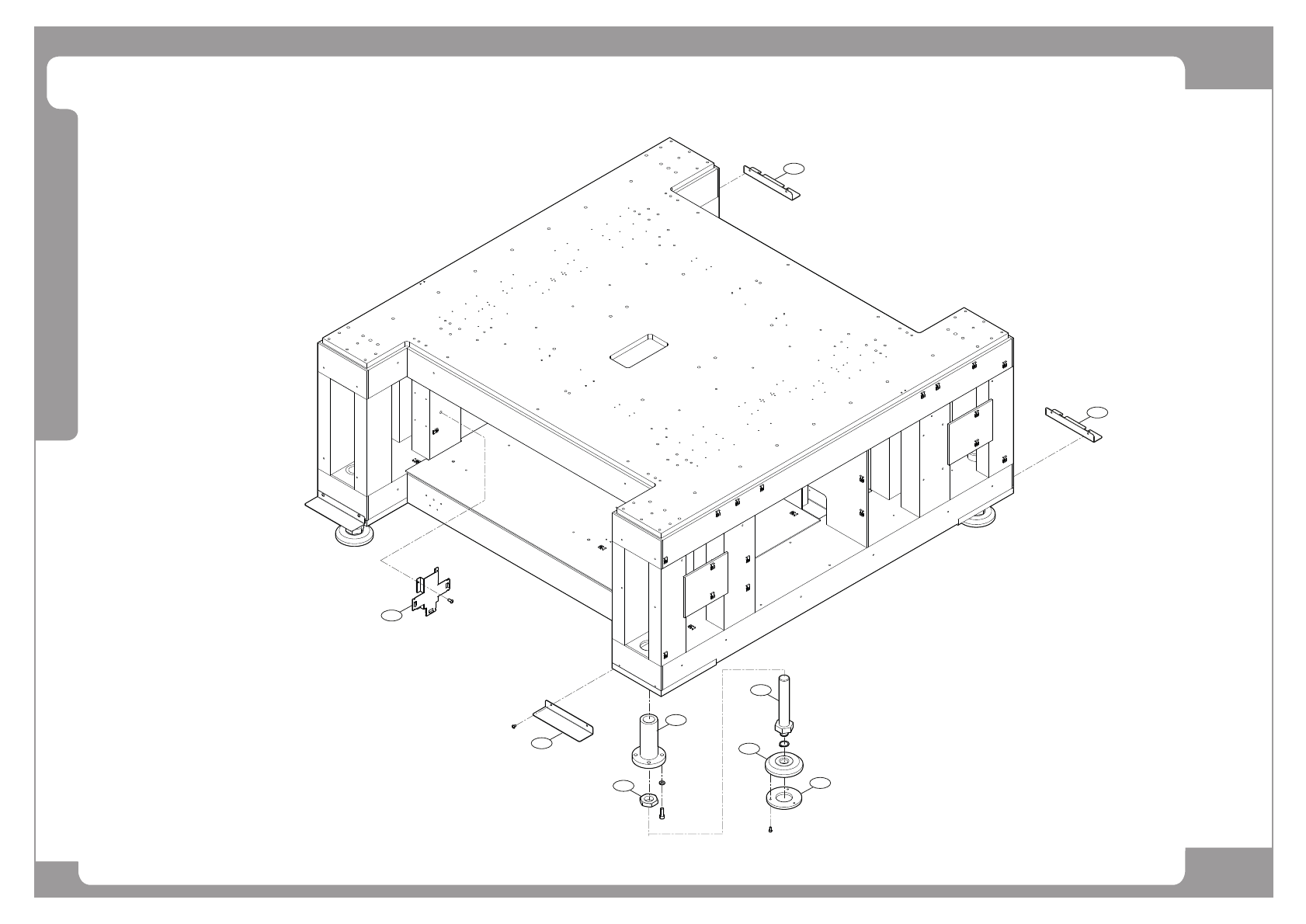

Base Frame Ass’y
1
2
9
3
4
6
7
8
5
