Page SAMSUNG TECHWIN 73 SM471 X-Y Frame Ass’y (3/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J66061002 A Y -BALL_SCREW SB K2030ZS-3.4 GT+956LC5 -B 2 2 J70541006C BS_REAR_SUPPORT 2 3 …
Page
SAMSUNG TECHWIN
72
SM471

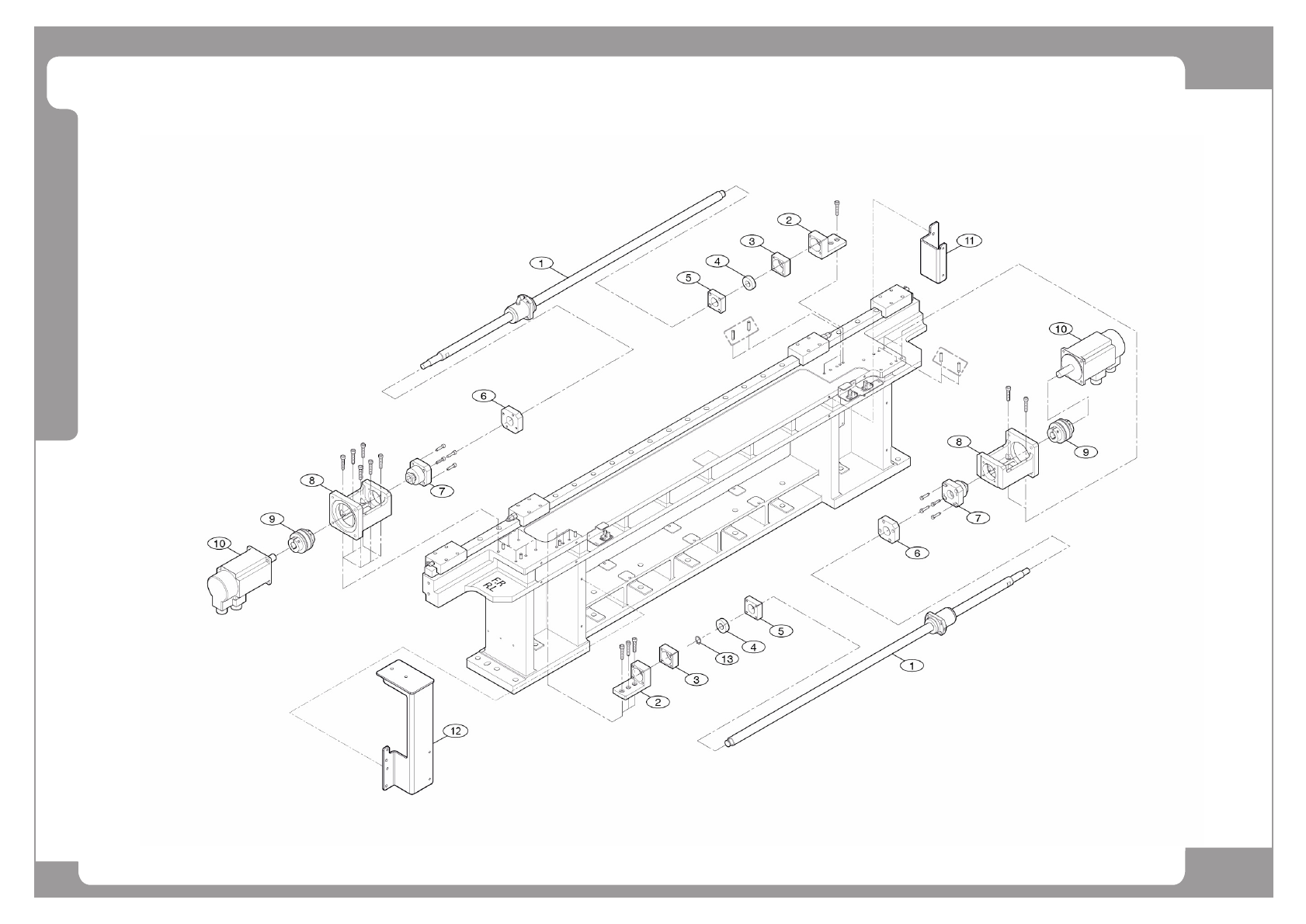

X-Y Frame Ass’y (3/4)
Page
SAMSUNG TECHWIN
73
SM471
X-Y Frame Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J66061002A Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 2
2 J70541006C BS_REAR_SUPPORT 2
3 J70541030A BRG_HOUSING_Y J70541030A 2
4 J6601020A BALL BEARING 2
5 FC29-001076A STOPPER-STOPPER Y BS REAR 411PS 2
6 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 2
7 J6601124A SUPPORT UNIT[FK-15] 2
8 FC07-000386A Y_MOTOR_BLOCK 2 J70541005C
9 J6612036A COUPLING[SFC 050DA 12B-19B(TYPE A)] 4
10 EP08-000139 SERVO_MOTOR MSMA102G2C 4 J31081056A
11 J70541366A SIDE_COVER_BKT-2 J70541366A 1
12 FC09-001720A BRACKET-SIDE COVER 1 1
13 J1300419 C-RING (SHAFT) [DIA15] 1
Page
SAMSUNG TECHWIN
74
SM471

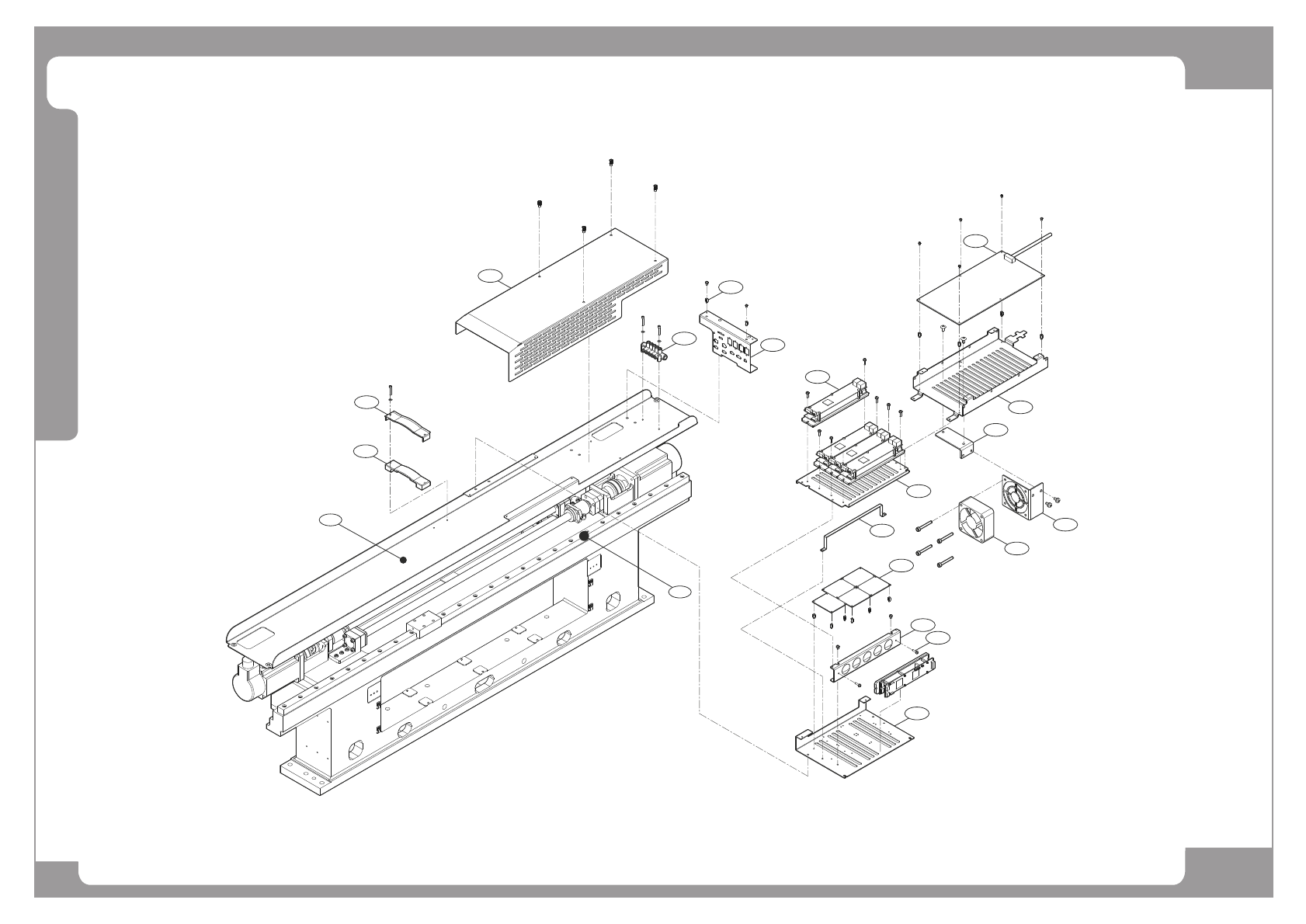

X-Y Frame Ass’y (4/4)
6
7
8
11
12
13
1
10
3
2
4
5
9
14
15
16
17
19
18
20
