Placement head C&P20M
Page 12 / 17 22.11.2021
Placement head C&P20M
Page 13 / 17 22.11.2021
Pos. Item no. Description Part marking
1 03107086-01 PLACEMENT HEAD CP20M/ W/
CAMERA SST41
2 03116633S01 CO CAMERA C+P (TYPE 41) 6X6
GIGE C-MOS
SPARE PART
13 03103108S01 PLACEMENT HEAD C+P20M/
WITHOUT CAMERA
Spare Part
14 03075404S01 LABEL - PERMISSIBLE TORQUE FHE *
15 03083001S01 CO SENSOR / C+P20A SPARE PART
16 03077349S01 FLEX FIXING COMPL. / C+P20A SPARE PART
17 03077829-01 MAGNETIC RECORDING / C+P20A SPARE PART
18 00349527-01 ROUND MAGNET 3X4 NEODYMIUM SPARE PART
19 00317167-01 DIN 125-A 1,7-140HV-A2 STANDARD PARTS
20 03044996-01 DIN912-M1,6 X 3-A2-70
21 03043114-01 ISO 4762 - M 3 X 35-A2-70 STANDARD PARTS
22 03077368-01 COVERFLEX COMPL. / C+P20A SPARE PART
23 03077346S01 BOTTOM COVER COMPL. / C+P20A SPARE PART
24 03042523-01 ISO 4762 - M 2 X 4-A2-70
25 03076093S01 RETAINING PLATE, ROUND CABLE
VHS
SPARE PART
26 03072791S01 RETAINING PLATE FHE C+P20
COMPL.
SPARE PART
27 03072762-01 RETAINING PLATE FHE C+P20
28 03072162-01 RETAINING PLATE C+P20
29 00359779-01 DIN 6325 - 3M6 X 10-ST
30 03051598-01 DIN 6912-M3 X 6-A2-70 Spare Part
31 00329135-01 DIN912-M3 X 14-A2-70
32 03075413-01 BRACKET DRVALVE COMPL. FHE /
CP20A
33 03075277-01 BRACKET HOSE VALVE FHE / CP20A SPARE PART
34 03053212-01 CONNECTION QSMT-6-4 STANDARD PARTS
35 03008362-02 BEARING SUPPORT/ C+P SPARE PART
36 03075441-01 HOSE VALVE FHE/ CP20A
03055411S01 PLASTIC TUBE PUN-CM-6-SW
ANTISTAT. (1M)
SPARE PART
38 03075522-01 HOSE/ RETURN CYLINDER
FHE/CP20A
00359177S01 HOSE 4*2,5 PUN-CM-4 (PLACEMENT
HEAD)
SPARE PART
Placement head C&P20M
Page 14 / 17 22.11.2021
Pos. Item no. Description Part marking
40 00308108-01 DIN912-M2,5 X 8-A2-70
41 00333930-01 DIN 433 -3.2-140HV-A2
42 03074452-01 BOLT RETAINING DEVICE FHE /
CP20A
SPARE PART
43 03073214-01 CENTERING DEVICE FHE / CP20A SPARE PART
44 03075844-01 PLACEMENTHEAD HOUSING FHE
COMPL./ C+P20A
45 03075045-01 PLACEMENTHEAD HOUSING FHE
ASSEM./ C+P20A
46 03072651-01 APPLICATION TOP / CP20A
47 03072617-01 APPLICATION DOWN / CP20A
48 03069903-01 RETAINING ELEMENT LO / CP20A SPARE PART
49 03069771-01 RETAINING ELEMENT LU / CP20A SPARE PART
50 03069709-01 RETAINING ELEMENT RO / CP20A SPARE PART
51 03069898-01 RETAINING ELEMENT RU / CP20A SPARE PART
52 00358759-01 DIN912-M1,6 X 6-A2-70
53 00303338-01 DIN 6325 - 1,5M5 X 5-ST
54 03058631S05 Z-DRIVE COMPL. / C+P20A SPARE PART
55 03090604S02 Z-DRIVE C+P20A *
56 03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
57 03010313S01 MECHANICAL Z-AXIS GUIDE/C+P20 SPARE PART
58 03008152-01 COVER PLATE, Z-FLEXPRINT C+P20 SPARE PART
59 03010468-01 DIN 84-M1 X 8-A2
60 03042515-01 ISO 4762 - M 1,6 X 4-A2-70 STANDARD PARTS
61 03042517-01 ISO 4762 - M 1,6 X 6-A2-70 STANDARD PARTS
62 03042518-01 ISO 4762 - M 1,6 X 8-A2-70 STANDARD PARTS
63 03042524-01 ISO 4762 - M 2 X 5-A2-70 STANDARD PARTS
64 03010197-01 ISO 7045 - M2 X 4-A2-50-H STANDARD PARTS
65 03058811-02 STAR COMPL./C+P20A
66 03149490S02 DP DRIVE-C+P20M SPARE PART
67 03037845S01 STAR CARRIER CPL./C+P20 SPARE PART

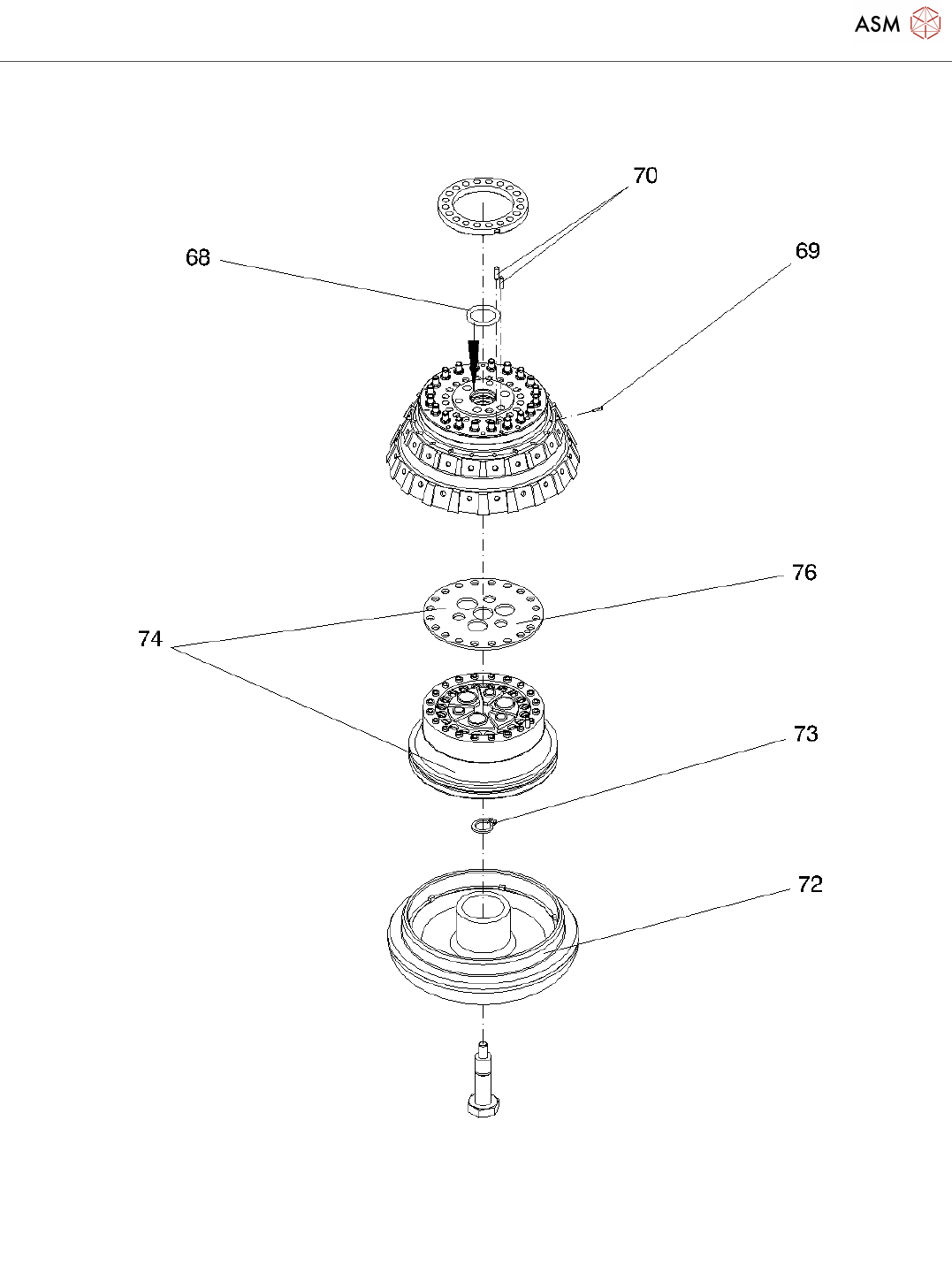

68 03031512S01 O-RING 9X1.5 WEAR PART
69 00300074-01 DIN 6325 - 1M5 X 4-ST Spare Part
70 00303338-01 DIN 6325 - 1,5M5 X 5-ST
71 03005123S02 HOLD-CIRCUIT COMPLETE/C+P20 SPARE PART
72 03043707-02 SOUNS ABSORBER COMPLETE / WEAR PART
