高斯计MP系列规格书.pdf
LIS T -MA GNETIK www .list-magnetik.com MA GNE TIC FIELD ME TER S / PERMEABILI TY ME TER S P erformance table and tec hnical Data MP -40 0 0 · MP -81 0 · MP -80 · MP -1 0 0 0
LIST-MAGNETIK
www.list-magnetik.com
MAGNETIC FIELD METERS /
PERMEABILITY METERS
Performance table and technical Data

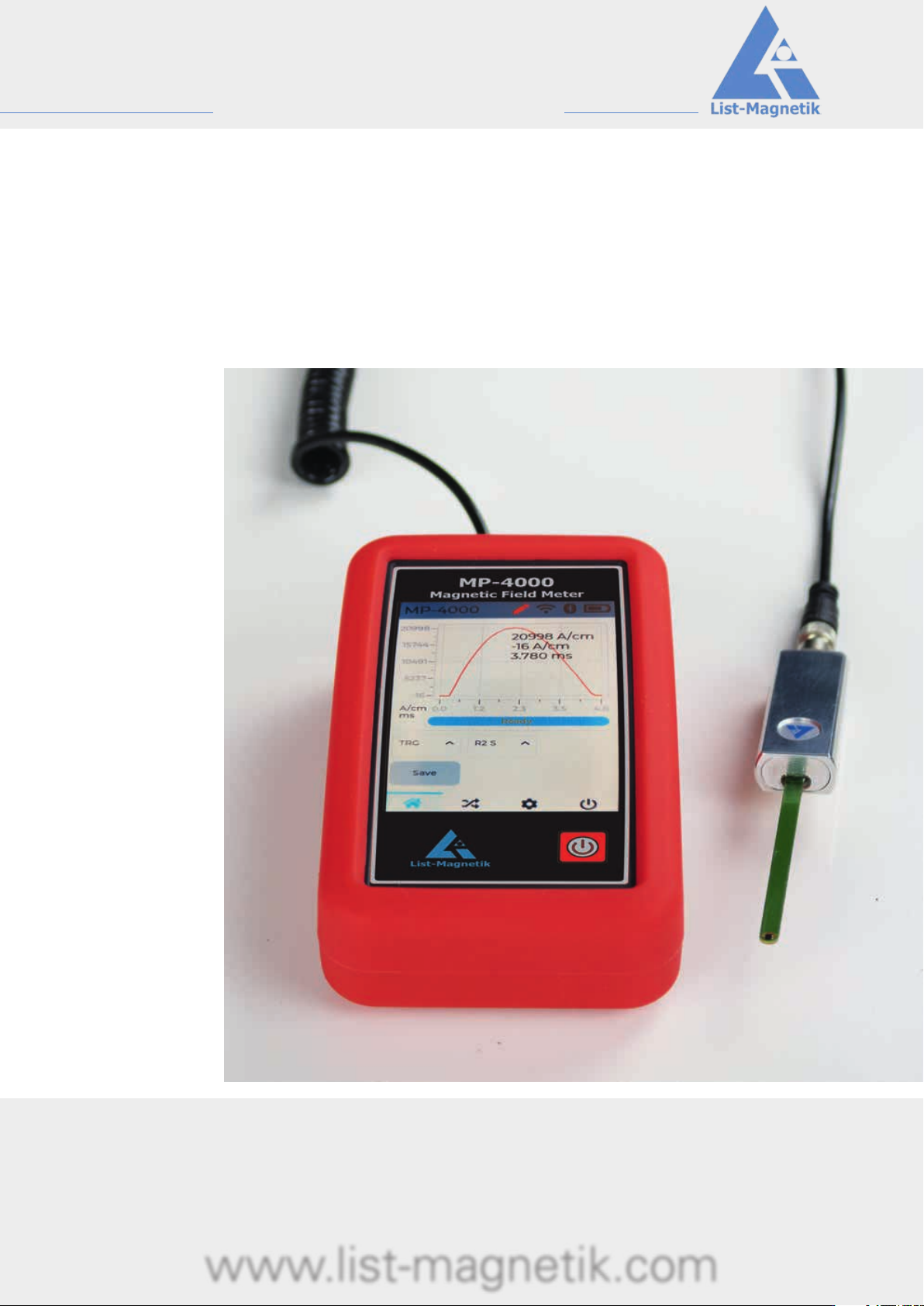

MP-4000 · MP-810 · MP-80 · MP-1000
2
LIST-MAGNETIK

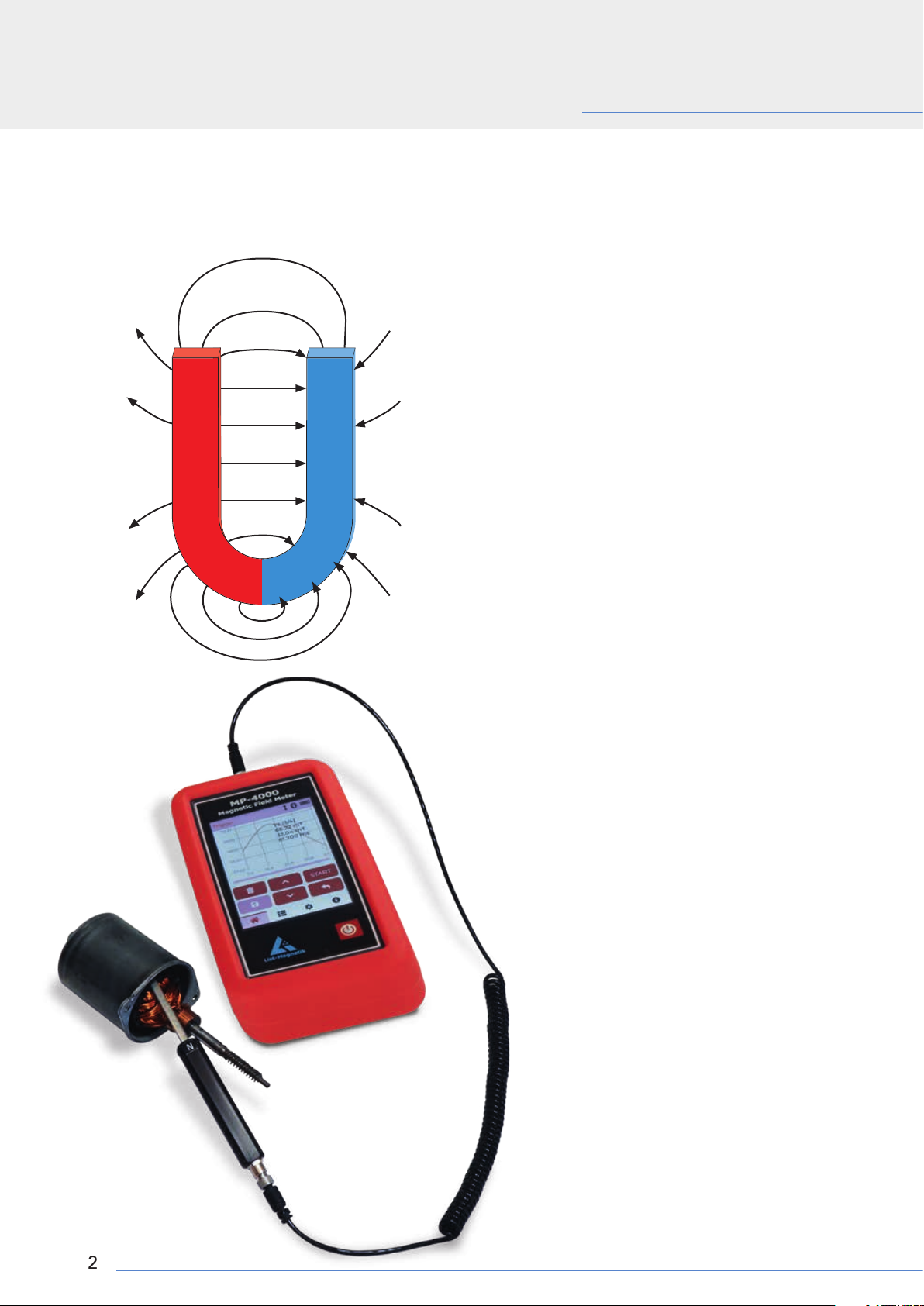

Magnetic fields are invisible. The magnetism
of a workpiece can only be recognized by the
effect on other steel parts or chips. Often,
however, residual magnetism is an undesirable
effect, and that is why it is increasingly the
subject of quality audits. Magnetism is also
an important component of mechanical engi
-
neering. Without a magnet, there is no electric
motor. The functionality of a magnetic switch
depends on the strength of the actual magnet.
For the magnetization of ferrite or neodymium
materials, strong magnetic fields are required,
which must be dynamically measurable
during generation.
Our company name, ’’List-Magnetik’’, speaks
for itself. For decades, magnetization and
magnetic field measurements have been our
core competences. Behind all of our customer-
specific magnetizing systems, demagnetizing
devices and the serial production of magnetic
measuring devices, are our many years of
comprehensive experience and well-founded
know-how. Our measuring instruments
recognize both magnetic fields with the
minimum strength of the earth’s magnetic
field, as well as strong pulse fields, which
enables us to meet all of your application
requirements. We offer technically advanced
solutions “Made in Germany”, from the small
hand-held compact device to the analog
display on the oscilloscope, Special equipment
such as flux meters and permeability
measuring devices complete our range of
services.
INFORMATION
Magnetic Field Measuring
3
LIST-MAGNETIK

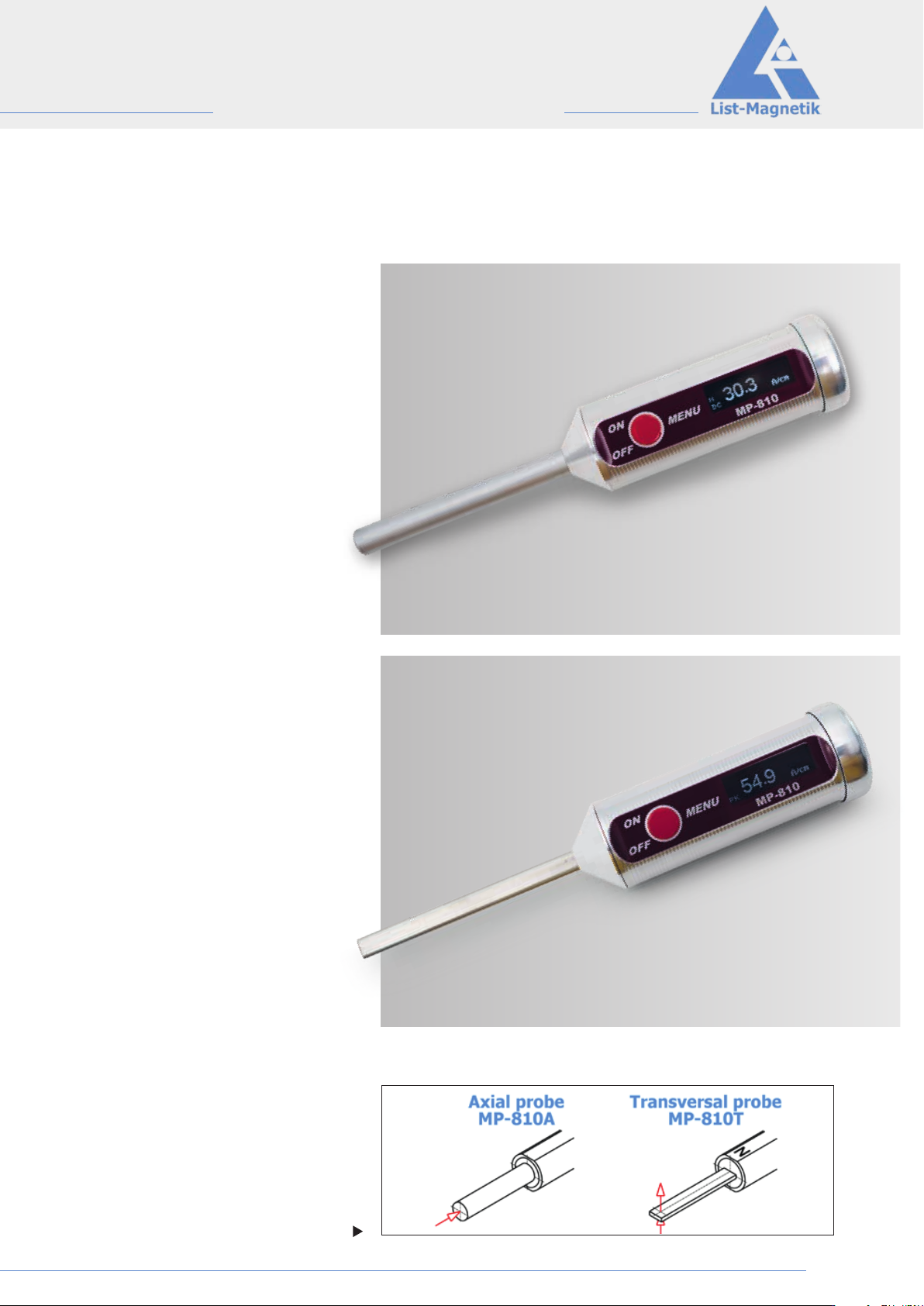

MP-810
Magnetic Field Meter
INFORMATION
Magnetic Field Measuring
The smallest and most attractive magnetic
field meter
The addition to our series of precise mag-
netic field measurement devices: The small,
compact and attractive hand instrument
List-Magnetik MP-810 is easy to operate and
comfortable to use.
To measure accurately all kinds of magnetic
fields: AC fields, DC fields and maximum
values in impulse fields.
The measurement ranges and different units
A/cm, kA/m, Gauss/Oersted, Tesla fulfill every
requirement .
Magnetic field measurement in new design
MP-810 is available
with fixed axial probe (MP810 A)
or with tangential probe (MP810 T)
The axial field probe measures the field in
direction of the probe axis in precise distance
of 2 mm. It is suitable for measurement on
plain surfaces, or specifically in drilled holes.
The tangential field probe measures in 90
degree angle to the probe axis particularly in
air gaps, cavities and on the surface of work-
pieces, suitable for crack detection.
Measuring directions with axial
and transversal probe
MP-810 A axial
MP-810 T transversal
