Retrofitting Instructions SIPLACE Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50
02/2003 Edition 2.6 Installing the Head PCB, Modular
59
HS-50/S-23/S-25 HM/F5 HM
Å Use the Figures in Section 2.7 for the allocation of the connectors on the Vision Board.
Å ,QFDVHRI3&%FDPHUDZLWKQRUPDOLOOXPLQDWLRQDQGSRVVLEOHRSWLRQREOLTXHLOOXPLQD
WLRQ
Å Run the pertinent cable "Camera" and "illumination" in the area of the head PCB strictly as
shown in the following illustrations and appropriately adjust the cable guideway for oblique
illumination (not explicitly defined).
- for S-25 HM, S-23, F5 HM -> in Fig. 2.6.7 -> Pos. no. 3 and 1,
- for HS-50 -> in Fig. 2.6.10 -> Pos. no. 3 and 1.
Å Connect the following cables to the pertinent 9LVLRQERDUGPRGXODU:
- cable "Component camera" to X3.
- cable "Camera" of the PCB camera with normal illumination to X4,
- where available, optional oblique illumination to X5,
- cable "illumination" (normal illumination) to plug-in connection X (= PCB illumina-
tion, old)
(= in this case there is a difference compared to the cable "illumination" of the PCB
camera Multicolor)
Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50 Retrofitting Instructions SIPLACE
2.6 Installing the Head PCB, Modular 02/2003 Edition
60
Å ,QFDVHRILQVWDOOHG3&%FDPHUD0XOWLFRORU
Å Run the pertinent cable "Camera" and "illumination" of the PCB camera Multicolor in the
vicinity of the head PCB as shown in the following illustrations:
- for S-25 HM, S-23, F5 HM -> in Fig. 2.6.7 -> Pos. no. 3 and 1,
- for HS-50 -> in Fig. 2.6.10 -> Pos. no. 3 and 1.
NOTE:
All of the cable run for the PCB camera Modular is described in the retrofitting instructions for
Multicolor.
Å Connect the following cables to the pertinent Vision board, modular, and to the PCB board,
modular:
- Cable "Component camera" to X3 on the Vision board, modular,
- Cable "Camera" of the PCB camera Multicolor to X4
- Cable "illumination" of the PCB camera Multicolor to Xof the3&%ERDUGPRGXODU
(= in contrast illumination cable of the PCB camera with normal illumination)

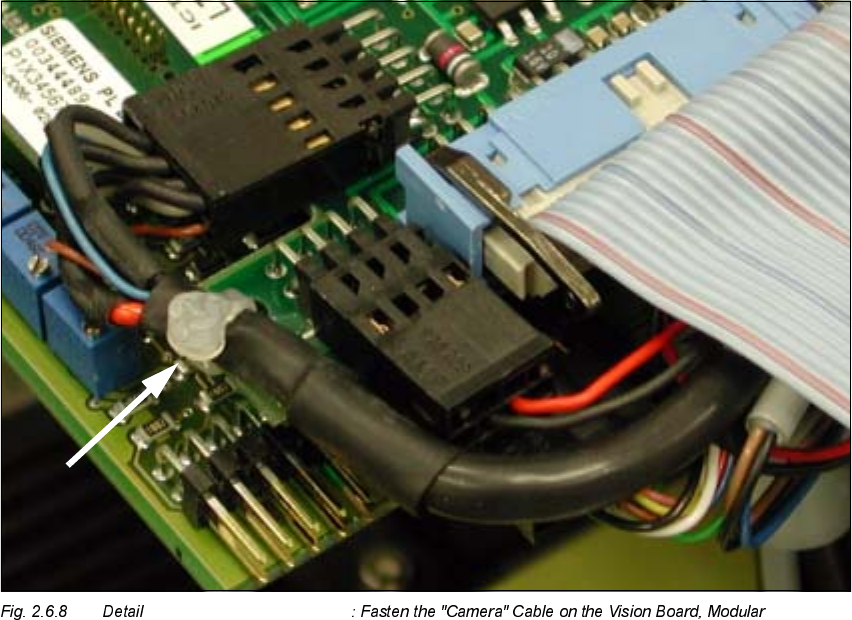

Å Use cable ties to fasten each of the cables "Camera" in the hole of the "Vision board, modular",
as shown in the detail Fig. 2.6.8.
Å Plug in the 3 small ribbon cable connectors of the adjustment units and all of the remaining
connectors.
Å 8VHWKHQHZULEERQFDEOHVIURPWKHSHUWLQHQWUHWURILWNLWVHH6HFWLRQDQG6HFWLRQ

Å The ribbon cables for S-23, S-25 HM and F5 HM are identical.
Å Run the ribbon cables in 6WHSVDQGand plug in the pertinent connectors as shown in
the following illustrations:
- for S-25HM, S-23, F5 HM -> in Fig. 2.6.7 and Fig. 2.6.9 and
- for HS-50 -> in Fig. 2.6.10 and Fig. 2.6.11.
Å :KLOHGRLQJVRQRWHLQWKHGHWDLOIRU)+066+0
Å During the 1st step, run the bottom-most, broad ribbon cable.
Note the allocation "top/bottom" relative to the connector (see Fig. 2.6.7).
Å Fold the repeatedly "folded" (preshaped), narrower ribbon cable down so that it is IODWon
the broad cable: see Fig. 2.6.7 -> 7.
Retrofitting Instructions SIPLACE Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50
02/2003 Edition 2.6 Installing the Head PCB, Modular
61
Å During the 2nd step, fold the top-most, wide ribbon cable down and plug the cable onto the
PCB (see Fig. 2.6.9 -> 1).
Å On F5 HM make the plug-in connections of the Pick & Place head on the PCB again.
Å :KLOHGRLQJVRQRWHLQWKHGHWDLOIRU+6
Å Run the narrower, new ribbon cable first (see Fig. 2.6.10).
Å Fold it down so that it is flat and in contact
Å Run the two new, wide ribbon cables over it (see Fig. 2.6.11).
Å In conclusion, on all PCBs push the ribbon cable fixing clips into the position shown in each
case (see Fig. 2.6.9 -> 2 or Fig. 2.6.11 -> 2).
Å 0DNHFHUWDLQWKDWDOOFRQQHFWRUVDUHSOXJJHGLQVHFXUHO\

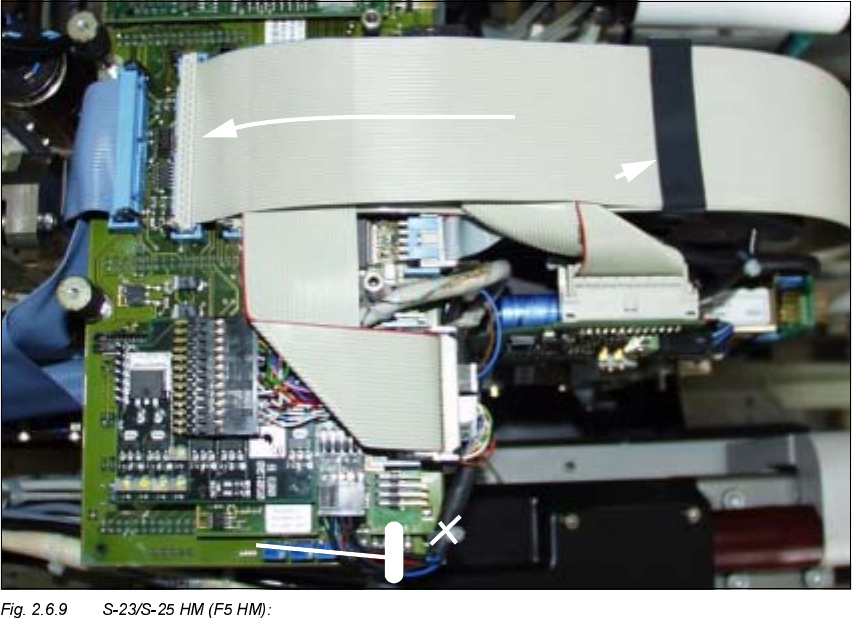

2nd Step while Laying Cable in the Area of the Head PCB
.H\
1. Package of ribbon cables, after running completed and cables connected (F5 HM analogous)
2. Position of the ribbon cable clips
3. Detail of the updated representation of fastening the cable "Camera" -> see Fig. 2.6.8.
