Retrofitting Instr uctions SIP LACE Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50 02/2003 Edition 2.6 Installing the Head PCB, Modular 61 Å Dur ing the 2n d step, fold the t op-most, wide ribb on cable d own and p lug …
Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50 Retrofitting Instructions SIPLACE
2.6 Installing the Head PCB, Modular 02/2003 Edition
60
Å ,QFDVHRILQVWDOOHG3&%FDPHUD0XOWLFRORU
Å Run the pertinent cable "Camera" and "illumination" of the PCB camera Multicolor in the
vicinity of the head PCB as shown in the following illustrations:
- for S-25 HM, S-23, F5 HM -> in Fig. 2.6.7 -> Pos. no. 3 and 1,
- for HS-50 -> in Fig. 2.6.10 -> Pos. no. 3 and 1.
NOTE:
All of the cable run for the PCB camera Modular is described in the retrofitting instructions for
Multicolor.
Å Connect the following cables to the pertinent Vision board, modular, and to the PCB board,
modular:
- Cable "Component camera" to X3 on the Vision board, modular,
- Cable "Camera" of the PCB camera Multicolor to X4
- Cable "illumination" of the PCB camera Multicolor to Xof the3&%ERDUGPRGXODU
(= in contrast illumination cable of the PCB camera with normal illumination)
Å Use cable ties to fasten each of the cables "Camera" in the hole of the "Vision board, modular",
as shown in the detail Fig. 2.6.8.
Å Plug in the 3 small ribbon cable connectors of the adjustment units and all of the remaining
connectors.
Å 8VHWKHQHZULEERQFDEOHVIURPWKHSHUWLQHQWUHWURILWNLWVHH6HFWLRQDQG6HFWLRQ
Å The ribbon cables for S-23, S-25 HM and F5 HM are identical.
Å Run the ribbon cables in 6WHSVDQGand plug in the pertinent connectors as shown in
the following illustrations:
- for S-25HM, S-23, F5 HM -> in Fig. 2.6.7 and Fig. 2.6.9 and
- for HS-50 -> in Fig. 2.6.10 and Fig. 2.6.11.
Å :KLOHGRLQJVRQRWHLQWKHGHWDLOIRU)+066+0
Å During the 1st step, run the bottom-most, broad ribbon cable.
Note the allocation "top/bottom" relative to the connector (see Fig. 2.6.7).
Å Fold the repeatedly "folded" (preshaped), narrower ribbon cable down so that it is IODWon
the broad cable: see Fig. 2.6.7 -> 7.
Retrofitting Instructions SIPLACE Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50
02/2003 Edition 2.6 Installing the Head PCB, Modular
61
Å During the 2nd step, fold the top-most, wide ribbon cable down and plug the cable onto the
PCB (see Fig. 2.6.9 -> 1).
Å On F5 HM make the plug-in connections of the Pick & Place head on the PCB again.
Å :KLOHGRLQJVRQRWHLQWKHGHWDLOIRU+6

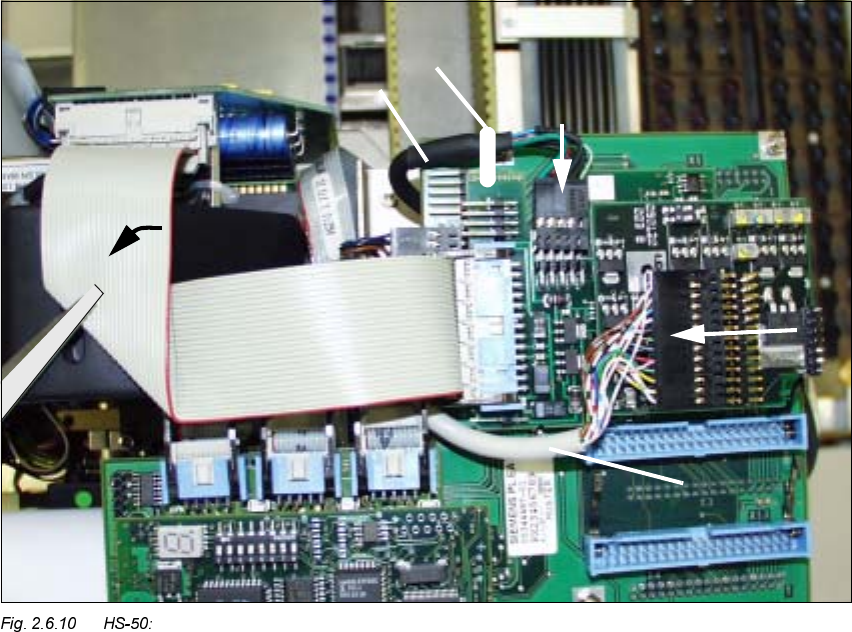

Å Run the narrower, new ribbon cable first (see Fig. 2.6.10).
Å Fold it down so that it is flat and in contact
Å Run the two new, wide ribbon cables over it (see Fig. 2.6.11).
Å In conclusion, on all PCBs push the ribbon cable fixing clips into the position shown in each
case (see Fig. 2.6.9 -> 2 or Fig. 2.6.11 -> 2).
Å 0DNHFHUWDLQWKDWDOOFRQQHFWRUVDUHSOXJJHGLQVHFXUHO\
2nd Step while Laying Cable in the Area of the Head PCB
.H\
1. Package of ribbon cables, after running completed and cables connected (F5 HM analogous)
2. Position of the ribbon cable clips
3. Detail of the updated representation of fastening the cable "Camera" -> see Fig. 2.6.8.
Modular Head PCB on S-23, S-25 HM, F5 HM, HS-50 Retrofitting Instructions SIPLACE
2.6 Installing the Head PCB, Modular 02/2003 Edition
62
1st Step while Laying Cable in the Area of the Head PCB
.H\
1. Cable "Illumination" (PCB Camera Multicolor)
2. Cable "Illumination" (Multicolor) -> Plug-in connector X3 (PCB camera board, modular)
(NOTE: Cable "Illumination" of PCB camera with normal illumination on X -> see Fig. 2.7.2)
3. Cable "Camera" (LP-Kamera: Multicolor or normal illumination)
4. Cable "Camera" (Multicolor or normal illumination) -> Plug-in connector X4 (PCB camera
board, modular))
5. Cable tie: To fasten the cable "Camera" on the Vision board, modular *)
6. Preshaped ribbon cable, 1x folded, Item no. 00351523-01
(= new cable, contained in the retrofit kit "head PCB HS-50, modular")
-> all plug-in connections on the Vision board, modular -> see Figures in Section 2.7
5HIHUWR)LJIRUWKHFXUUHQWUHSUHVHQWDWLRQRIIDVWHQLQJWKHFDEOH&DPHUD
