PRINTER PREPARATION GENERAL Chapter Issue 15, May 20 Installation Manual 4.3 Grease Protection Before the printer was packaged, some areas wit hin the printer were coated with LM grease or multi-purpose oil to protect th…
PRINTER PREPARATION
GENERAL
4.2 Installation Manual Chapter Issue 15, May 20

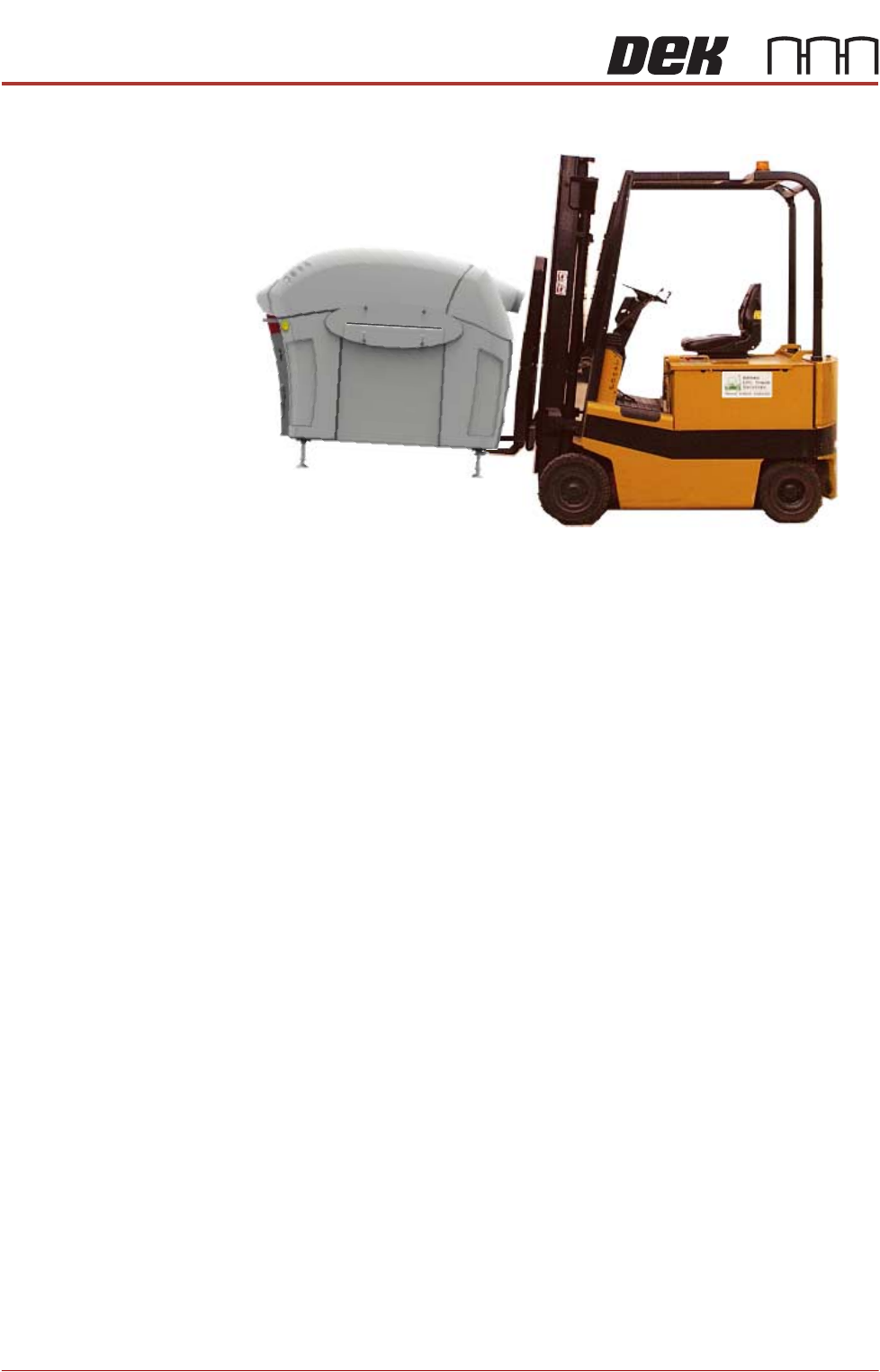

1. Locate the forks under the printer base.
2. Raise the forks, separating the printer from the base of the transportation
box.
3. For printers with the anti-vibration mounting option, four leg spacers and one
standard foot is supplied. Ensure the correct number of leg spacers are fitted
to the four corners of the printer when it is located into the production line.30
4. Move the printer to its designated position.
PRINTER PREPARATION
GENERAL
Chapter Issue 15, May 20 Installation Manual 4.3
Grease Protection Before the printer was packaged, some areas within the printer were coated
with LM grease or multi-purpose oil to protect the metal surfaces from corroding
during transportation.
Using a lint free cloth, remove any surplus grease from the following areas,
ensuring that a light coating remains:
• Print carriage linear bearing guides (above the printheads)
• Camera linear bearing guides (below the printheads)
• Rear moving rail linear bearing guides (either side of the rising table)
• Top face of both clatter bars (either side of the rising table)
• Actuator striker plates (in 3 positions)

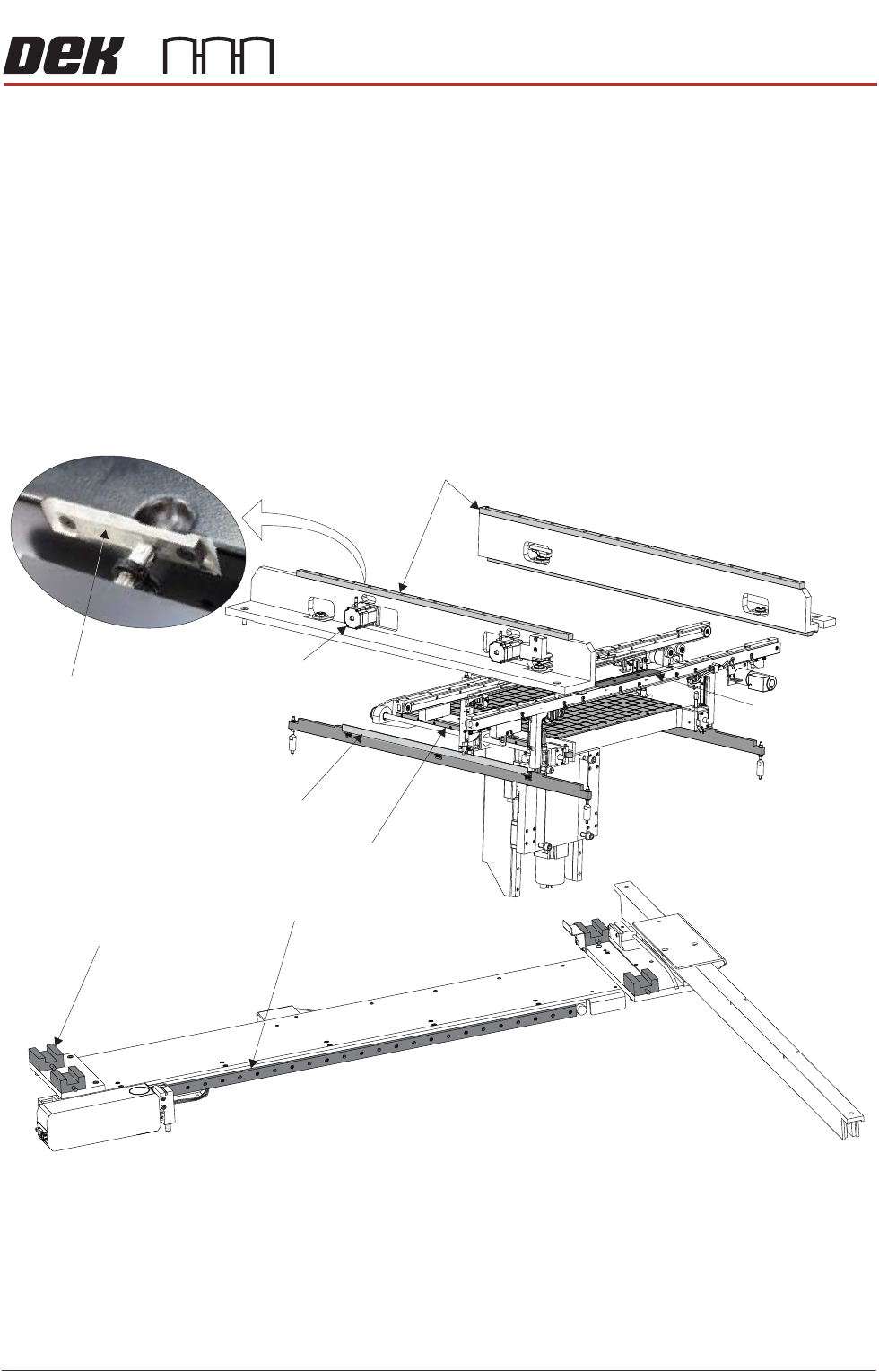

Figure 4-1 Grease Protection
Print Carriage Linear Bearing Guides
Moving Rail Linear Bearing Guide (in 2 positions)
Clatter Bar (in 2 positions)
Board Clamp
(in 2 positions)
Camera Linear Bearing GuideX
Camera Linear Bearing GuideY
(4 Positions)
Actuator (in 3 positions)
Actuator Striker Plate
(in 3 positions)
PRINTER PREPARATION
GENERAL
4.4 Installation Manual Chapter Issue 15, May 20
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
The front and rear board clamp foils, where fitted, are greased for protection
during transportation. This grease protection must to be removed completely
using a lint free cloth.
ASM Chase The front and rear guide bars are coated with multi-purpose oil for
transportation. Using a lint free cloth, thoroughly wipe the bars to remove the oil
completely.

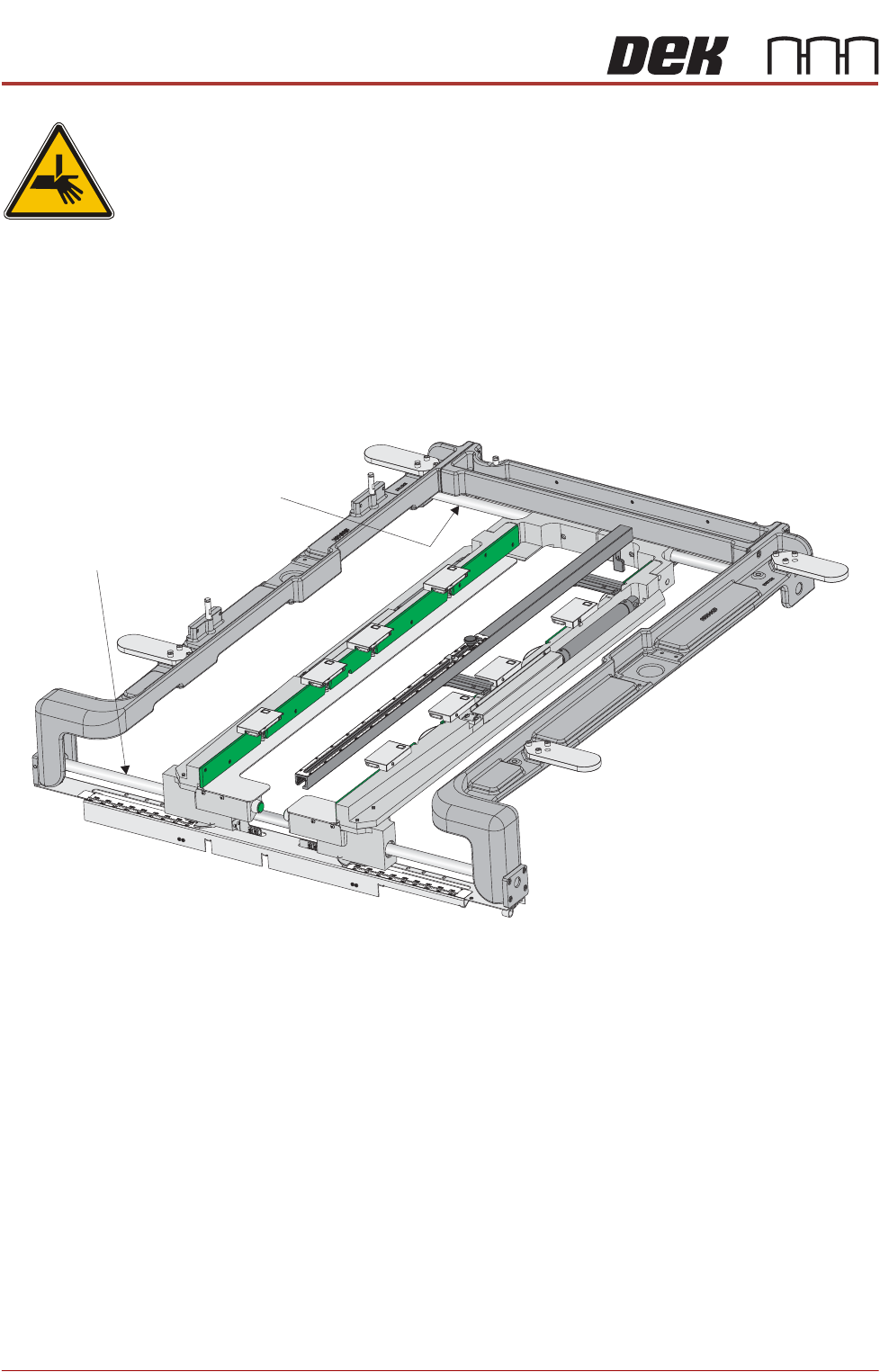

Figure 4-2 Grease Protection - ASM
Front Guide Bar
Rear Guide Bar
