PRINTER PREPARATION TRANSIT BRACKETS AND SCREWS REMOVAL Chapter Issue 15, May 20 Installation Manual 4.7 7. Loosen the transit adjustment screw lo ck nut (15) on the rear chase transit bracket (12). Figure 4-4 Rear Chase…

PRINTER PREPARATION

TRANSIT BRACKETS AND SCREWS REMOVAL

4.6 Installation Manual Chapter Issue 15, May 20

Figure 4-3 Front and Rear Transit Brackets

NOTE

Item 5, the Left Chase Transit Bracket is fitted upside down on dual lane

printers.

Item Description Item Description

1 M8 Chase Stud 6 Transit Adjustment Screw Lock Nut

2 Front/Rear Transit Bracket 7 Transit Adjustment Screw

3 M8 Nut 8 Adaptor Bracket

4 M8 Washer 9 M5 Cap Head Screw

5 Left Chase Transit Bracket 10 M5 Washer

PRINTER PREPARATION

TRANSIT BRACKETS AND SCREWS REMOVAL

Chapter Issue 15, May 20 Installation Manual 4.7

7. Loosen the transit adjustment screw lock nut (15) on the rear chase transit

bracket (12).

Figure 4-4 Rear Chase Transit Bracket

8. Using a 6mm Allen key, loosen the transit adjustment screw (7), on both the

left chase transit brackets (5), and the transit adjustment screw (11) on the

rear chase transit bracket (12), so that the chase comes into contact with

the three actuator shafts.

9. Using a 5mm Allen key, remove the rear chase transit bracket (12) by

removing the M6 cap head screw (13) and M6 washer (14).

Item Description Item Description

11 Transit Adjustment Screw 14 M6 Washer

12 Rear Chase Transit Bracket 15 Transit Adjustment Screw Lock Nut

13 M6 Cap Head Screw

View on Right Hand Underside

PRINTER PREPARATION

TRANSIT BRACKETS AND SCREWS REMOVAL

4.8 Installation Manual Chapter Issue 15, May 20

10. Loosen the M8 nut (3) that secures the left chase transit bracket (5) to the

chase on the front and rear transit brackets.

11. Unscrew the M8 chase studs (1) from the chase and remove from the

printer.

12. Remove the two left chase transit brackets (5) from the printer.

13. Remove the two right hand chase studs (1) by loosening the two M8 nuts

(3) that secure the chase studs (1) to the chase.

NOTE

1. The transit screws are constructed of a red plastic dome head nut and a

45mm steel grub screw. Although the two parts are bonded, ensure that both

parts are removed if they become separated.

2. When the printer has been levelled, and before printing, the chase clamps

should be checked to see if they have moved out of tolerance - refer to the

section - Chase Clamp Check for details.

Cover Frame

Transit Bracket

This transit bracket assembly is fitted to printers that have Anti-Vibration mounts

fitted to the covers frame.

Carry out the following procedure for removal:

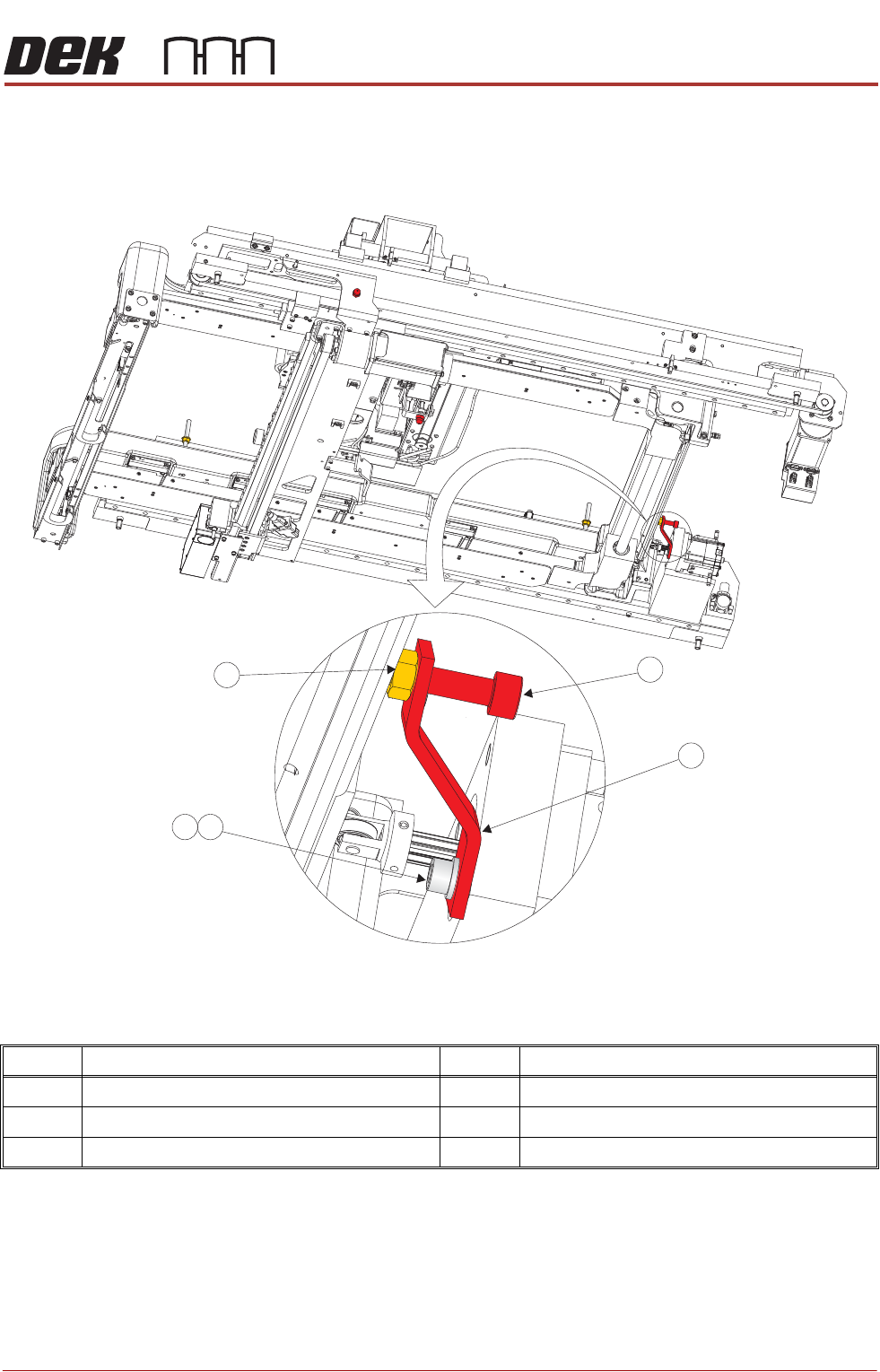

Figure 4-5 Cover Frame Transit Bracket
