PRINTER PREPARATION PRINTER ASSEMBLY Chapter Issue 15, May 20 Installation Manual 4.41 3. Feed the cables outside the printer 4. Fit the monitor bracket on to the monitor bracket shaft.

PRINTER PREPARATION

PRINTER ASSEMBLY

4.40 Installation Manual Chapter Issue 15, May 20

9. Connect the following cables to the monitor:

• Monitor Power Cable (DC)

•VGA Cable

• Touchscreen Cable (USB)

10. Fit the remaining USB cable to the rear monitor USB connector.

11. Place the keyboard on the bracket and feed the keyboard cable into the

printer.

12. Locate the free floating USB connector inside the right hand side of the

printer, behind the front panel.

13. Connect the keyboard.

14. Refit the front cover.

Type 5 Covers The monitor may have been removed for transportation, use the following

procedure to fit the monitor:

1. Remove the front panel.

2. Locate the following cables stowed within the printer:

• Monitor Power Cable

•VGA Cable

PRINTER PREPARATION

PRINTER ASSEMBLY

Chapter Issue 15, May 20 Installation Manual 4.41

3. Feed the cables outside the printer

4. Fit the monitor bracket on to the monitor bracket shaft.

PRINTER PREPARATION

PRINTER ASSEMBLY

4.42 Installation Manual Chapter Issue 15, May 20

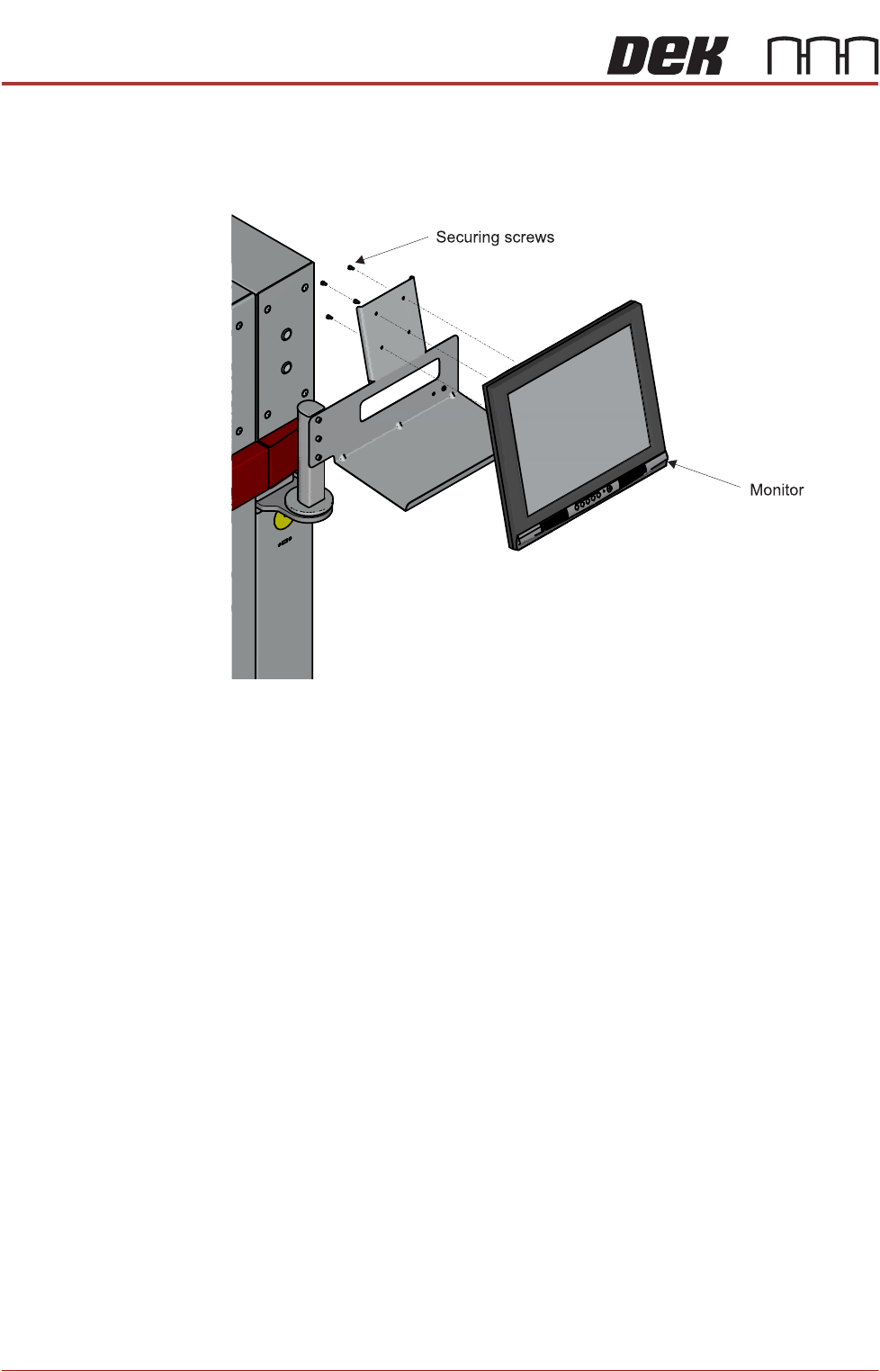

5. Fit and secure the monitor to the monitor bracket.

6. Connect the following cables to the monitor:

• Monitor Power Cable (DC)

•VGA Cable

7. Place the keyboard on the bracket and feed the keyboard cable into the

printer.

8. Refit the front cover.
