PRINTER PREPARATION
PRINTER ASSEMBLY
Chapter Issue 15, May 20 Installation Manual 4.57
9. Connect the following to the ProFlow ATx connectors on the right hand side
of the print carriage.
• Archimedes Screw Power (9PL100)
• Paste Load Feedback (9PL108)
• Piston Up Air Feed

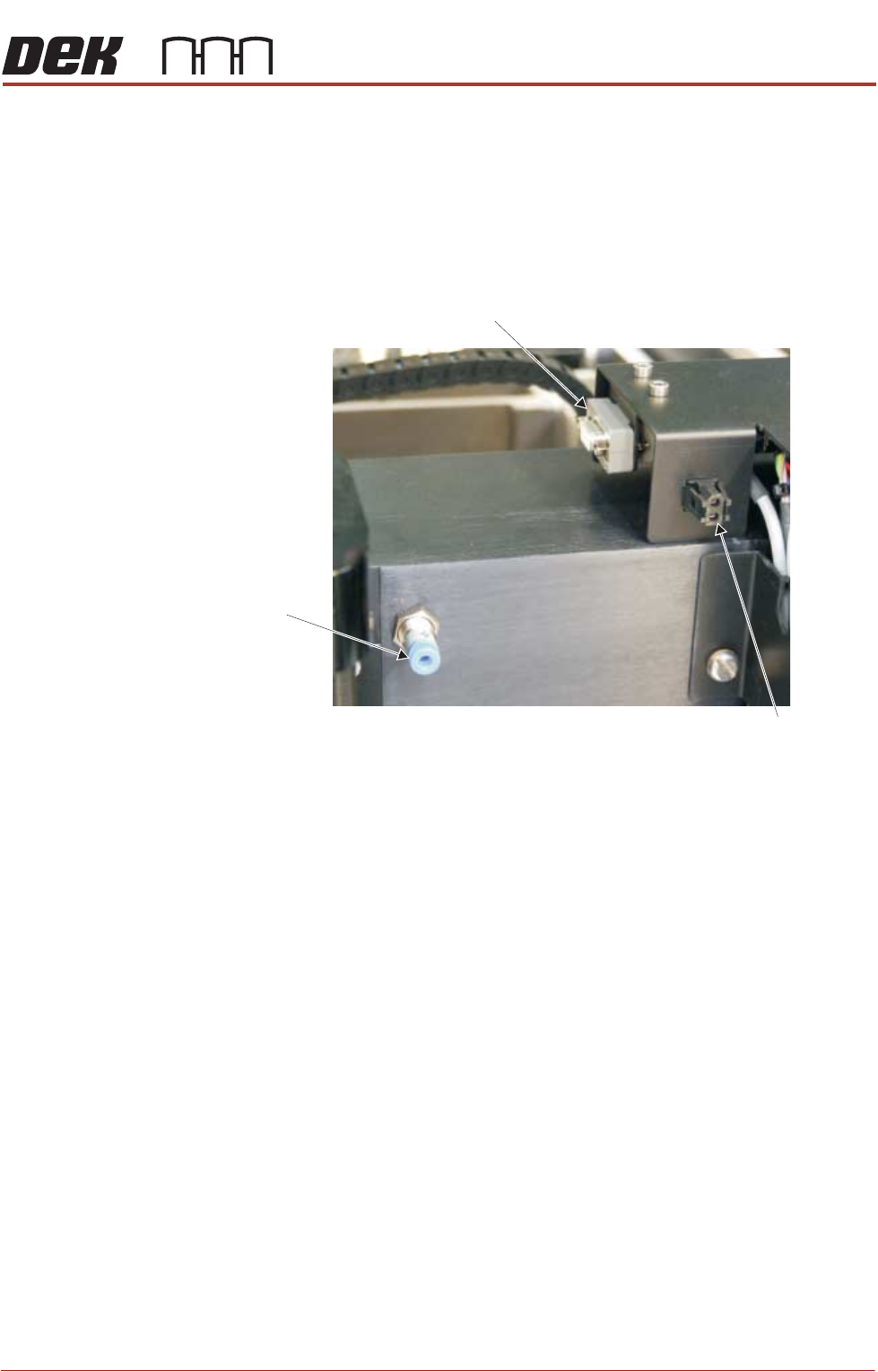

View on Print Carriage Right Side
Archimedes Screw
Power (9SK100)
Paste Load
Feedback (9SK108)
Piston Up
Air Feed
PRINTER PREPARATION
PRINTER ASSEMBLY
4.58 Installation Manual Chapter Issue 15, May 20
Fit Transfer Head
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
To adjust the mount brackets and fit a transfer head to the ProFlow ATx mount,
carry out the following:
1. Determine the size of the transfer head to be fitted. If the size of the transfer
head is not known, measure the distance between the inside edges of the
skis.
2. On the ProFlow ATx mount, unscrew the left hand side thumbscrew until the
thread is released.
3. Pull on the left hand side thumbscrew until it is free from the mount hole.
4. Slide the left hand side mount bracket until it is aligned with the correct hole
for the size of the transfer head being used (for guidance on how to select
the correct mount hole for the transfer head being installed, see the diagram

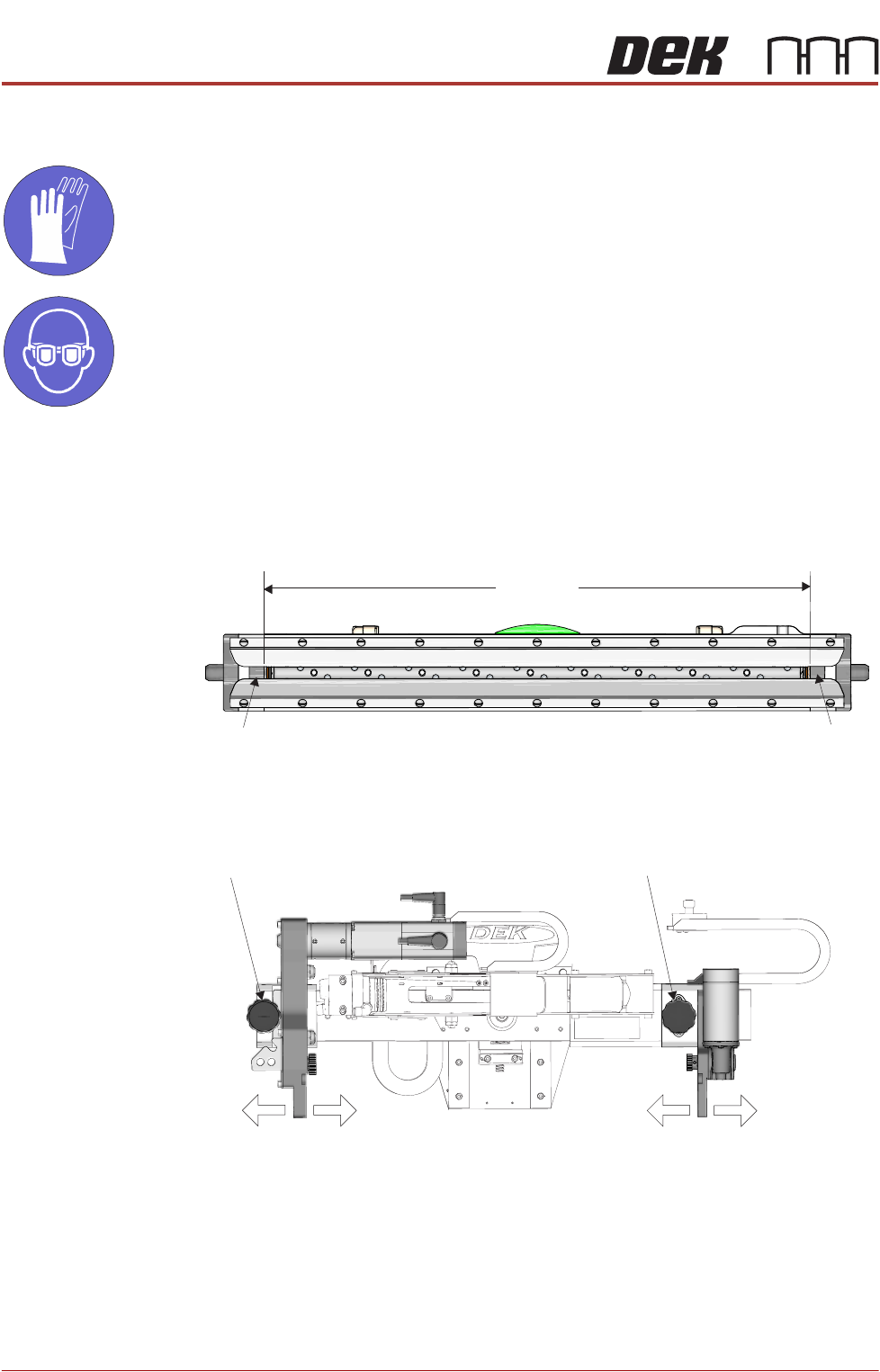

Transfer Head Underside View
XXXmm
Ski
Ski
View On Front of Transfer Head
Left Thumbscrew
Right Thumbscrew
Left Mount Bracket Right Mount Bracket
PRINTER PREPARATION
PRINTER ASSEMBLY
Chapter Issue 15, May 20 Installation Manual 4.59
below).
5. Release the thumbscrew to engage the thread into the mount hole.
6. Tighten the thumbscrew to secure the mounting block to the beam.
7. Unscrew the right hand side thumbscrew.
8. Pull on the right hand side thumbscrew until it is free from the mount hole.
9. Slide the right hand side mount bracket fully to the right so there is sufficient
space to attach the transfer head; it is not necessary to tighten the right hand
side thumbscrew at this stage.
10. Raise the transfer head to the ProFlow ATx mount and slot the transfer head
vertical mount pin into the vertical mount pin hook.
NOTE
Ensure no cables or air feed lines are trapped between the transfer head
and the ProFlow mount.

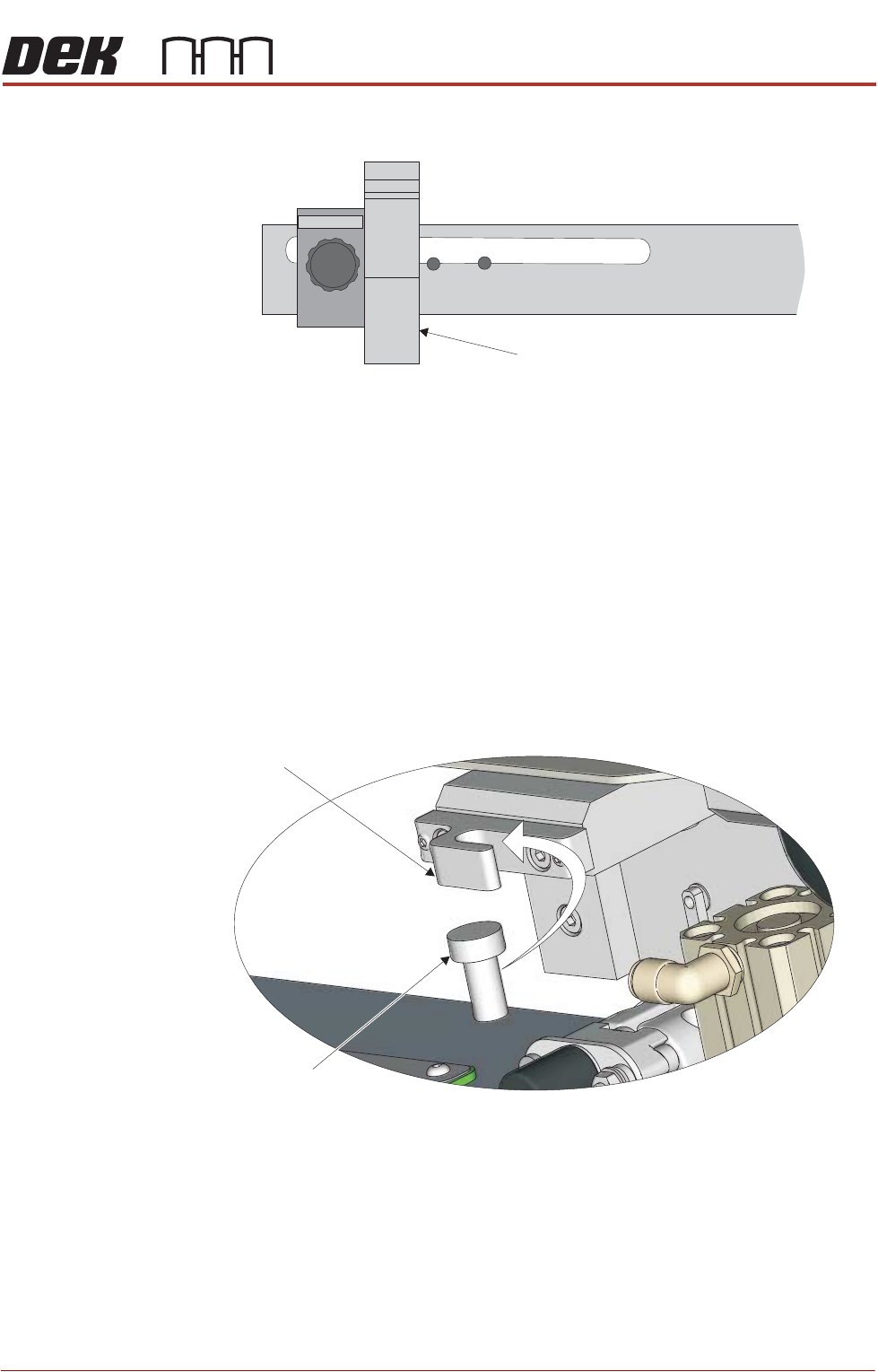

Align Left Side Mount Bracket to
Reveal Intended Transfer Head Size.
Example Set to .400mm
View on Left Side of the Mount Beam
Left Side of ProFlow ATx Mount Beam
300 200
400 350 250
View on Front of ProFlow ATx Mount
Vertical Mount
Pin Hook
Transfer Head
Vertical Mount Pin
