4.64 Installation Manual Chapter Issue 15, May 20

3. Rotate the print medium cartridge anti-clockwise 90°.

NOTE

During removal of the print medium cartridge, the filler tube assembly

remains attached to the nozzle of the cartridge. Do not remove the print

medium cartridge from the cartridge holder assembly until the cartridge has

been fully rotated 90° so that the filler tube adaptor is free to be removed.

4. Remove the empty print medium cartridge and filler tube assembly.

NOTE

The filler tube assembly consists of the filler tube, the elbow fitting, and the

filler tube adaptor and ‘o’ rings; these are removed as a single assembly.

5. Unscrew the print medium cartridge from the filler tube assembly.

6. Dispose of the used print medium cartridge in accordance with any National,

Federal, or local waste disposal or recycling regulations.

7. Fit the new print medium cartridge to the filler tube assembly.

8. Fit the filler tube assembly to the transfer head.

9. Rotate the print medium cartridge clockwise 90° towards the ProFlow ATx

mount to lock the filler tube assembly into place.

10. Close the print medium cartridge holder lever.

11. Close the printer cover.

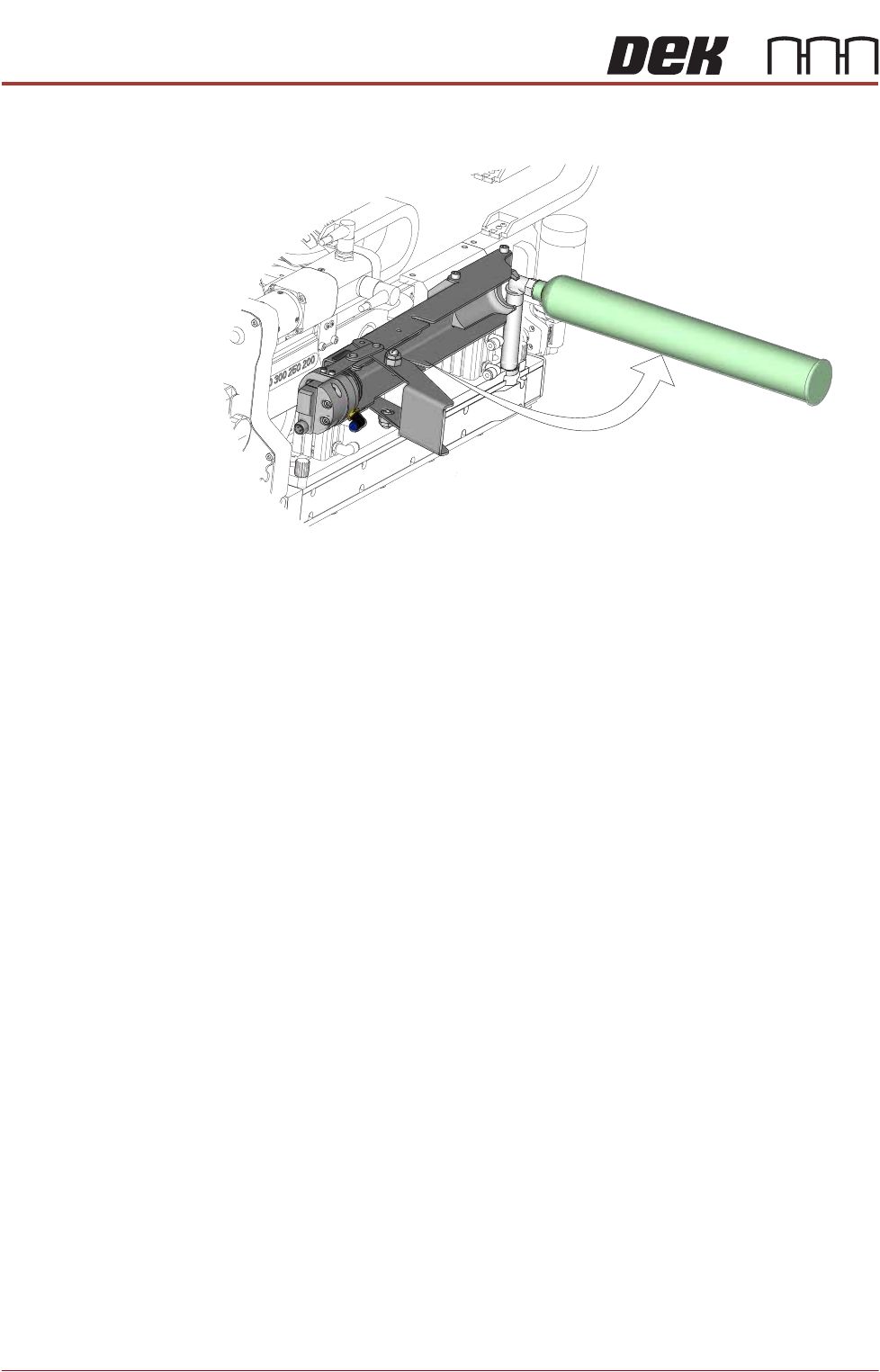

View on Left Front of ProFlow ATx System

PRINTER PREPARATION

PRINTER ASSEMBLY

Chapter Issue 15, May 20 Installation Manual 4.65

External Solvent Tank

MANDATORY

TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.

MANDATORY

TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.

NOTE

Changing solvent types may cause unexpected chemical reactions and

degradation within the solvent feed tube. ASM recommend that if the solvent is

changed to a different type, the solvent feed tube, from the solvent tank to the

cleaner pump, is replaced.

For printer types 1 - 4 the external solvent tank may be fitted to the rear or the

side of the printer. The support plate on the external solvent tank is configured

differently from side or rear fitting due to baffle plates covering the cooling fans

at the rear of the printer.

The external solvent tank used on type 5 printers is free standing.

To fit the external solvent tank to printer types 1 - 4, carry out the following:

1. Configure the support plate of the external solvent tank for rear or side fitting

to the printer.

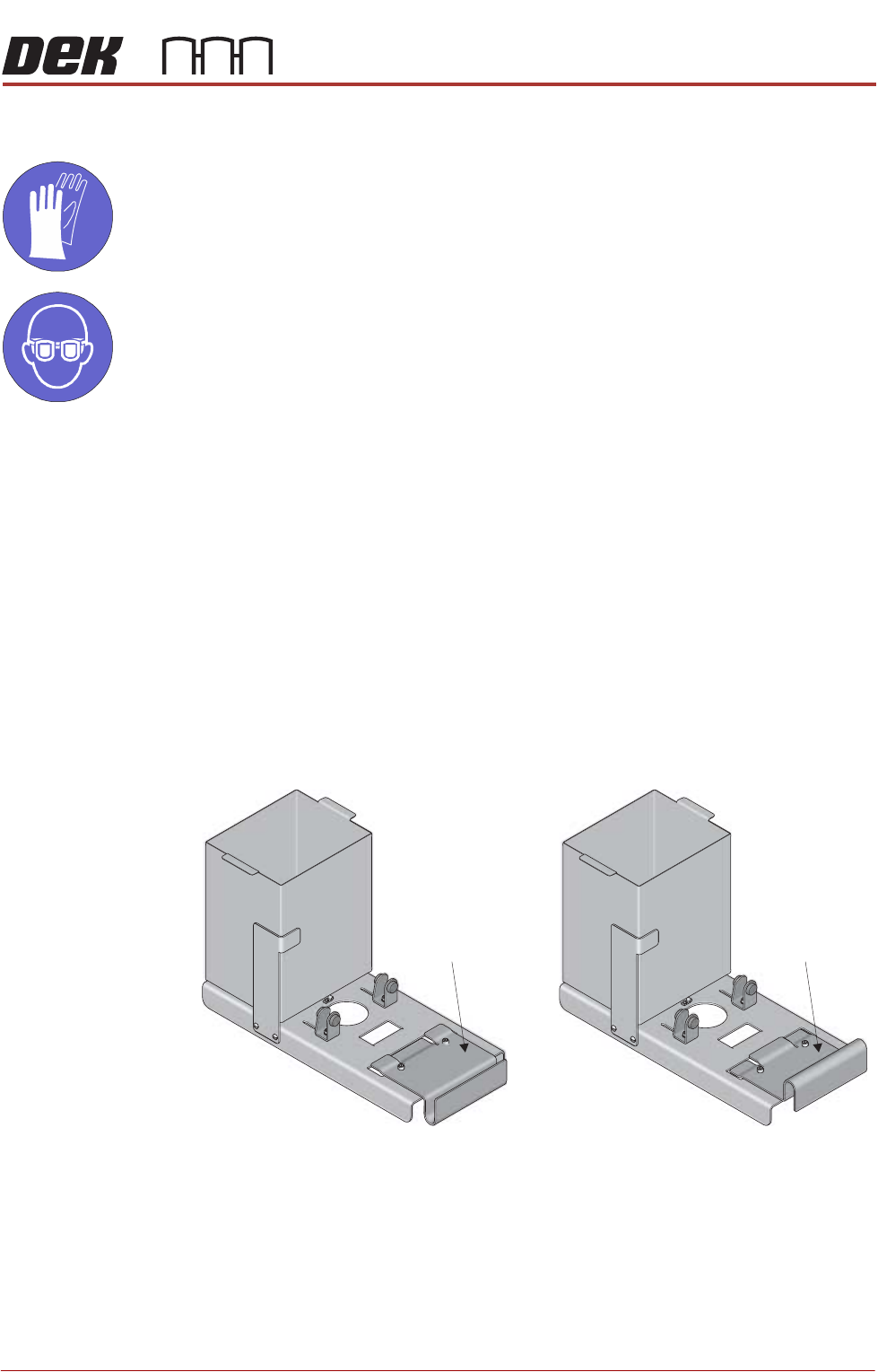

Rear Fitting Side Fitting

Support Plate Support Plate

PRINTER PREPARATION

PRINTER ASSEMBLY

4.66 Installation Manual Chapter Issue 15, May 20

2. Move the angle brackets away from the support plate.

3. Remove the rear cover of the printer (front cover on type 4 printers).

4. Place the external solvent tank on the floor beneath its intended location.

5. Supporting its weight, lift the external solvent tank and locate the support

plate on the printer base frame, as shown in the graphic below:

6. Place a full solvent container into the external solvent tank.

7. Remove the cap from the solvent container.

8. Locate the combined solvent container cap and 4mm tubing, inside the

printer.

9. Pass the cap through the hole in the external solvent tank base plate, from

Support Plate

Angle Brackets

Support Plate Machine Base Frame (Cross Section)

NOTE

Baffles removed for clarity
