PRINTER PREPARATION
PRINTER ASSEMBLY
4.66 Installation Manual Chapter Issue 15, May 20
2. Move the angle brackets away from the support plate.
3. Remove the rear cover of the printer (front cover on type 4 printers).
4. Place the external solvent tank on the floor beneath its intended location.
5. Supporting its weight, lift the external solvent tank and locate the support

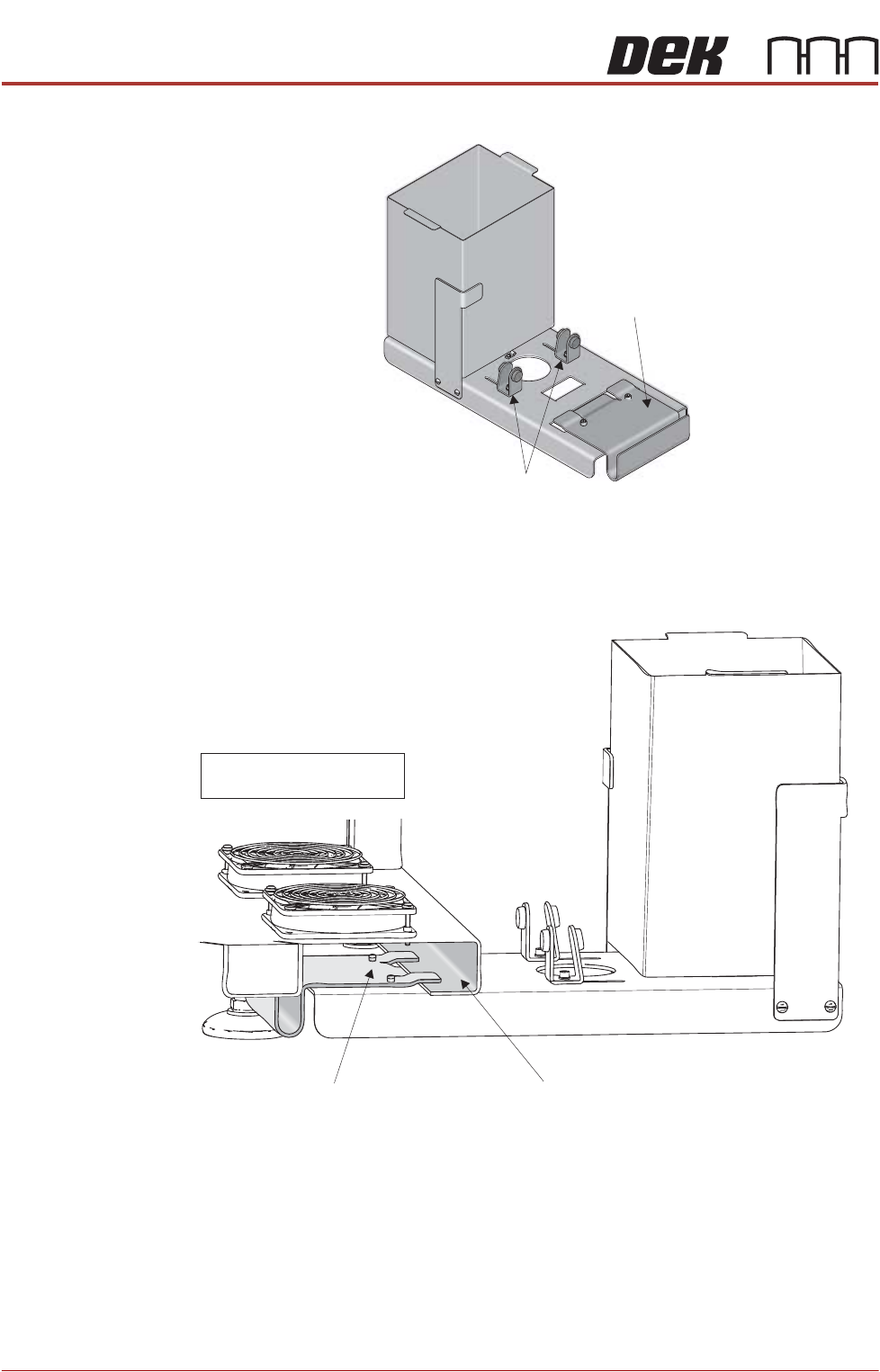

plate on the printer base frame, as shown in the graphic below:
6. Place a full solvent container into the external solvent tank.
7. Remove the cap from the solvent container.
8. Locate the combined solvent container cap and 4mm tubing, inside the
printer.
9. Pass the cap through the hole in the external solvent tank base plate, from
Support Plate
Angle Brackets
Support Plate Machine Base Frame (Cross Section)
NOTE
Baffles removed for clarity
PRINTER PREPARATION
PRINTER ASSEMBLY
Chapter Issue 15, May 20 Installation Manual 4.67
underneath.
10. Fit the combined cap and 4mm tubing to the solvent container.
11. Connect the cable from the external solvent tank to 9SK69 on the external
services panel.
12. Fit the rear cover (front cover on type 4 printers).
Solvent Container Cap
Base Plate
View on Rear of Machine
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
D
O
W
N
L
IN
E
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
U
P
L
IN
E
FMI POD
Solvent Fluid
Connector
Solvent Sensor
9SK69
PRINTER PREPARATION
PRINTER ASSEMBLY
4.68 Installation Manual Chapter Issue 15, May 20
13. Slide the angle brackets towards the printer cover, ensuring that either the
vertical or sloping side (as appropriate), is 1.5 to 2.5mm from the printer
cover.
3. Tighten the two M5 cap head securing screws.
Tooling and Print
Medium
Applicators
Fit the print medium tooling and applicators. Refer to the individual item chapter
or the tutorial set supplied with the printer.
If the machine being installed is a Multiple Singulated Substrates (MASS)
equipped machine. Fit the alignment/tooling towers in accordance with the
MASS Standalone manual Replacement Procedures.
Machine Cover
Securing Screws
Angle
Brackets
1.5 - 2.5mm Gap
