HIGH THROUGHPUT CONVEYOR (HTC)
OPERATION
6.4 Installation Manual Chapter Issue 6, May 20
5. Carefully adjust the conveyor to obtain front rail parallelism with the print
station front rail.
6. Re-tighten the securing bolts and re-check for parallelism.
7. Further adjustment of the auxiliary conveyor can be achieved by loosening
the two front rail securing bolts, adjusting the rail to achieve parallelism and
re-tightening the rail securing bolts.
8. Repeat Steps 3 to 7 for the left hand auxiliary conveyor.

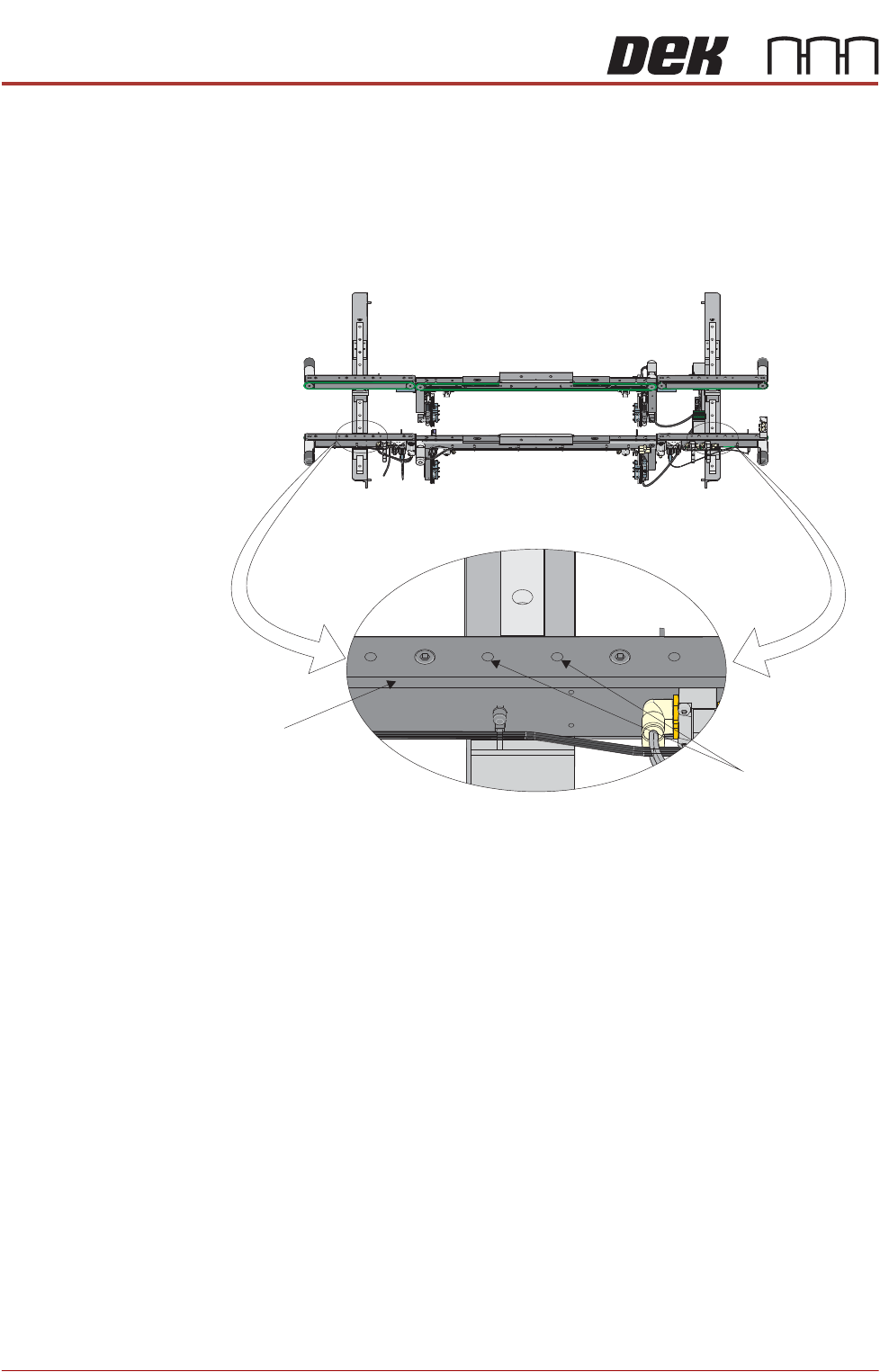

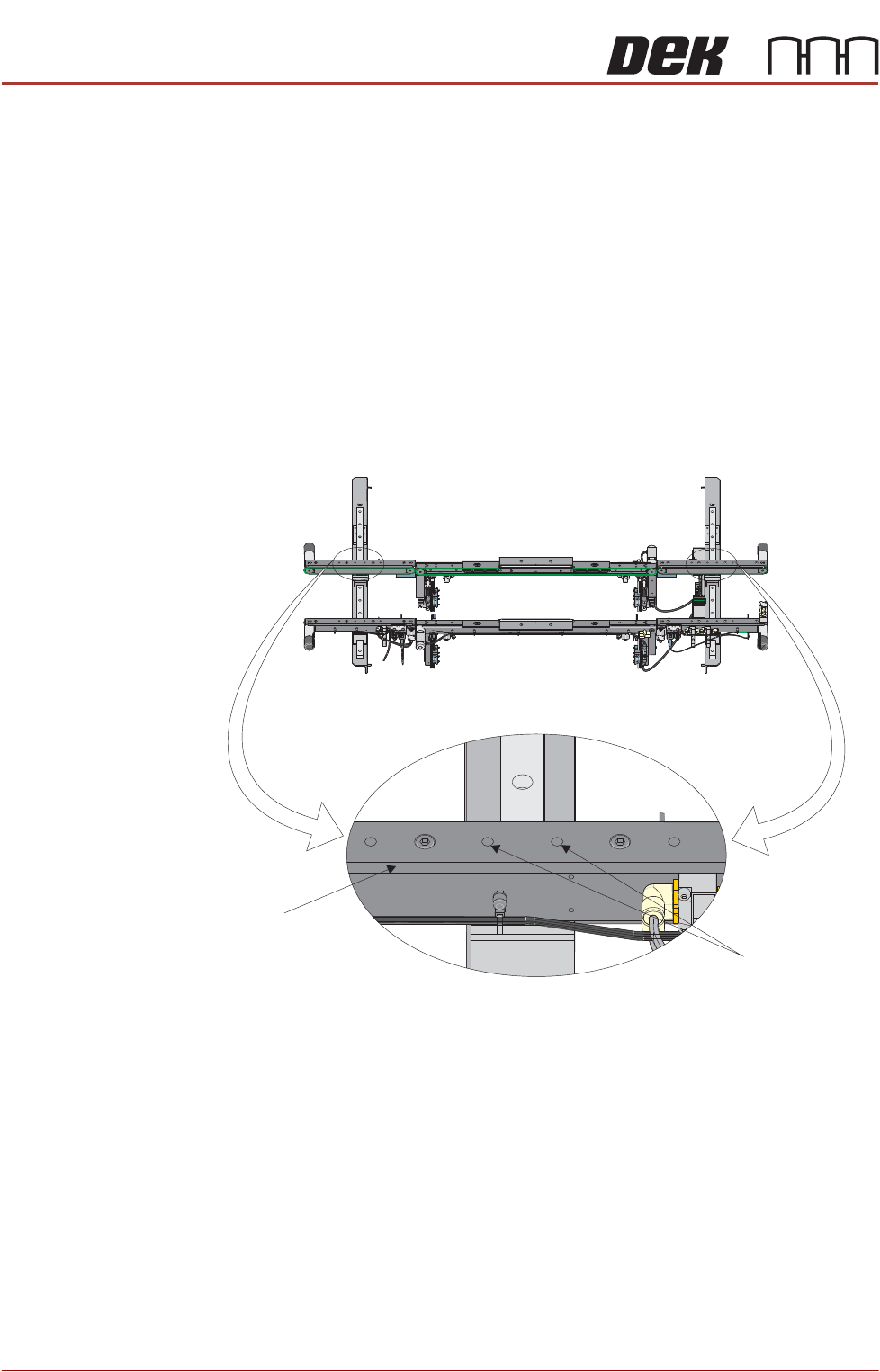

Front View of HTC Rails
Auxiliary Conveyor
Front Rail
Front Rail
Securing Bolts
HIGH THROUGHPUT CONVEYOR (HTC)
OPERATION
Chapter Issue 6, May 20 Installation Manual 6.5
Auxiliary Conveyor Rear Rail Parallelism
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
To check and if required adjust the auxiliary conveyors rear rail parallelism, carry
out the following procedure at transport height:
NOTE
1. Before continuing with this procedure refer to the Pre-Power Up section of
this chapter. Check the integrity of the machine power connections before
connecting the printer and powering it up. Ensure that all transport brackets
have been removed prior to powering up. Use diagnostics to lift the transport
rails to transport height.
2. The parallelism of the auxiliary conveyors rails is dependent on the front and
rear print station rails being parallel. Therefore, before any adjustment is
carried out an assessment of the parallelism of the print station rails must
be carried out.
3. Ensure that the auxiliary conveyor front rail is in alignment with the print
station front rail before any adjustment of the auxiliary conveyor rear rail
parallelism (refer to Auxiliary Conveyor Front Rail Parallelism section of this
chapter).
HIGH THROUGHPUT CONVEYOR (HTC)
OPERATION
6.6 Installation Manual Chapter Issue 6, May 20
1. Using a Board Clamp Setting Plate Part No. 88140403-01, place the plate
on the right hand auxiliary conveyor transport belts.
2. Place a 0.5mm feeler gauge between the plate and the inner face of the
auxiliary conveyor rear rail.
3. Run the feeler gauge along the whole length of the conveyor rail, the fit of
the feeler gauge should be tight, between the plate and the inner face of the
rail.
4. Remove the feeler gauge and manually move the plate in and out of the
machine along the conveyor transport belts, ensuring the plate moves freely
without binding or jamming.
5. If adjustment is required, carry out the following: loosen the two rear rail
securing bolts, adjust the rail to achieve parallelism and re-tightening the rail
securing bolts.
6. Repeat Steps 2 to 5 to re-check for parallelism.
7. Repeat Steps 1 to 6 for the left hand auxiliary conveyor.
Auxiliary Conveyor
Height Setting
To check and if required adjust the height of the auxiliary conveyor to the print
station rails carry out the following at transport height:
NOTE
Before continuing with this procedure refer to the Pre-Power Up section of this
chapter. Check the integrity of the machine power connections before connect-
ing the printer and powering it up. Ensure that all transport brackets have been
removed prior to powering up. Use diagnostics to lift the transport rails to
transport height.
1. Using a Board Clamp Setting Plate Part No. 88140403-01, place the plate
on the auxiliary conveyor transport belts.
Front View of HTC Rails
Auxiliary Conveyor
Rear Rail
Rear Rail
Securing Bolts
