COVERS PRINTER COVERS Chapter Issue 12, Feb 18 Installation Manual 2.3 T ype 1 Covers In order to protect personnel and prevent damage, eight covers are fitted to the printer . The upper part of the printer is protected …
COVERS
PRINTER COVERS
2.2 Installation Manual Chapter Issue 12, Feb 18
Earth Bonding Apart from the Type 3, 4 and 5 covers printers, which use metal covers to make
the bond, all external metal surfaces are mechanically and electrically bonded
to the printer earth point. The bonding wire used is identified by its green and
yellow insulation and is commonly used to earth bond throughout. Care should
be taken when removing these links that they are secured tightly and cleanly,
when replaced.
NOTE
The EPA cover package option is available for the Type 2 Cover printers only.
Its covers are bonded through a series clips and sprung contact studs. The
covers themselves have an electrically conductive conformal coating to dissi-
pate static electricity. For the Electrostatic Protected Area to work effectively, all
fixings are to be kept clean, all panels must be fitted correctly, and the printhead
cover closed.
Safety Interlocks The safety features designed into the printer are for the protection of all
operators and maintenance personnel. ASM strongly recommend safety
devices are never overridden.
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.3
Type 1 Covers In order to protect personnel and prevent damage, eight covers are fitted to the
printer. The upper part of the printer is protected by the sliding printhead cover,
one rear lifting printhead cover and two upper side panels which house the
control switches.
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.

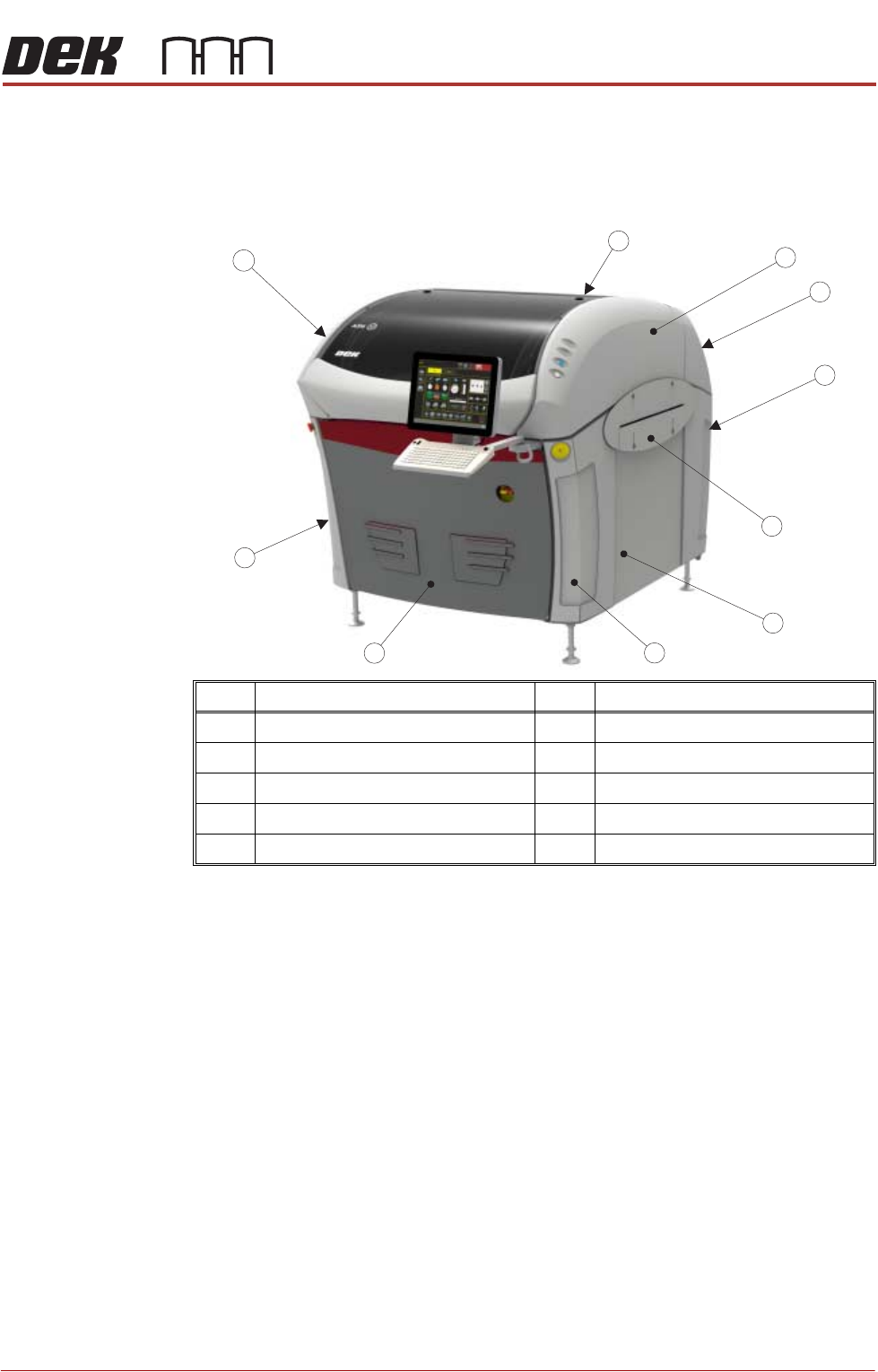

Item Description Item Description
1 Printhead Cover 6 Side Panel (in 2 positions)
2 Right Hand Upper Side Panel 7 Left Hand Front Corner Panel
3 Rear Cover 8 Front Panel
4 Right Hand Lower Side Panel 9 Left Hand Lower Corner Panel
5 Safety Cover (in 2 positions) 10 Left Hand Upper Side Panel
1
2
3
4
5
6
7
8
9
10
COVERS
PRINTER COVERS
2.4 Installation Manual Chapter Issue 12, Feb 18
Cover Removal Before removing covers ensure that the supplies (air and electrical) have been
isolated from the printer.
Ring Head Quarter-
Turn Fasteners

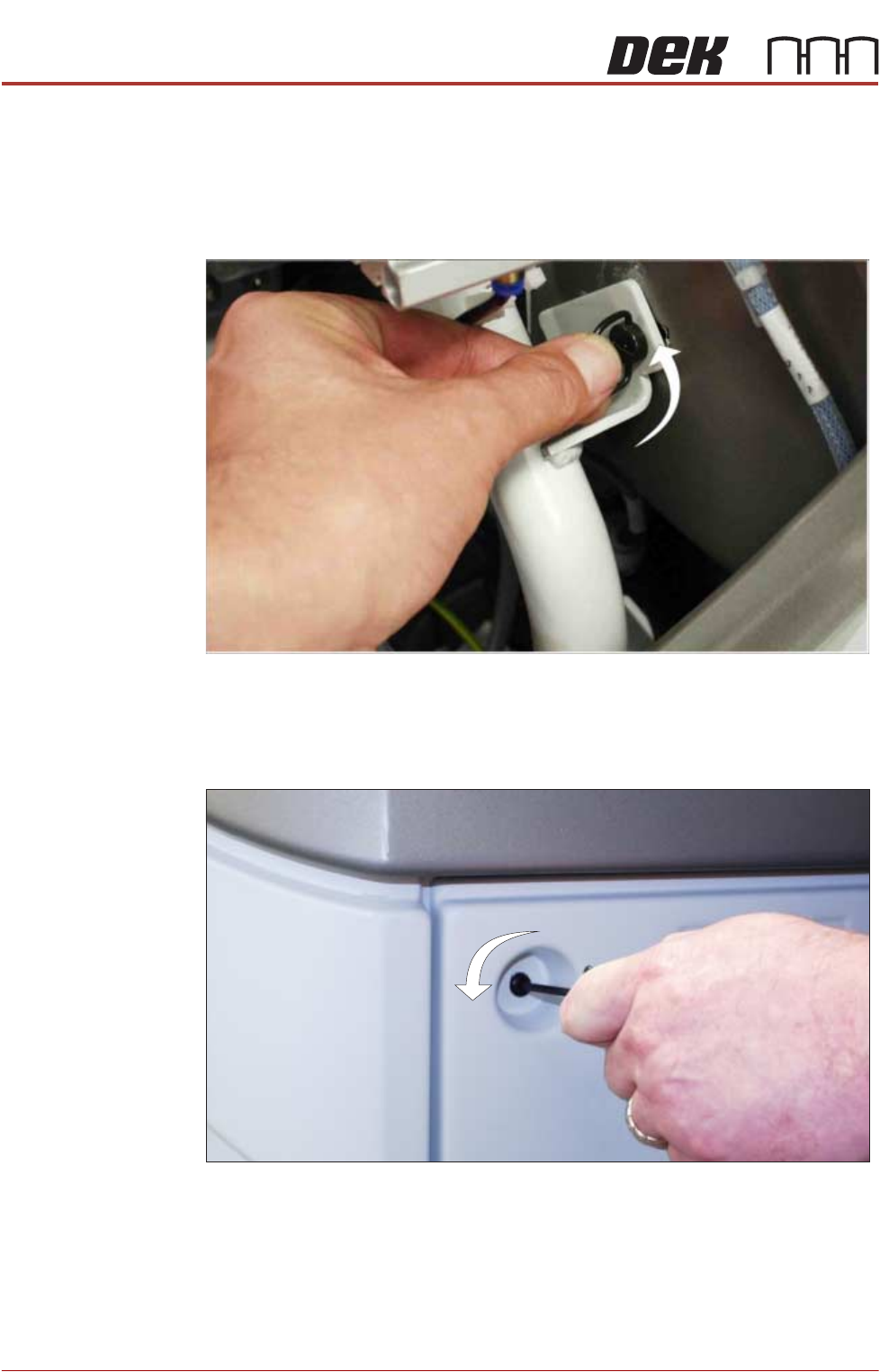

To remove a panel secured with ring head quarter-turn fasteners, turn the
fastener anticlockwise by a quarter-turn and pull out.
Figure 2-1 Ring Head Quarter-Turn Fastener
Button Head
Quarter-Turn
Fasteners
To remove a panel secured with button head quarter-turn fasteners, using a
4mm Allen key, turn the fastener anticlockwise by a quarter-turn and pull out.
Figure 2-2 Button Head Quarter-Turn Fastener
