COVERS
PRINTER COVERS
2.6 Installation Manual Chapter Issue 12, Feb 18
Rear Printhead
Fixed Cover
To remove the rear printhead fixed cover, carry out the following:
1. Remove the rear panel.
2. Release the two quarter-turn fasteners that secure the rear printhead cover
to the cover frame.

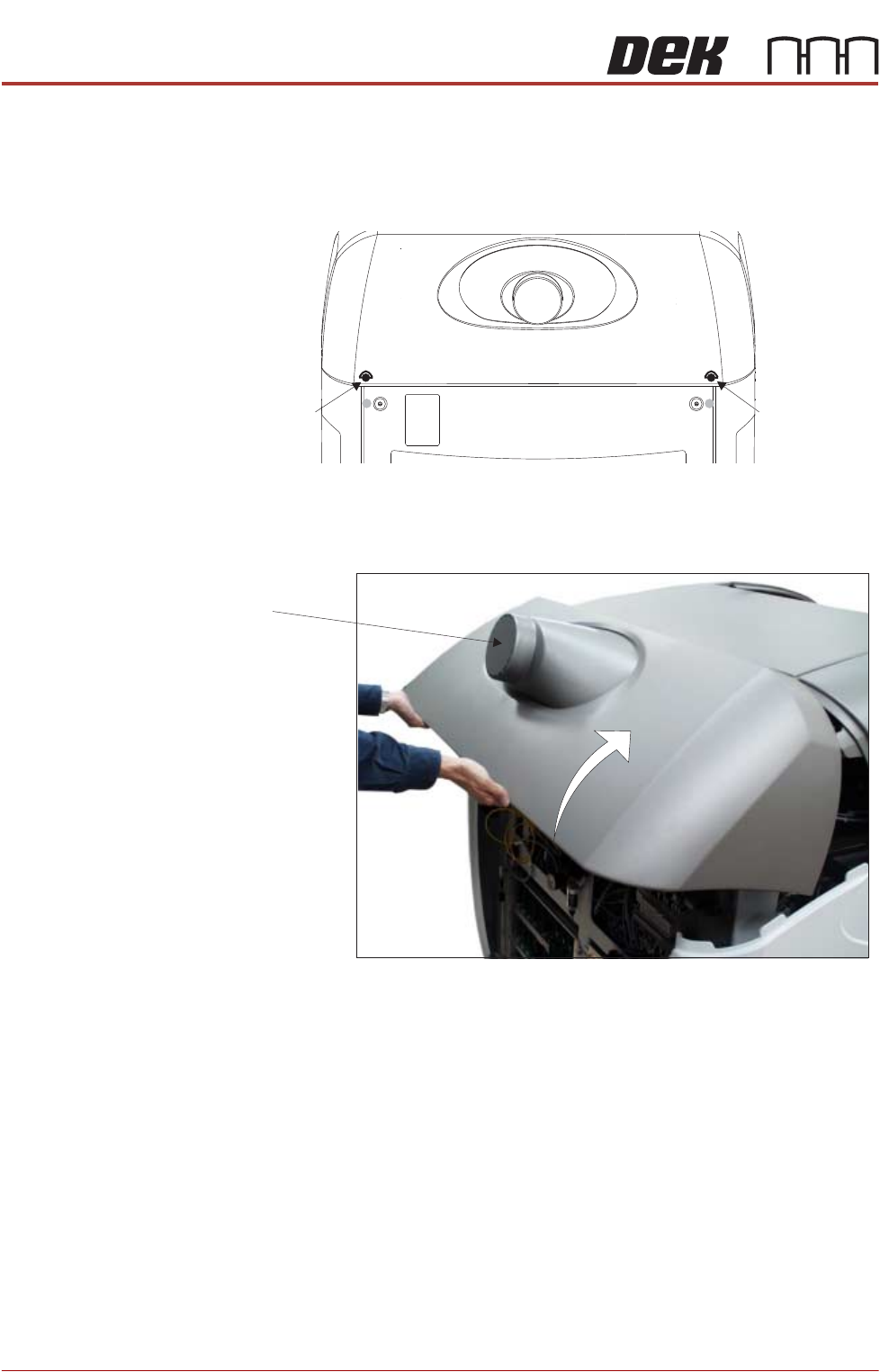

3. The rear printhead cover is interlocked with the upper printhead cover using
locating tabs. The rear printhead cover must be lifted to allow the locating
tabs to part.
NOTE
The knock out panel is removed when the printer is connected to a Temper-
ature Control Module (TCM). If a TCM is not fitted the knock out panel must
be intact, or this would contravene the safety requirements the printer is
tested to. Where the knock out panel has been removed and a TCM is not
fitted, ASM recommends fitting a new rear panel.
Rear Printhead
Quarter-Turn
Fastener
Rear Printhead
Quarter-Turn
Fastener
Knock Out
Panel
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.7

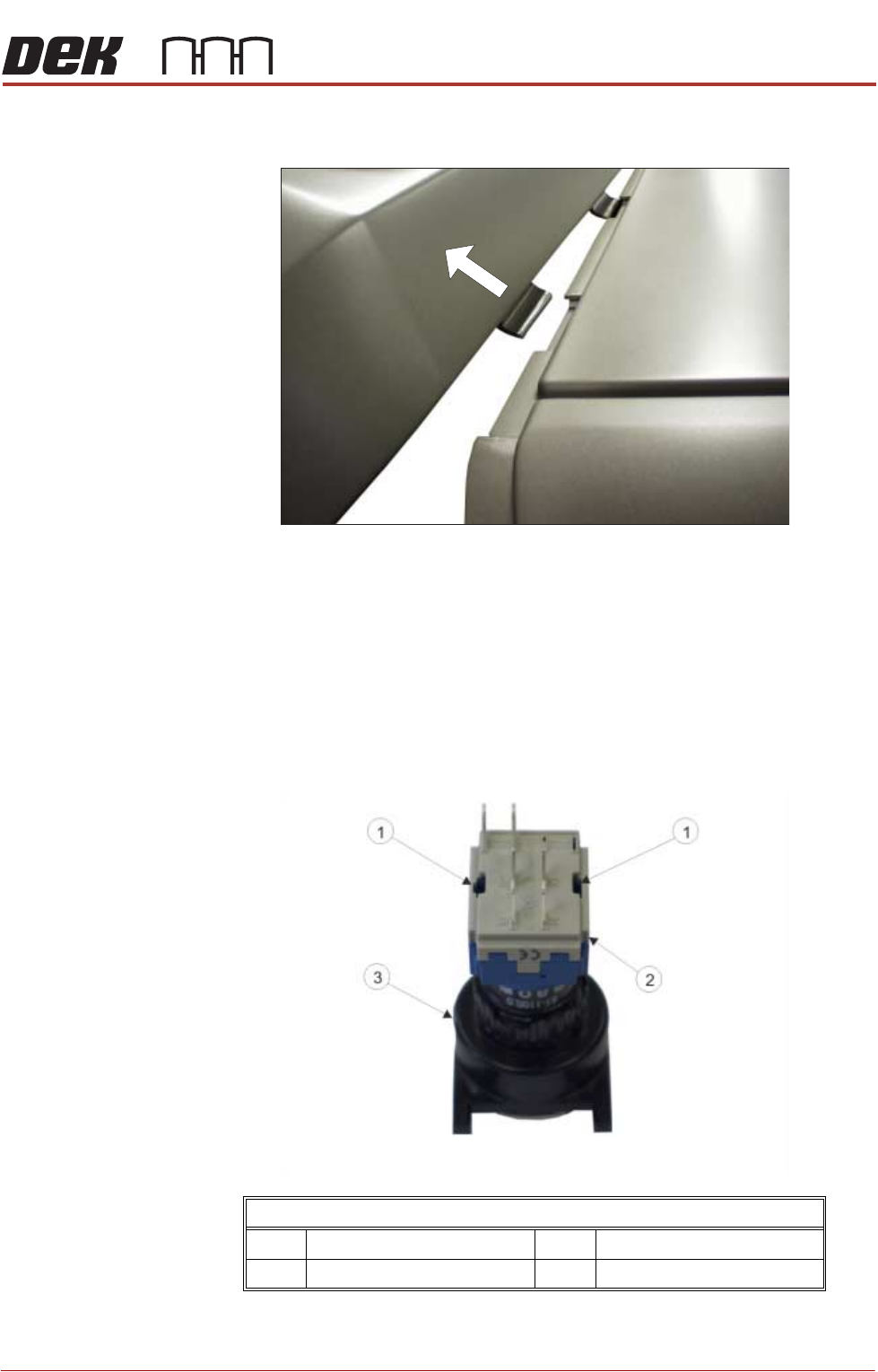

4. Once the locating tabs have cleared, pull the cover horizontally away from
the printer.
Upper Side Panels To remove the upper side panels, carry out the following:
1. Remove the rear printhead fixed cover (as detailed previously).
2. Open the front printhead cover.
3. Remove the corresponding safety cover (as detailed previously).
NOTE
Before the upper side panel can be removed, the control switches (system
switch, jog switch etc.) must be disconnected in the following manner.
4. Locate the two release slots in the contact assembly part of the switch.
View on Rear of Switch
1 Release Slot 3 Switch Body
2 Contact Assembly
COVERS
PRINTER COVERS
2.8 Installation Manual Chapter Issue 12, Feb 18

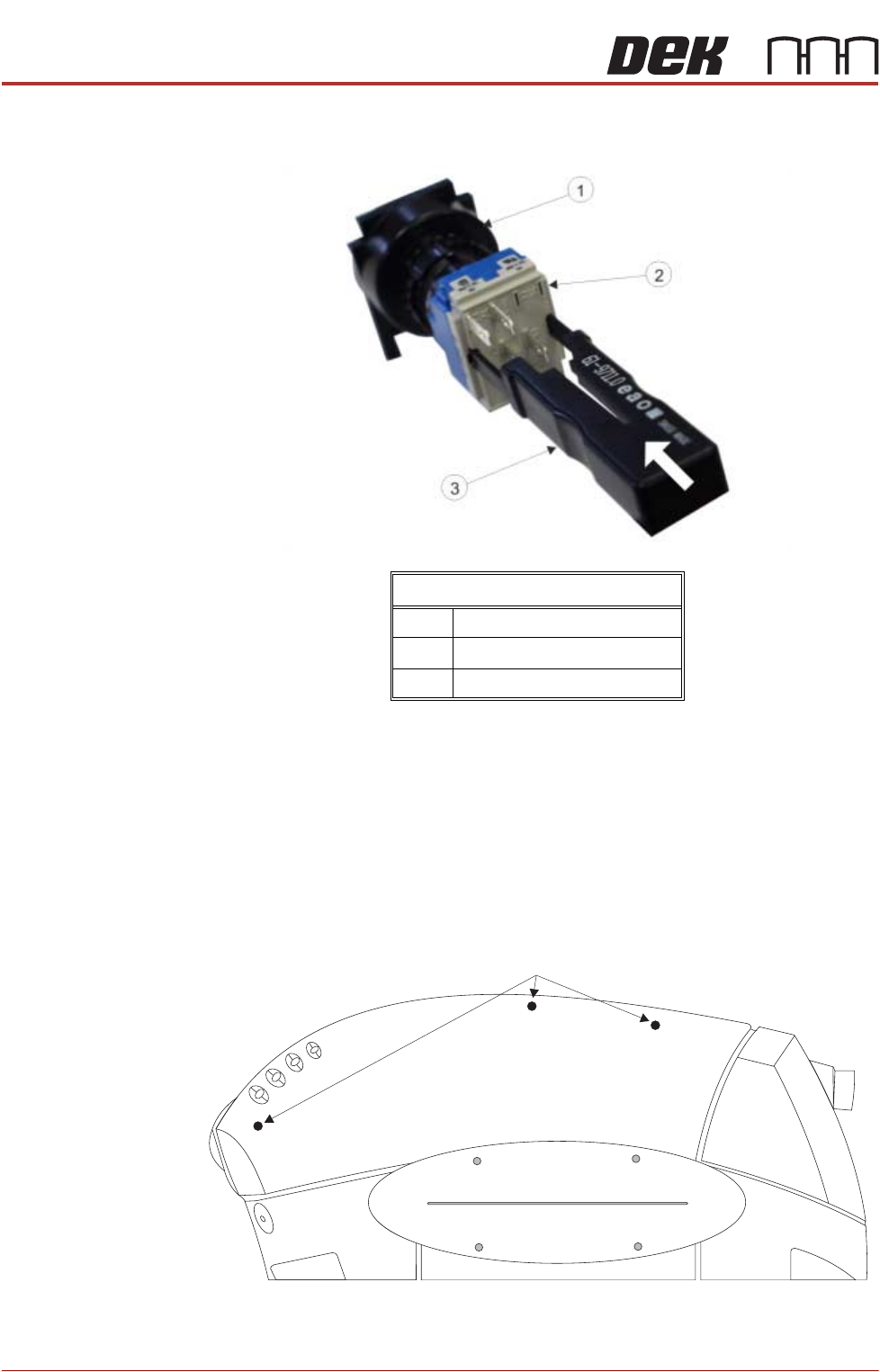

5. Insert the switch release tool (Part No 188647) into the slots and push until
the release tool clicks into place.
6. Leaving the switch release tool in position, pull the contact assembly from
the switch body.
7. Remove the switch release tool from the contact assembly.
NOTE
To refit the contact assembly to the switch body, using the locating keyway,
push the two units together until they click into place.
8. Release the three quarter-turn fasteners that secure the upper side panel
and remove the panel.
9. Repeat Steps 3 to 8 for the other side panel, if required.
View on Rear of Switch
1 Switch Body
2 Contact Assembly
3 Switch Release Tool
Upper Side Panel Quarter-Turn Fasteners
