COVERS PRINTER COVERS Chapter Issue 12, Feb 18 Installation Manual 2.11 T ype 2 Covers In order to protect perso nnel and prevent damage to the printer , 10 covers are fitted to the printer . The sliding cover , the rear…
COVERS
PRINTER COVERS
2.10 Installation Manual Chapter Issue 12, Feb 18
2. Using a cross head screwdriver, release the two fasteners that secure the
side panel to the cover frame.
3. Lift the side panel upwards to clear the two guide pins that locate the panel
to the printer frame.

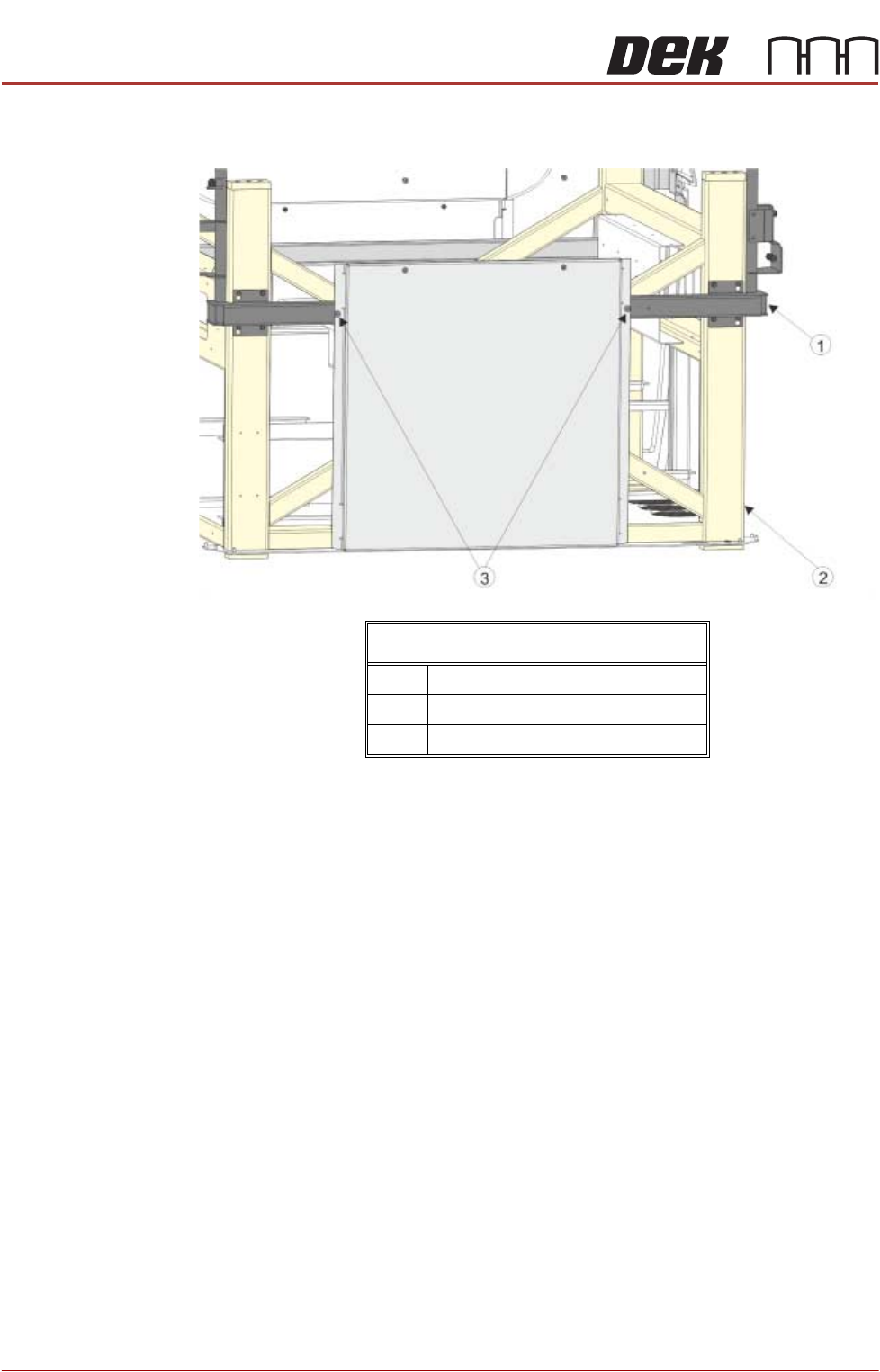

View on right Side of Printer
1 Cover Frame
2 Main Frame
3 Side Panel Securing Fasteners
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.11
Type 2 Covers In order to protect personnel and prevent damage to the printer, 10 covers are
fitted to the printer.
The sliding cover, the rear printhead cover and two upper side panels which
house the control switches protect the upper part of the printer. The four corner
panels, front and rear panels, safety covers and the front and rear side panels
protect the lower part of the printer.
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.
Item Description Item Description
1 Rear Printhead Cover 7 Front Side Panel (2 positions)
2 Sliding Cover 8 Front Panel
3 Right Hand Upper Side Panel 9 Front Corner Panel (2 positions)
4 Rear Corner Panel (2 positions) 10 Left Hand Upper Side Panel
5 Safety Cover (2 positions) 11 Rear Panel
6 Rear Side Panel (2 positions)

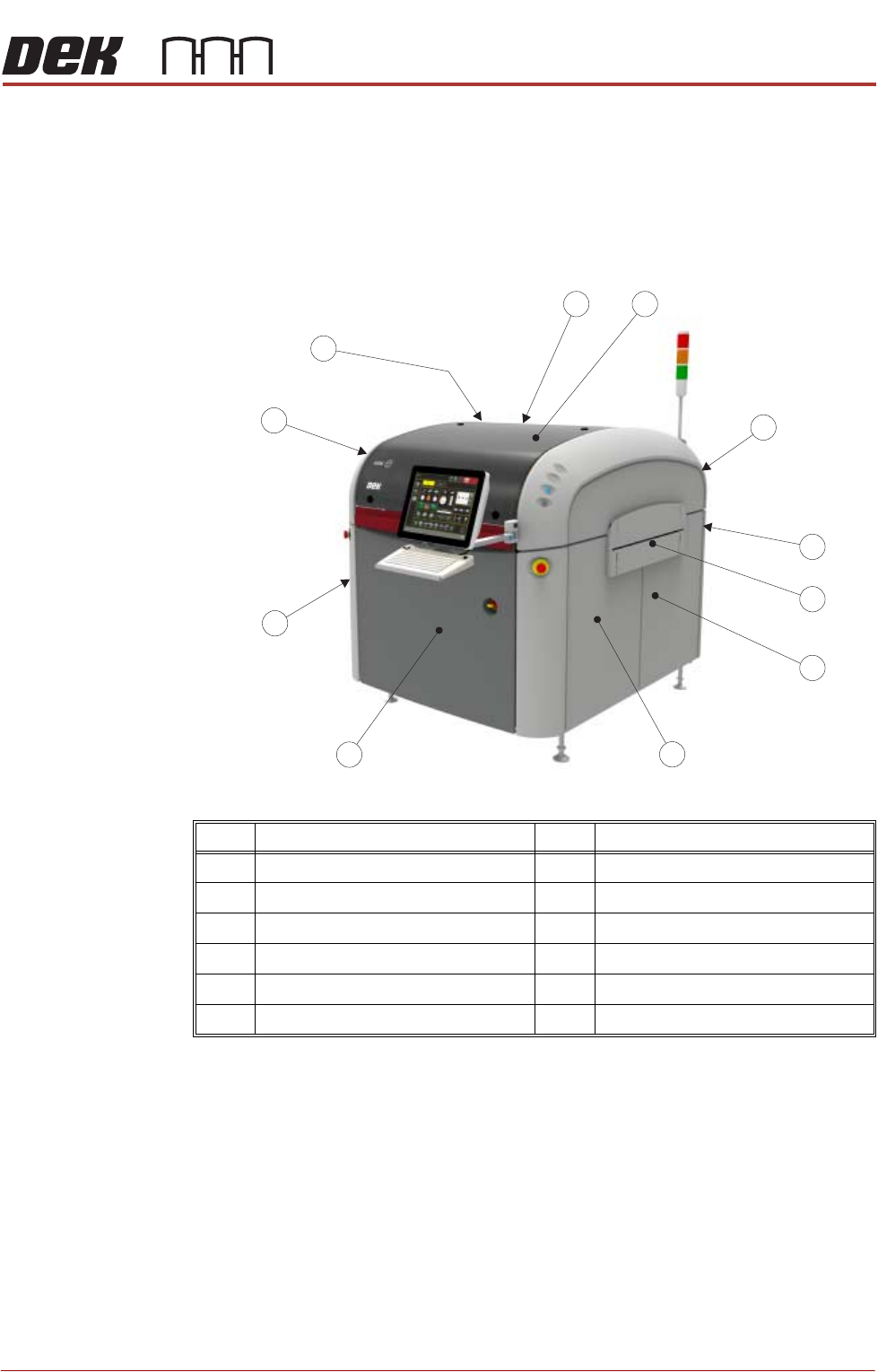

Front Left Quarter View
10
9
8
7
6
4
5
1
3
2
11
COVERS
PRINTER COVERS
2.12 Installation Manual Chapter Issue 12, Feb 18
Cover Removal Before removing covers ensure that the supplies (air and electrical) have been
isolated from the printer.
Quarter-Turn Ring
Fasteners
To remove a panel secured with quarter-turn ring fasteners, turn the fastener
ring anti clockwise (-) by a quarter-turn and pull out. To refit a panel, locate the
fastener shaft into the fastener, push against the spring whilst turning the ring
clockwise a quarter turn to secure (+).
Figure 2-3 Quarter-Turn Ring Fastener
Figure 2-4 Ring Fastener Locations
+
-
Locations (behind panels) of the Quarter Turn Ring Fasteners
Front Left Quarter
Rear Left Quarter
