COVERS PRINTER COVERS 2.18 Installation Manual Chapter Issue 12, Feb 18 The panel can be ‘hinged’ away to rel ease the bottom tabs from the suppo rt rail. Lift the panel out of posit ion. NOTE When refitting the right h …

COVERS

PRINTER COVERS

Chapter Issue 12, Feb 18 Installation Manual 2.17

7. Release the front and rear quarter-turn ring latches located above the front

and rear corner panels respectively.

8. Pull the top edge of the cover out to release the locating tabs from the top

edge.

Quarter-Turn Ring Fastener

Panel Locating Tabs

COVERS

PRINTER COVERS

2.18 Installation Manual Chapter Issue 12, Feb 18

The panel can be ‘hinged’ away to release the bottom tabs from the support

rail. Lift the panel out of position.

NOTE

When refitting the right hand panel, ensure that the cables from the MMI are

routed in the support arm groove.

Dowel Pin

COVERS

PRINTER COVERS

Chapter Issue 12, Feb 18 Installation Manual 2.19

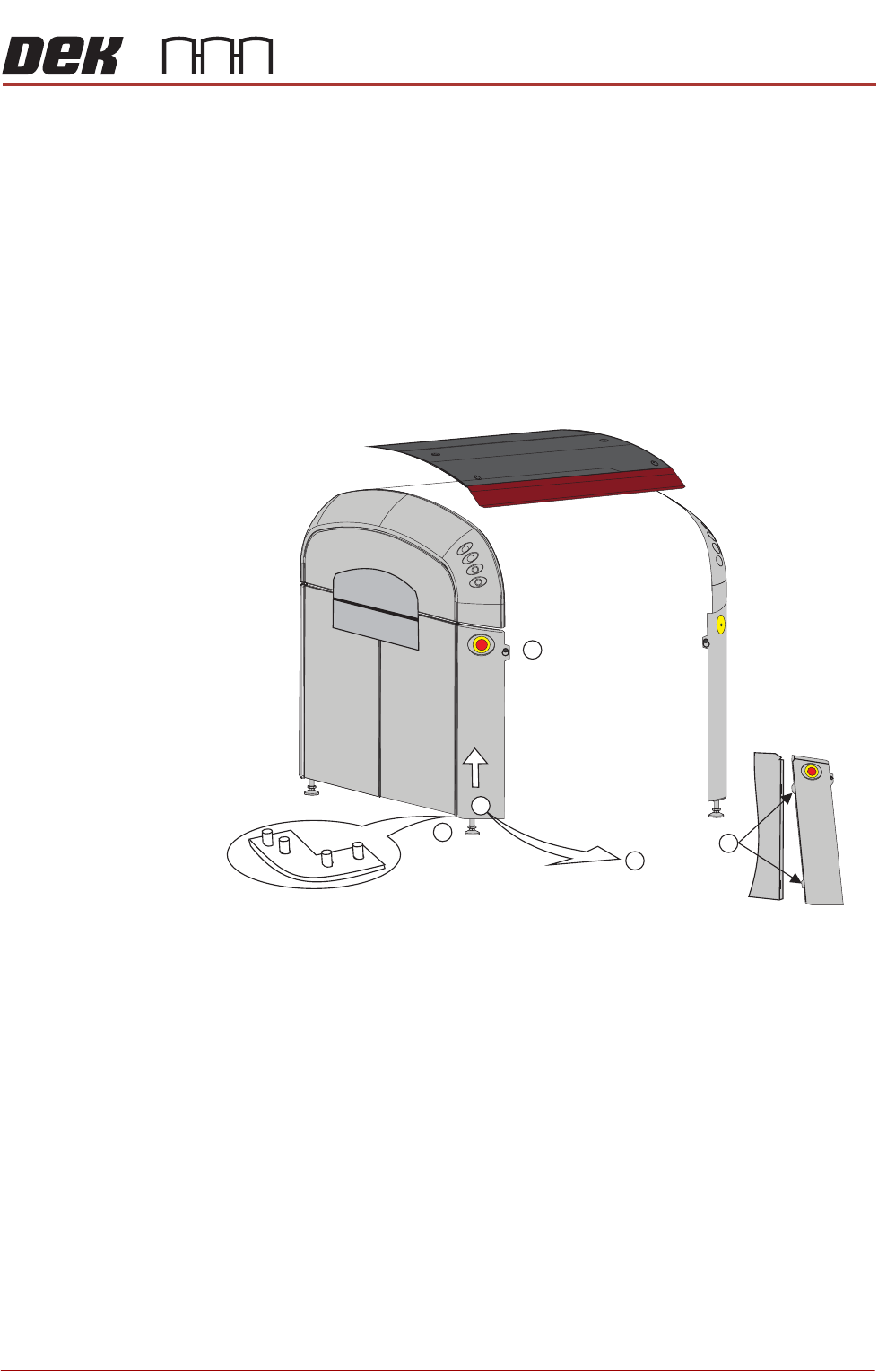

Corner Panels To remove a corner panel, carry out the following:

1. For the front corner panels, open the sliding cover; for the rear corner

panels, open the rear printhead cover.

2. Remove the respective Front/Rear Panel.

3. Locate and release the quarter-turn ring fastener that retains the corner

panel (1).

4. At the bottom of the corner panel, lift the panel up toward the upper side

panel (2), until it clears the locating pins at the base (3); tilt the panel out

away from the base plate (4).

5. Pull the corner panel away from the side panel to which it attached; all panels

are held together by interlocking panel locating tabs (5).

Front Left Quarter View
