COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.37
4. Remove the panel clear of the printer, taking care not to damage the earth
cable.
5. Repeat Steps 3 to 4 for the other upper front corner panel, if required.
Lower Front Corner
Panels
To remove the lower front corner panels, carry out the following:
1. Remove the Left Hand Safety Cover (as detailed previously).
2. Remove the Right Hand Safety Cover (as detailed previously).
3. Using a 4mm Allen key, undo the appropriate two captive screws.
4. Lift the panel clear of the guide pins that locate the panel to the printer frame,
taking care not to damage the earth cable.
5. Repeat Steps 3 and 4 for the other lower front corner panel, if required.

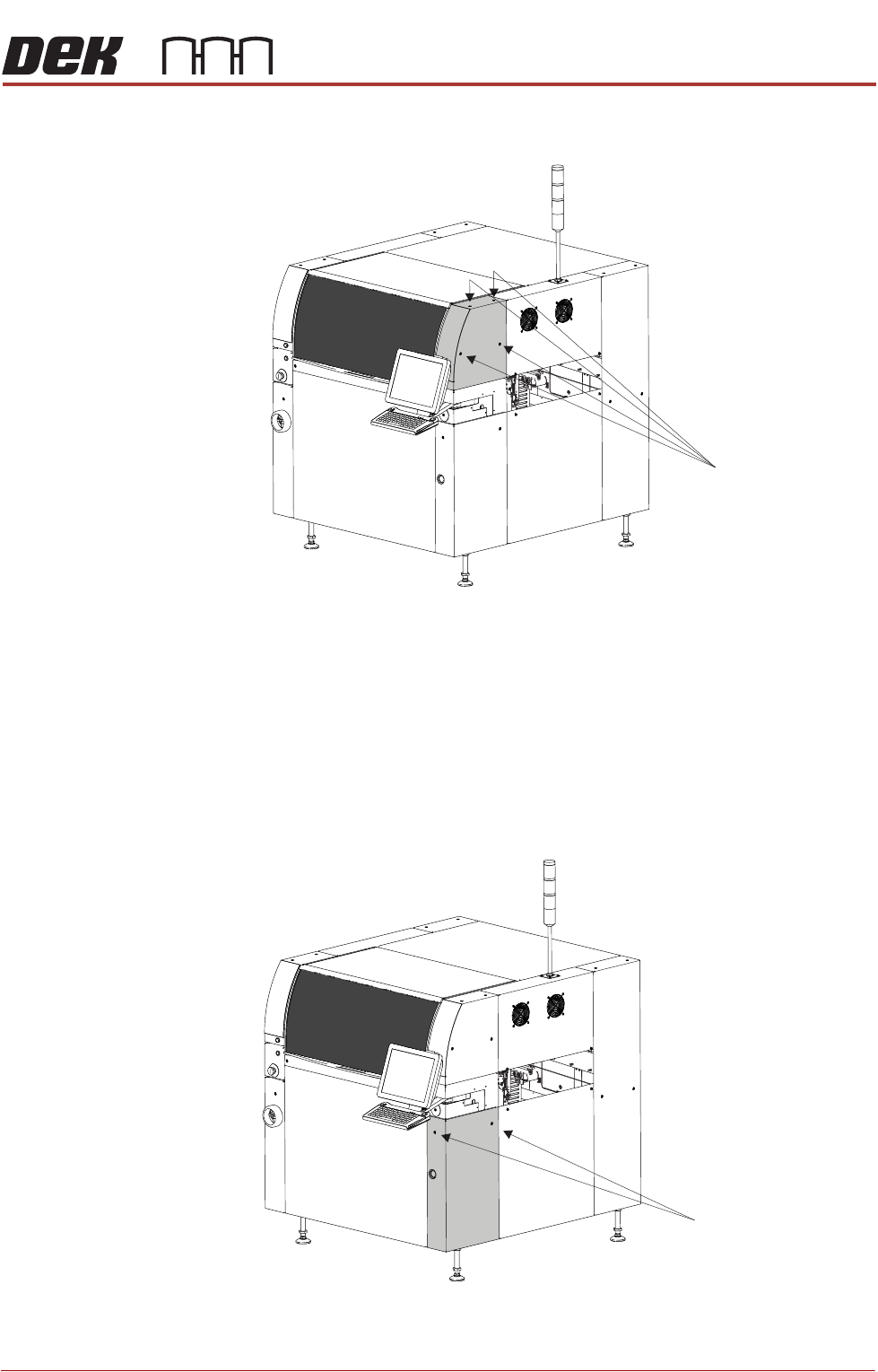

Captive Screws
(in 4 positions)
Front Right Quarter View
Captive Screws
Front Right Quarter View
COVERS
PRINTER COVERS
2.38 Installation Manual Chapter Issue 12, Feb 18
MMI Arm Panels To remove the MMI Arm panels, carry out the following:
1. Open the front printhead cover.
NOTE
1. Before an MMI panel can be removed, the control switches (jog switch
and system switch) must be disconnected.
2. Before removing the right MMI panels, disconnect the connector for the
printhead safety switch.
3. Before removing an MMI arm panel, the upper and lower front corner
panels need to be removed first.
2. Locate the two release slots in the contact assembly part of the
switch.
View on Rear of Switch
1 Release Slot 3 Switch Body
2 Contact Assembly
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.39
3. To disconnect the system switch and jog buttons carry out the following:
a. Locate the two release slots in the contact assembly part of the switch.
b. Insert the switch release tool (Part No 188647) into the slots and push
until the release tool clicks into place.
c. Leaving the switch release tool in position, pull the contact assembly from
the switch body.
d. Remove the switch release tool from the contact assembly.
NOTE
To refit the contact assembly to the switch body, using the locating
keyway, push the two units together until they click into place.
4. Using a 4mm Allen key, undo the appropriate four captive screws.
5. Remove the panel clear of the printer, taking care not to damage the earth
cable.

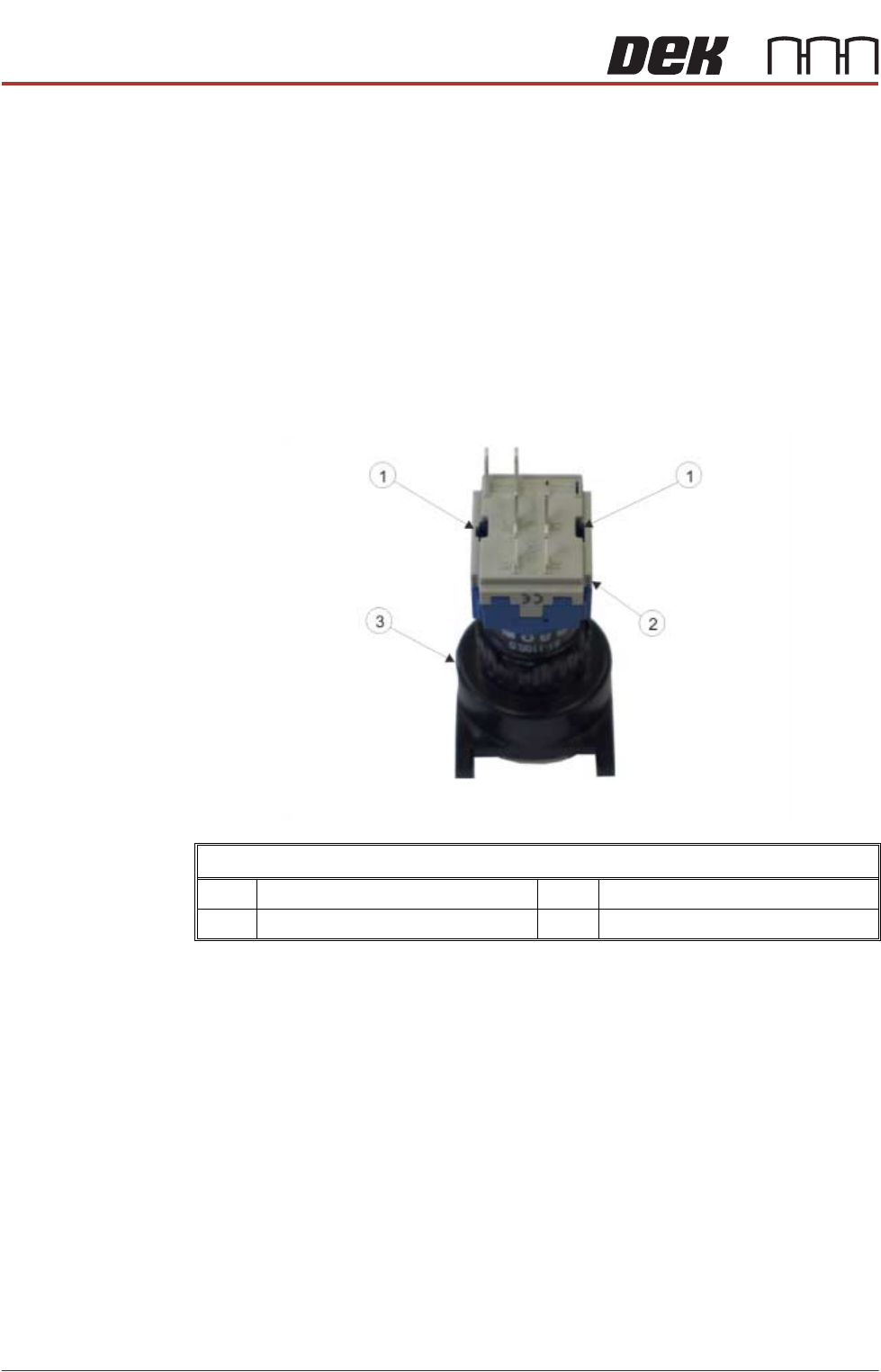

View on Rear of Switch
1 Switch Body
2 Contact Assembly
3 Switch Release Tool
