COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.45
Upper Rear Panel
MANDATORY
HEAVY OBJECT. LIFTING OR RESITING MUST BE UNDERTAKEN BY TWO
PEOPLE.
To remove the upper rear panel, carry out the following:
1. Using a 4mm Allen key, undo the four captive screws.
2. Lift the panel clear of the printer frame, taking care not to damage the earth
cable.
Safety Covers Safety covers are fitted to the side panels to protect personnel from inadvertent
access to the board entry/exit ports.
Rear Left Quarter View
M5 Captive
Screws
M5 Captive
Screws
COVERS
PRINTER COVERS
2.46 Installation Manual Chapter Issue 12, Feb 18

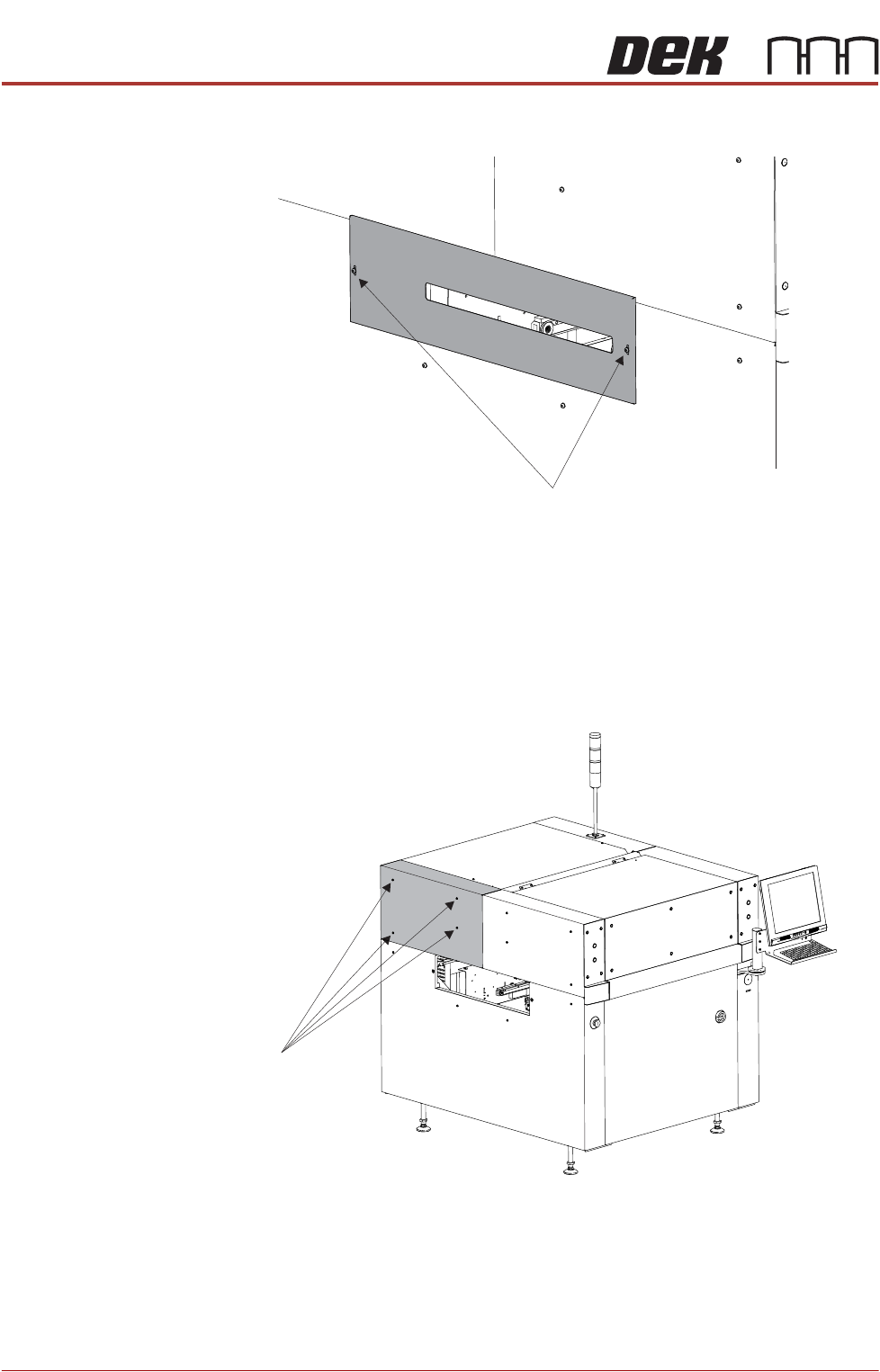

To remove the safety cover, remove the two securing screws.
Rear Corner Panels To remove the rear corner panels, carry out the following:
1. Remove the Left Hand Safety Cover (as detailed previously).
2. Remove the Right Hand Safety Cover (as detailed previously).
3. Using a 4mm Allen key, undo the appropriate four captive screws.
4. Lift the panel clear of the printer frame, taking care not to damage the earth
cable.
5. Repeat Steps 3 and 4 for the other rear corner panel, if required.
Safety Cover Securing Screws
Front Left Quarter View
Captive Screws
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.47
Upper Front Corner
Panels
To remove the upper front corner panels, carry out the following:
1. Open the front printhead cover.
NOTE
Before a front corner panel can be removed, the control switches (jog switch
and system switch) must be disconnected.
2. Locate the two release slots in the contact assembly part of the
switch.
View on Rear of Switch
1 Release Slot 3 Switch Body
2 Contact Assembly
