COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.53
Electrostatic
Protected Area
(EPA)
The EPA cover package option is available for the Type 2 Cover printer only.
Each panel on the printer is coated in a conductive layer and the panels are
electrically connected to the adjacent panel creating the Electrostatic Protected
Area. The panels are electrically grounded ensuring surface static deposition is
kept well below 100 Volts.
Figure 6-2 Contact Points
Figure 6-3 Contact Studs
NOTE
This panel is bonded via
the internal gas struts.
3. Two contact clips
per base plate
1. Left and right hand panel frame mountings
4. Left and right hand
rear panel frame mountings
2. Front panel
frame mountings
2
1
2
1
4
3
3
3
3
Studs are spring loaded
and have a threaded body
Contact Studs
COVERS
PRINTER COVERS
2.54 Installation Manual Chapter Issue 12, Feb 18

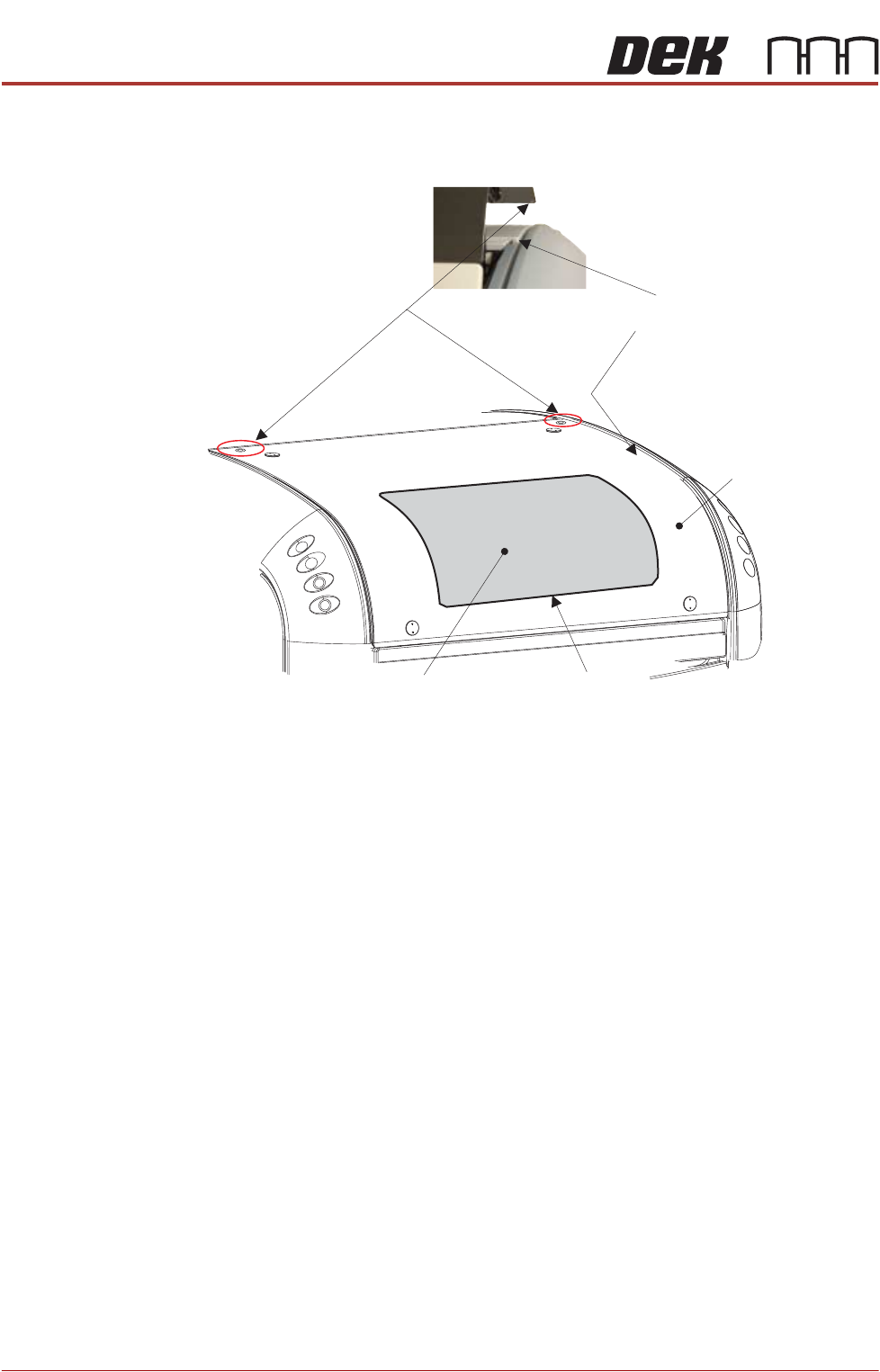

The glass printhead cover is replaced with an aluminium cover with a conduc-
tive Perspex window, fitted with a conductive seal.
Figure 6-4 Printhead Cover
NOTE
For the Electrostatic Protected Area to work effectively, all panels must be fitted
correctly and the printhead cover closed.
Aluminium Cover
Cover Contact Pads
Conductive Perspex Window
Conductive Seal
Studs
(under front cover on upper side panels)
COVERS
PRINTER COVERS
Chapter Issue 12, Feb 18 Installation Manual 2.55

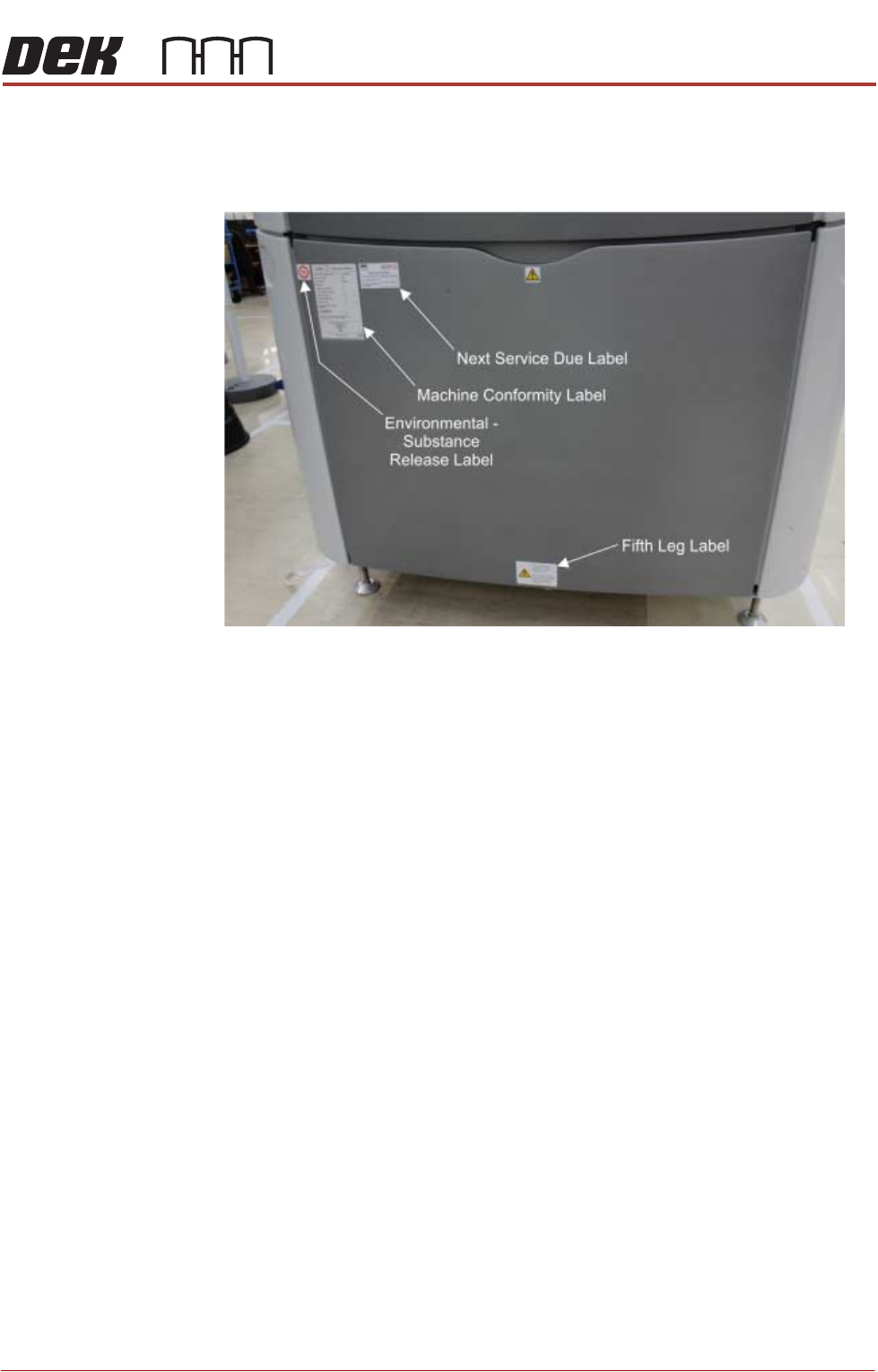

Rear Panel Labels The rear cover has five labels (one is a general safety label and not detailed
here). The labels are used to inform users of printer safety, delivery status and
environmental condition.
Fifth Leg This label warns the user to retract the fifth leg after the printer has been
levelled.
Environmental -
Substance Release
This label complies with RoHS (China) legislation. It indicates that hazardous
substances, present in the printer, are not released for at least an industry
agreed time period. The number (15) within the symbol indicates the number of
years before the substance may be released.
In the DEK printer, the items listed in the RoHS certificates SJ/T11363-2006
supplied with the printer, contain lead.
Printer Conformity This label gives the following information:
• Model Designation
• Machine Serial Number
• Machine Sales Order Number
• Machine Type
• Nominal Voltage
• Full Load Current Rating
• Frequency
• Number of Electrical Phases
• Pressure Range
• Year of Manufacture
• Date of Refurbishment
• Short Circuit Current
