番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No. QTY Description Rating Remarks
45MQC3581 1 BKT BKT
46MQC3570 1 PLATE ﾌﾟﾚｰﾄ
47MQC3540 1 BKT, SENSOR BKT ｾﾝｻｰ
48MQC3550 1 BKT, SENSOR BKT ｾﾝｻｰ
49MQC1500 1 BKT BKT
50S3122A 3 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
51S3122Z 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4
53WQC0042 1 JOINT ｼﾞｮｲﾝﾄ
54IQC6061 24 NUT ﾅｯﾄ
55IQC6071 4 NUT ﾅｯﾄ HELPS機6個(6 when HELPS-compatible)
56JQC3672 4 NUT ﾅｯﾄ
57MQC3461 1 SHAFT ｼｬﾌﾄ
58MQC1292 4 PULLEY ﾌﾟｰﾘ
60MQC3313 2 GUIDE ｶﾞｲﾄﾞ
62MQC1061 4 PULLEY ﾌﾟｰﾘ
63IQC6041 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
64MQC3254 1 BRIDGE ﾌﾞﾘｯｼﾞ
65MQC3441 8 WASHER ﾜｯｼｬ
66WQC0010 4 BOLT ﾎﾞﾙﾄ
67N1092A 8 NUT, HEX ﾅｯﾄ 六角 M10 P=1.5
68N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
69N4027A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X5L
70W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
71W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
72W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
73W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
74W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
75W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
76W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
77W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
78W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
79W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
80N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
81N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
82H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L
83H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
84H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
85H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
86H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L
87H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
88H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
89H5296X BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X90L
90H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L
91H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
3-3
3.In conveyor(WQC) インコンベア
CP-642 PARTS LIST ver08
3.In conveyor(WQC) インコンベア
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No. QTY Description Rating Remarks
92H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
93K5261A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X10L
94K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
95K5186T SCREW, COUNTERSUNK 小ﾈｼﾞ 皿 M4X6L
96K5177A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2.5X14L
97MQC1160 4 PULLEY ﾌﾟｰﾘ
98MQC1170 4 BOLT ﾎﾞﾙﾄ
99MQC1181 4 COLLAR ｶﾗｰ
100H4129A 8 BEARING ﾍﾞｱﾘﾝｸﾞ LF950ZZ
101WQC0120 2 HOLDER 受け
102WQC0521 1 COVER, CHAIN ｶﾊﾞｰ ﾁｪｰﾝ HELPS
103MQC0141 1 BKT, SENSOR BKT ｾﾝｻ HELPS
104WQC0130 1 BKT BKT
109GVC4070 1 SPACER ｽﾍﾟｰｻ HELPS
112S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A HELPS
114H5332A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X50L
115. SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X15L
116W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
117MQC4092 1 BKT BKT HELPS
118GVC2182 1 BKT, SENSOR BKT ｾﾝｻ HELPS
119WQC0560 1 BKT BKT
125H5181A BOLT, HEX ﾎﾞﾙﾄ 六角 M6X12L
126WQC4100 1 BRIDGE ﾌﾞﾘｯｼﾞ
127IQC6290 1 NUT ﾅｯﾄ
128WQC0111 1 BKT BKT
129GVC2311 1 SHAFT ｼｬﾌﾄ
130H1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
131WQC4160 1 BKT BKT
132WQC4340 1 BKT BKT
133S3130T 1 SW, PHOTOELECTRIC SW 光電 PS-49
134A1040H 1 AMPLIFIER ｱﾝﾌﾟ PS2-61
135H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
136WQC5091 2 BELT ﾍﾞﾙﾄ
137H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L ･
3-4
3.In conveyor(WQC) インコンベア
CP-642 PARTS LIST ver08
3.In conveyor(WQC) インコンベア
4-1

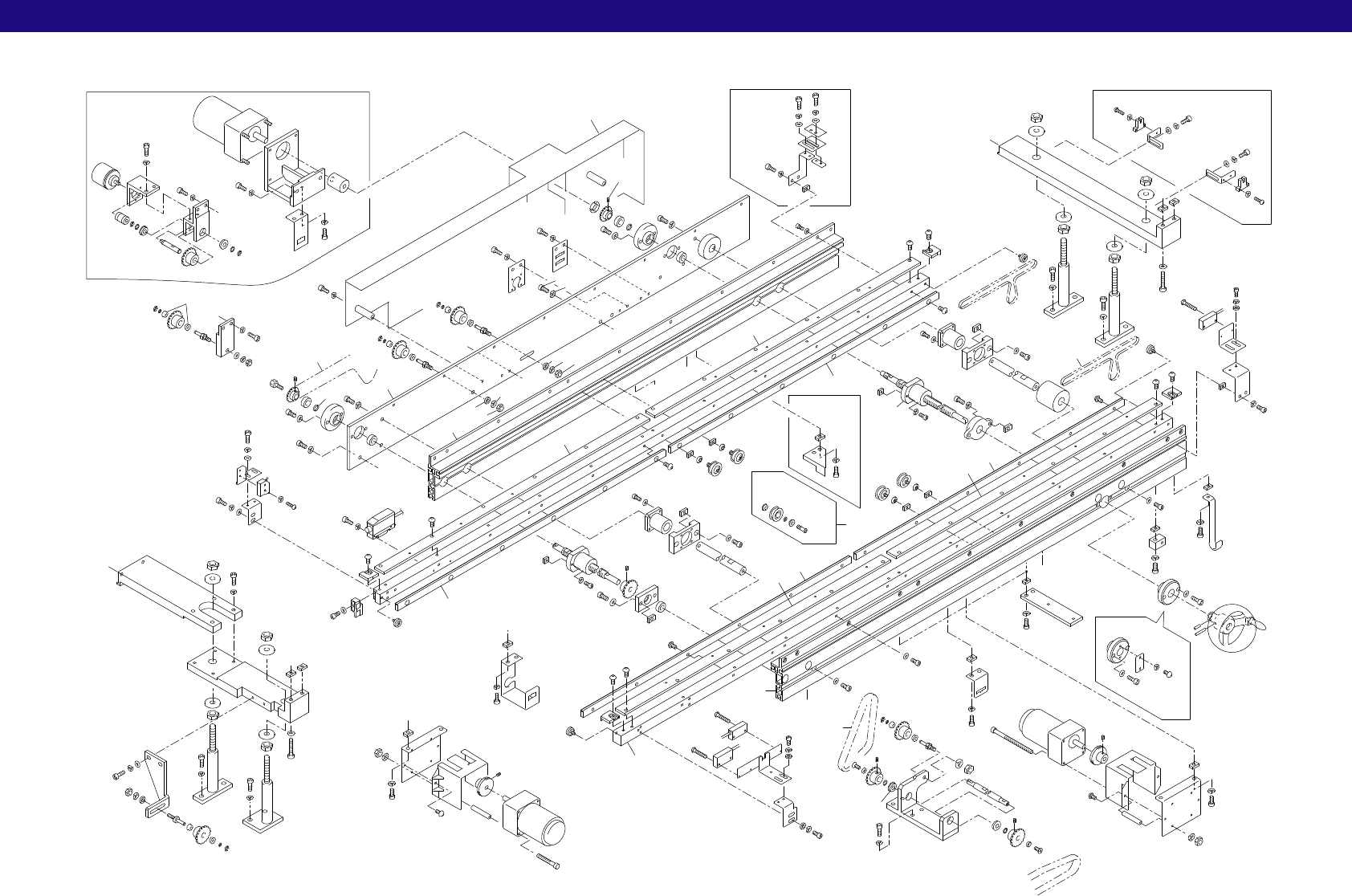

4.Out conveyor(WQC) アウトコンベア
CP-642 PARTS LIST ver08
4.Out conveyor(WQC) アウトコンベア
