番号図番 & ｺｰﾄﾞ番号個数品名規格備考 N o . D r g . N o . & C o d e N o . Q T Y D e s c r i p t i o n R a t i n g R e m a r k s 5 4 H 5 2 9 4 A B O L T , H E X S O C K E T ﾎﾞﾙﾄ六角穴 M 4 X 3 0 L 7 1 H 5 1 4 5 H 6 B O L…

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No. QTY Description Rating Remarks

1WAF1259 1 FENCE, SAFETY ﾌｪﾝｽ安全

2WAF1564 1 PLATE ﾌﾟﾚｰﾄ

3WAF2320 1 STAND ｽﾀﾝﾄﾞ

4WAF2330 1 STAND ｽﾀﾝﾄﾞ

5AWAF5840 2 COVER ｶﾊﾞｰ

6WAF1080 4 RETAINER, COVER 押えｶﾊﾞｰ

9WAF1630 1 STAND ｽﾀﾝﾄﾞ

10WAF1620 1 STAND ｽﾀﾝﾄﾞ

11WAF0991 2 PLATE ﾌﾟﾚｰﾄ

12BPZ3023 2 STAND ｽﾀﾝﾄﾞ

13GXZ2240 4 RETAINER, COVER 押えｶﾊﾞｰ

15GPZ2460 1 BKT BKT

16WAF2160 3 BKT, RETAINER BKT 押え

17H1073F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP

18S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01

19S2171A 6 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄﾜﾝﾀｯﾁ TL6-01

20GPZ4221 1 BKT BKT

21GPZ4290 1 COVER ｶﾊﾞｰ

22GPZ4242 1 SPACER ｽﾍﾟｰｻ

23S3197A 1 SW, LIMIT SW ﾘﾐｯﾄ XCK-J5970

24S3199A 1 SW, LIMIT SW ﾘﾐｯﾄ ZCK-Y09

25SZ42002 1 BOLT ﾎﾞﾙﾄ

26M1013A 1 MAGNET ﾏｸﾞﾈｯﾄ KM025C

27H2129A 2 INDICATOR LAMP 表示灯 STF101F-AC

29AWEM7301 1 BOX, SW BOX, SW Set parts

31AWEE7503 2 BOX TERMINAL BOX ﾀｰﾐﾅﾙ Set parts

33H1018D 1 HANDLE ﾊﾝﾄﾞﾙ THA-299-2

36H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X8L

37H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X16L

38H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X16L

40H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X25L

41H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M8X16L

42K5215A SCREW, TRUSS 小ﾈｼﾞﾄﾗｽ M5X10L

43W1022A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M

44W1023A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 5M/M

45W1024A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M

46W1025A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 8M/M

47W1043A WASHER, FLAT ﾜｯｼｬ平 4W-4

48W1044A WASHER, FLAT ﾜｯｼｬ平 4W-5

49W1045A WASHER, FLAT ﾜｯｼｬ平 4W-6

50N1085A NUT, HEX ﾅｯﾄ六角 M6 P=1.0

51H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M8X35L

52H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X40L

53H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X10L

43-2

43.Fence(Option)(WAF) フェンス(オプション)

CP-642 PARTS LIST ver08 CP-642 PARTS LIST ver08

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No. QTY Description Rating Remarks

54H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X30L

71H5145H 6 BOLT, LEVELING ﾎﾞﾙﾄﾚﾍﾞﾘﾝｸﾞ TM-257-No3 (Option)

73S2037A 1 SEAL ｼｰﾙ DE9-PL113043

74WAF0572 1 FENCE ﾌｪﾝｽ (Option)

75WAF0582 1 FENCE ﾌｪﾝｽ (Option)

76WAF0620 4 JOINT ｼﾞｮｲﾝﾄ (Option)

77AGPZ8141 2 COVER ｶﾊﾞｰ (Option)

78GPZ4320 4 RETAINER, COVER 押えｶﾊﾞｰ (Option)

87H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X12L

88W1021A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M

89W1042A WASHER, FLAT ﾜｯｼｬ平 W4-3

90K5207A SCREW, TRUSS 小ﾈｼﾞﾄﾗｽ M4X5L

91. SCREW, COUNTERSUNK 小ﾈｼﾞ皿 M3X4L

100WAF0660 2 COVER ｶﾊﾞｰ H=900∼965 (Option)

101Y3033A 2 UNION, HALF ﾕﾆｵﾝﾊｰﾌ KCH06-00

102WAF0800 3 BKT, SENSOR BKT ｾﾝｻ

104S4036T 3 SENSOR, AREA ｾﾝｻｴﾘｱ NA40-8 Set parts

110H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X12L

111GXZ2240 4 RETAINER, RAIL 押えﾚｰﾙ (Option)

112WAF2093 12 BKT, SENSOR BKT ｾﾝｻ For GL-Ⅱ (Option)

113WAF0651 1 FENCE ﾌｪﾝｽ For GL-Ⅱ (Option)

114WAF0660 1 COVER ｶﾊﾞｰ For GL-Ⅱ (Option)

115WAF0620 2 JOINT ｼﾞｮｲﾝﾄ For GL-Ⅱ (Option)

116GXZ2240 2 RETAINER, COVER 押えｶﾊﾞｰ For GL-Ⅱ (Option)

117GXZ2300 1 COVER ｶﾊﾞｰ For GL-Ⅱ (Option)

118GXZ2310 2 RETAINER, COVER 押えｶﾊﾞｰ For GL-Ⅱ (Option)

119H5145H 2 BOLT, LEVELING ﾎﾞﾙﾄﾚﾍﾞﾘﾝｸﾞ TM-257-No3 For GL-Ⅱ (Option)

120M6X10L SCREW, C/R PAN 小ﾈｼﾞ十穴鍋

121MPZ6321 1 HOOK ﾌｯｸ

122H5175A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X10L

123WAF0551 1 FENCE, SAFETY ﾌｪﾝｽ安全

124WAF0561 1 FENCE, SAFETY ﾌｪﾝｽ安全

125WAF0670 1 FENCE ﾌｪﾝｽ For GL-541E (Option)

126WAF0680 1 COVER ｶﾊﾞｰ For GL-541E (Option)

127AWAF8530 1 COVER ｶﾊﾞｰ For GL-541E (Option)

128WAF0700 2 COVER, RETAINER ｶﾊﾞｰ押え For GL-541E (Option)

129WAF0620 2 JOINT ｼﾞｮｲﾝﾄ For GL-541E (Option)

130GXZ3020 2 COVER, RETAINER ｶﾊﾞｰ押え For GL-541E (Option)

131H5145H 1 BOLT ﾎﾞﾙﾄ TM-257-No.3 For GL-541E (Option)

43-3

43.Fence(Option)(WAF) フェンス(オプション)

CP-642 PARTS LIST ver08

43.Fence(Option)(WAF) フェンス(オプション)

44-1

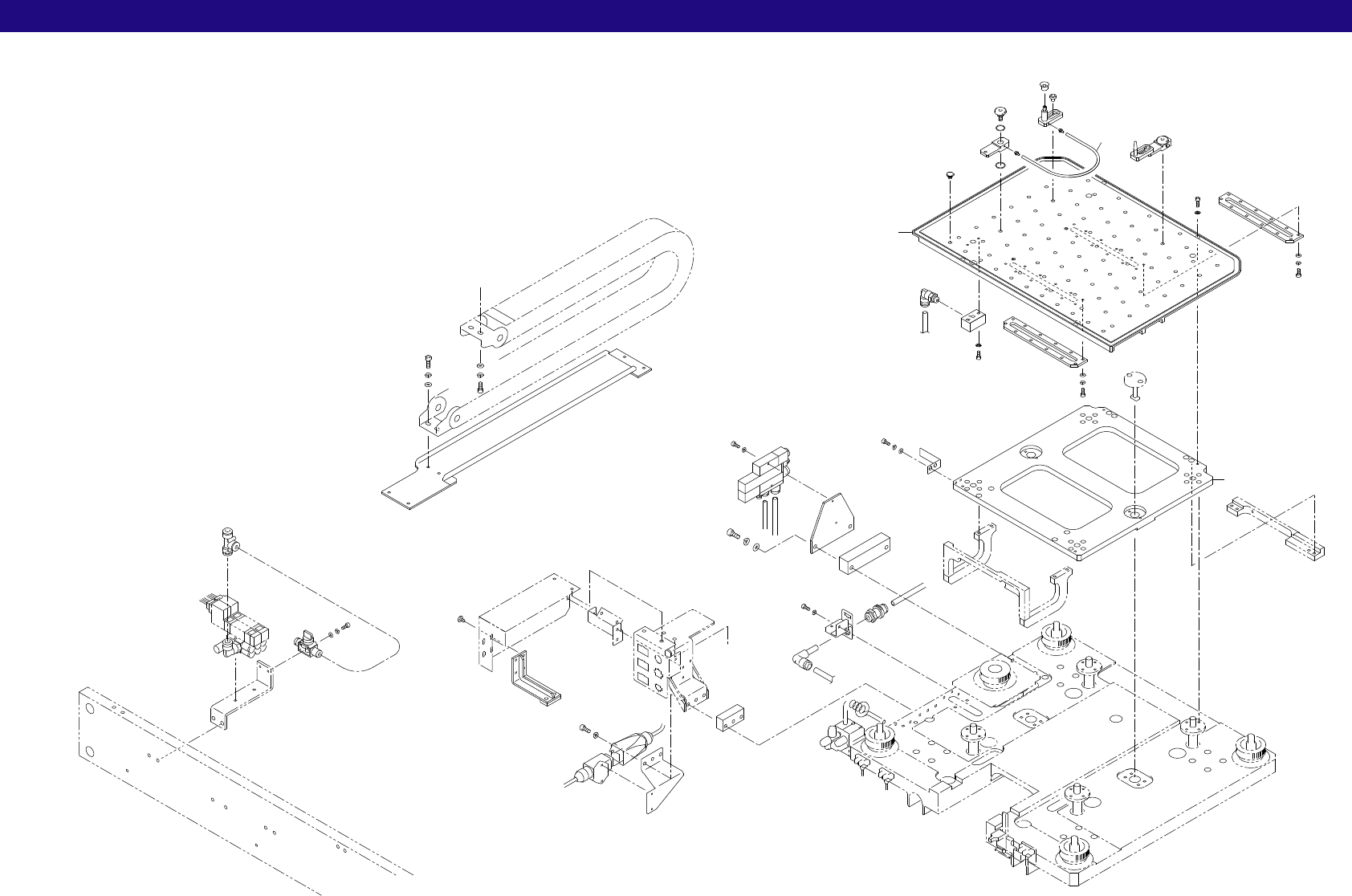

44.Vacuum back up(Option)(WSZ) バキュームバックアップ(オプション)

CP-642 PARTS LIST ver08

44.Vacuum back up(Option)(WSZ) バキュームバックアップ(オプション)
