番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No. QTY Description Rating Remarks
18WSS4302 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
19WSS4312 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
20WSS4351 2 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
36WSS4720 1 BKT, SENSOR BKT ｾﾝｻ
37WSS4730 1 BKT, SENSOR BKT ｾﾝｻ
38WSS4742 2 PLATE ﾌﾟﾚｰﾄ
39WSS4750 2 DOG ﾄﾞｯｸﾞ
40WSS4760 1 PIN, LOCATING ﾋﾟﾝ 位置決め φ3 注1. Note1.
41AWSS8510 1 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ3 注2. Note2.
48GPT0550 2 SPRING ｽﾌﾟﾘﾝｸﾞ
49GPT0560 1 SPRING ｽﾌﾟﾘﾝｸﾞ
73S1021A 3 SIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3
99S4032T 1 SENSOR ｾﾝｻ UM-T50N
105WSS4842 1 GUIDE ｶﾞｲﾄﾞ
106WSS4851 1 COVER 蓋
107WSS4863 1 COVER 蓋
108WSS4874 1 CLAMPER ｸﾗﾝﾊﾟ
109WSS4884 1 CLAMPER ｸﾗﾝﾊﾟ
110WSS4892 1 BLOCK ﾌﾞﾛｯｸ
111WSS4902 1 BLOCK ﾌﾞﾛｯｸ
112WSS4911 1 COVER ｶﾊﾞｰ
113WSS4921 1 COVER 蓋
114WSS4933 1 COVER 蓋
115WSS4941 1 COVER 蓋
116WSS4953 1 COVER 蓋
121K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M5X10L
122K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ    M3X6L
127W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
139H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L
141H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
142W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
143H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L
149WSS5250 1 PIN, PIVOT ﾋﾟﾝ 支点
153WSS5340 1 BLOCK ﾌﾞﾛｯｸ
154WSS5350 1 LEVER ﾚﾊﾞｰ
155WSS5360 1 BLOCK ﾌﾞﾛｯｸ
156WSS5370 1 LEVER ﾚﾊﾞｰ
157H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
[注1.仕様選択部品]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
[注2.仕様選択部品]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ),AWSS8570(3.4ﾟ)
6-6
6.2.Board clamping unit(WSS) 基板クランプ
CP-642 PARTS LIST ver08
6.2.Board clamping unit(WSS) 基板クランプ
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No. QTY Description Rating Remarks
AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)
[Note.1:(Specified part selection)]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
[Note.2:(Specified part selection)]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ),AWSS8570(3.4ﾟ)
AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)
･
6-7
6.2.Board clamping unit(WSS) 基板クランプ
CP-642 PARTS LIST ver08
6.2.Board clamping unit(WSS) 基板クランプ
7-1

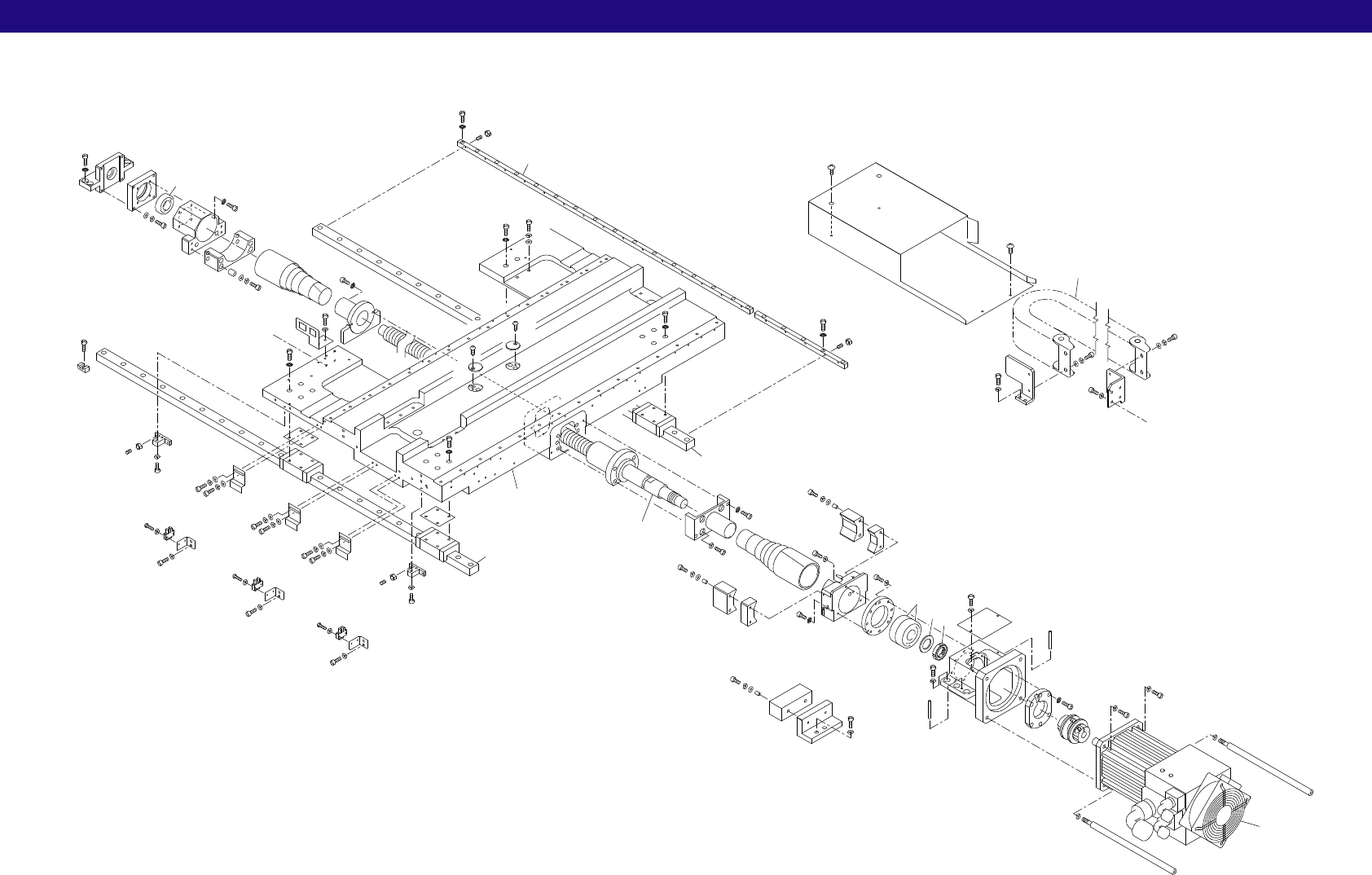

7.X slide(WSX) X スライド
CP-642 PARTS LIST ver08
7.X slide(WSX) X スライド
81
65
22
23
30
76
77
66
51
3
50
68
46
67
81
69
81
62
81
69
55
69
55
69
75
45
60
16
24
1
2
74
63
58
67
47
4
43
43
11
46
60
64
64
60
46
37
61
49
41
59
71
37
61
49
42
59
71
36
50
A
61
42
59
71
37
49
11
46
60
64
64
60
46
11
46
60
64
64
60
46
60
47
72
78
80
60
47
72
78
80
50
68
70
72
13
14
50
68
70
72
65
33
35
39
51
61
61
84
24
84
83
15
83
32
54
62
65
50
61
9
65
62
54
10
53
62
77
73
50
68
28
19
29
17
46
60
57
63
40
40
5
60
44
20
21
87
25
63
58
63
58
63
26
27
A
34
34
52
61
39
86
86
39
61
51
82
82
68
50
26
63
46
67
85
57
88
39
61
86
52
