7-2 SME Tape Feeder Calibra tion Jig NO. P ART NO. P ART NAME Q'TY REMARK 1 FC28-000168 RU BBER LEG 4 2 FC15-004764A P ANEL E DGE 1 3 FC14-002137 U SB2USB HOLDER 1 4 FC28-000180 K NOB 2 5 FC05-001 195A BASE -C 1 6 J…
7-1
Service Part List
7 . Service Part List
7.1. Service Part List
7.1.1. Service Part List
7-2

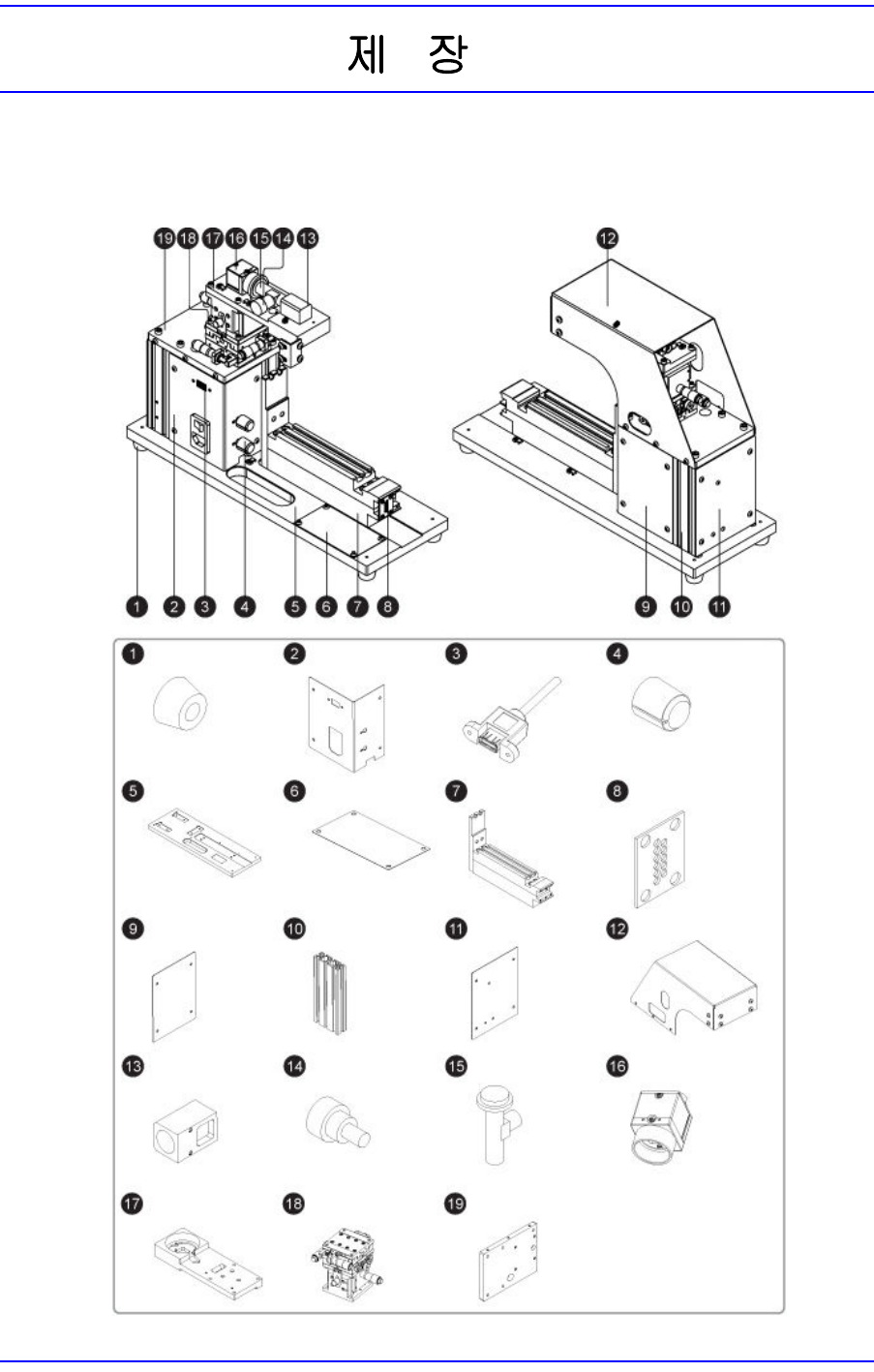

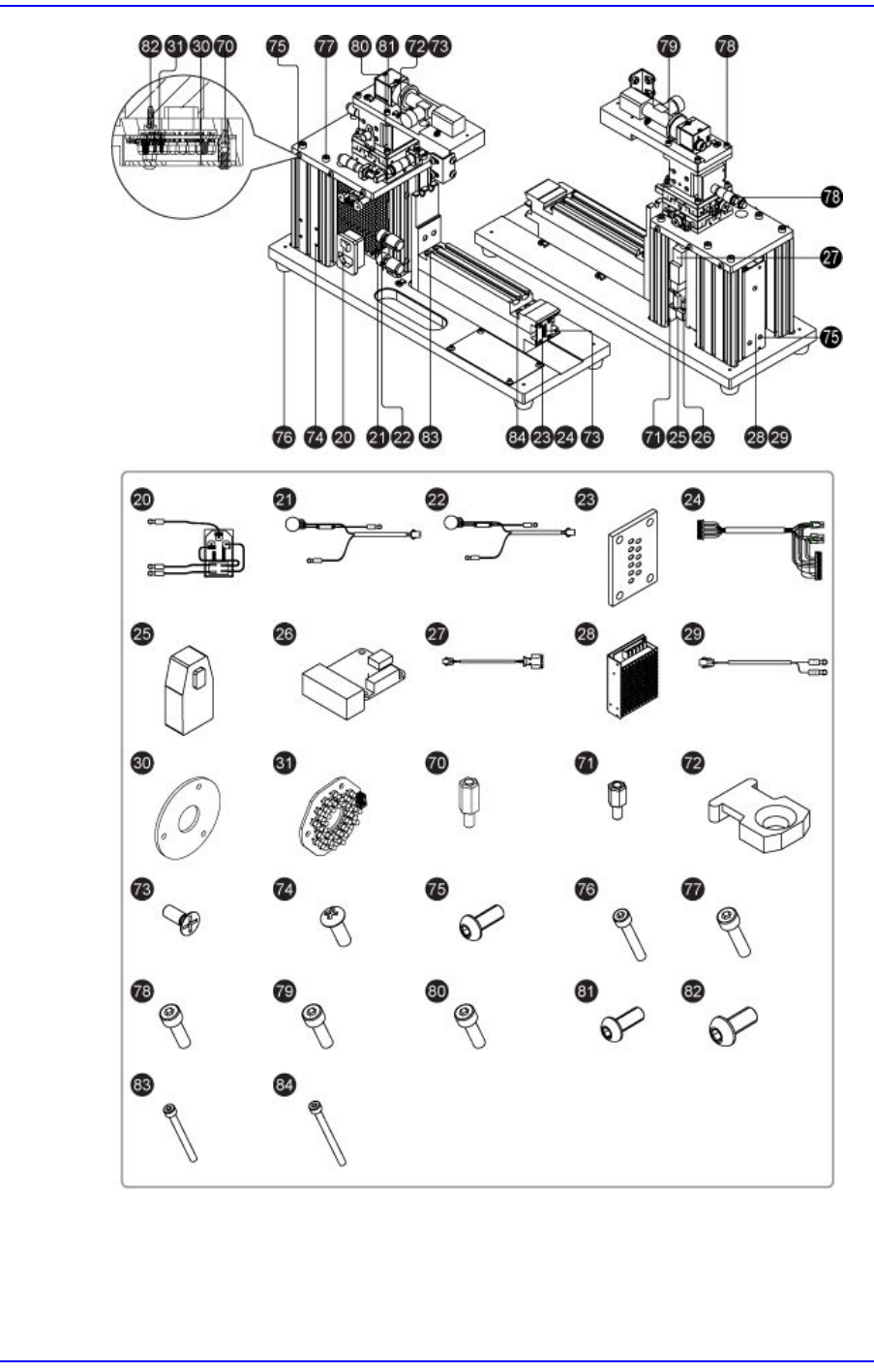

SME Tape Feeder Calibration Jig
NO. PART NO. PART NAME Q'TY REMARK
1 FC28-000168 RUBBER LEG
4
2 FC15-004764A PANEL EDGE
1
3 FC14-002137 USB2USB HOLDER
1
4 FC28-000180 KNOB
2
5 FC05-001195A BASE-C
1
6 J90991065A CE ROHS PLATE ASSY
1
7 AM03-021347A SME FEEDER BASE ASSY-C
1
8 FC15-004762A FEEDER BOARD COVER-C
1
Cover
9 FC15-004765A PANEL SIDE-C
1
10 FC29-007787A UPPER BASE SUPPORT-C
3
11 FC15-004766A PANEL SMPS 1
12 AM03-021620A UPPER BASE COVER ASSY 1
13 EP12-001004 MIRROR BOX 1
14 EP13-001028 SME8 JIG COAXIAL LIGHT 1
15 EP14-001017 COAXIAL LENS-C 1
16 PT02-001033 CAMERA-C 1
17 FC09-007331A CAMERA BRACKET-C 1
18 AM03-001101 XYZ STAGE-C 1
19 FC05-001196A UPPER BASE-C 1
7-3
Service Part List
