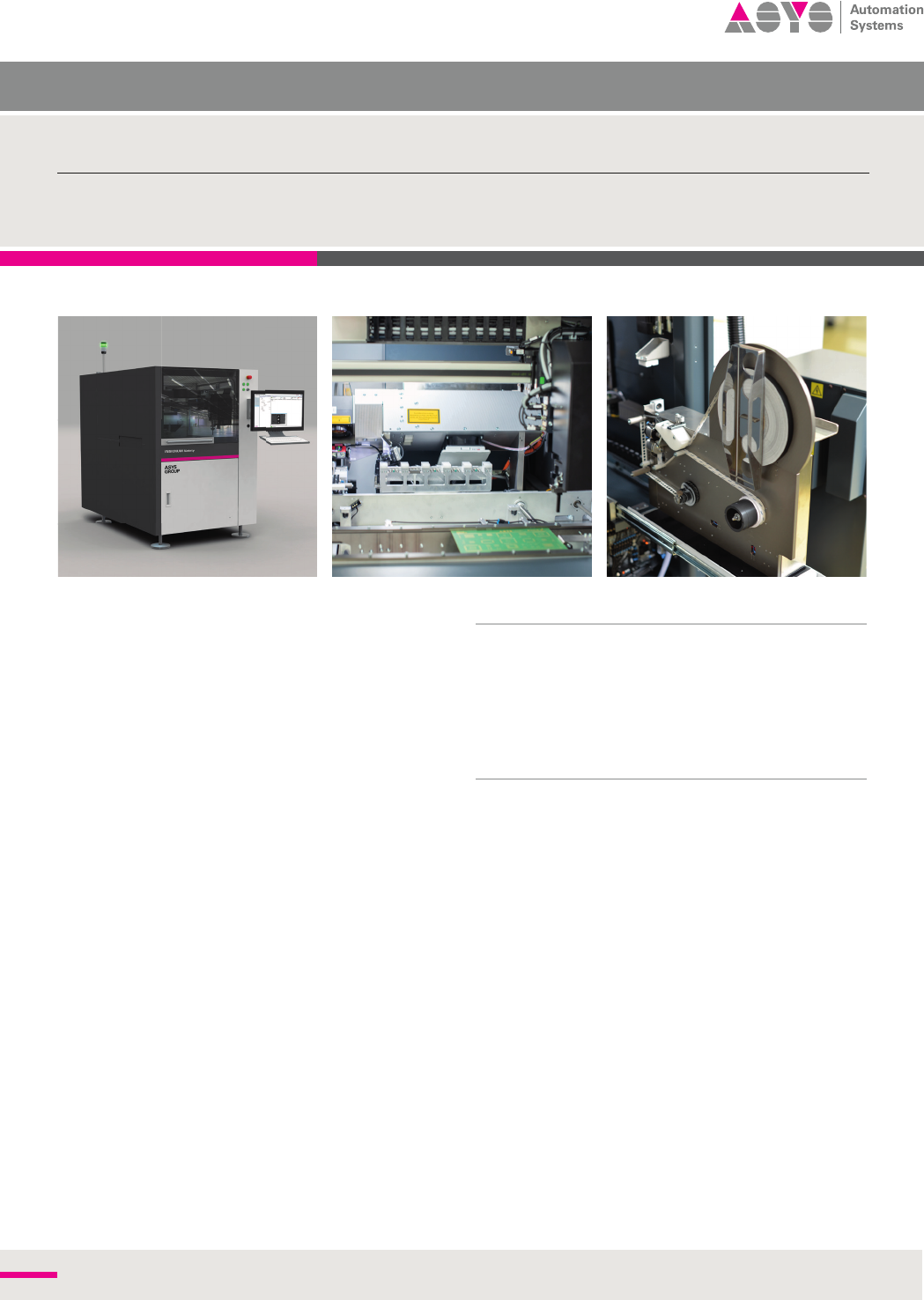

INSIGNUM Series – Power and Precision in Marking
INSIGNUM Laser
Description
The INSIGNUM Variety is a fl exible system for marking and
cutting labels via laser. In contrast to standard systems, the
machine can mark many different types of materials and apply
the labels onto components with variable heights. A particular
highlight is the machine’s ability to mark any label size.
A laser-markable foil is fed from a roll into the machine. The
laser subsequently marks the foil and cuts it to the required
size in one step. The machine thus combines the best features
of labelling and laser marking into one system. To reach the
required accuracy, a camera system fi rst measures the label.
Using an adjustable servo driven axis in X, Y and Z, the label
is positioned and applied to components up to a height of 40
mm in one continuous process. To ensure easy maintenance
and handling, the label feeder is installed in a drawer which
can be pulled out when new material is required. Product-
specifi c data and labels can be confi gured and saved via the
machine software.
Features
_ Labeling and cutting in one process step
_ Labeling of different component heights
_ Low maintenance
_ Label size up to 36mm
Options
_ Rotating applicator head ± 360°
_ Optical correction system
_ Quick change nozzle system
_ Fiducial
_ Bad mark
_ Orientation check
_ Integrated fl ip station
Inline Laser Marking System
INSIGNUM Variety
INSIGNUM_Variety_210315_DS_CC_E
INSIGNUM
For more information visit
www.asys-group.com
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
INSIGNUM Variety
Machine conguration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
850 mm ± 50 mm
460 mm
Siemens, SMEMA
From left to right / from right to left
Front of the machine
Front of the machine
Panel dimensions
Panel length
Panel width
Panel thickness
Panel weight
Component height
70 to 460 mm
50 to 460 mm
0.8 to 4.0 mm
Up to 3 kg
+ / - 40 mm
Installation requirements
Power supply
Power supply system
Power consumption
Air supply
Air consumption
230 V / 115 V, 50 / 60 Hz, ± 10 %
L1 + N + PE
0.79 kW
6 bar
<10 Nl/min
Machine description
Length × width × height
Max laser window
Codes
Noise Level
1000 × 1548 × 1580 mm
105 × 105 mm
7.5 mil dots
< 75 dB
Upgrades
Machine networking via IC Net

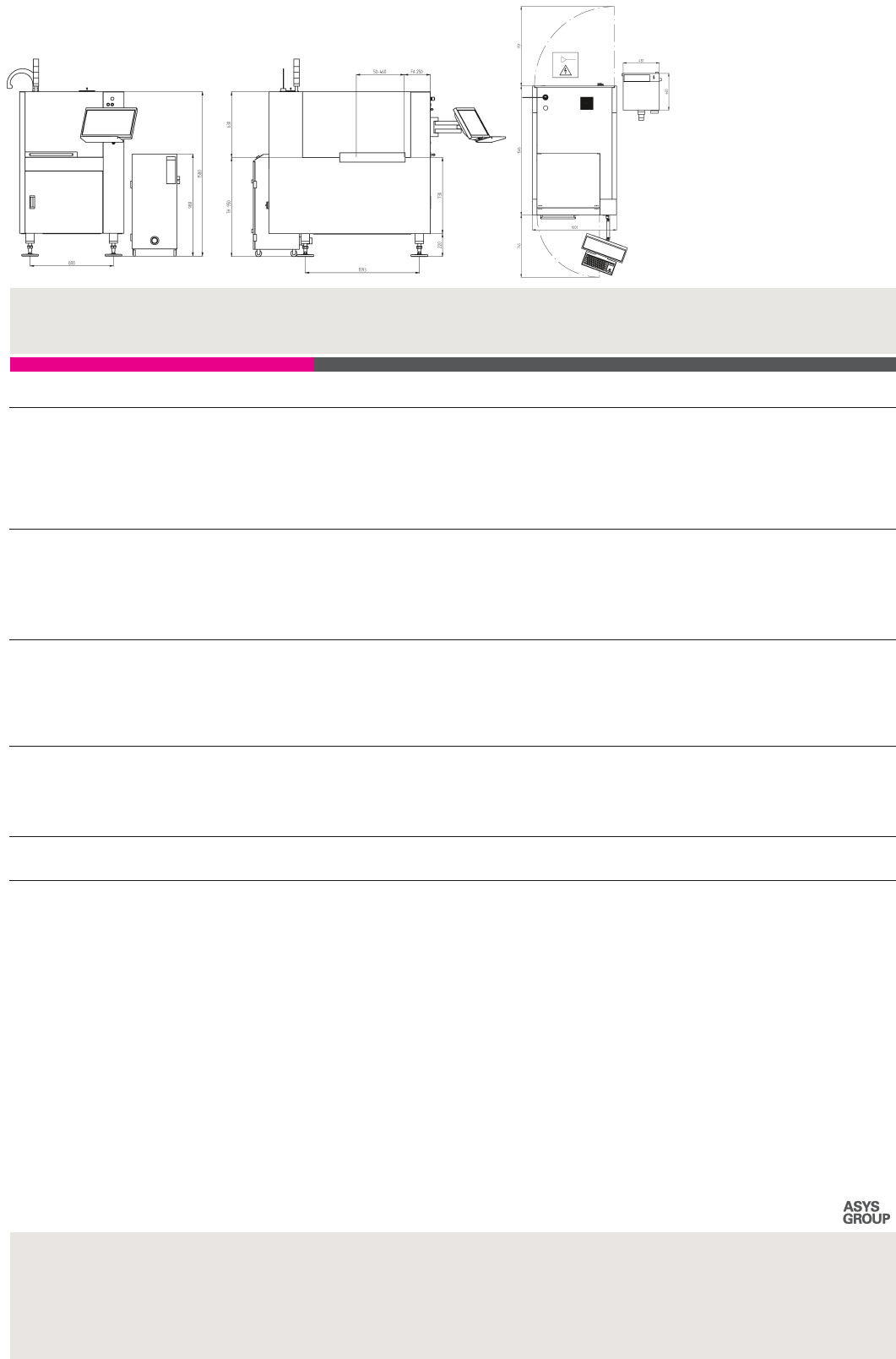

Top view:
