Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
3.2 Upgrade from Version 601.x or 602.x
Caution:
For upgrading to the software version 604.x, please consider the installation manual “Windows
Embedded XP operating system for the MC German and English” (00195327-xx).
Therfor, the standard media package (03054699-xx) is required.
- For SIPLACE X4, X2 and X3 machines with CPU 076 the following upgrade packages for the machine
controller are required:
- Upgrade package for SIPLACE X4 with CPU 076 for computer upgrade to CPU 086
Item number: 03029123S03
- Upgrade package for SIPLACE X2 and X3 with CPU 076 for 128 MB memory expansion
Item number: 03051831

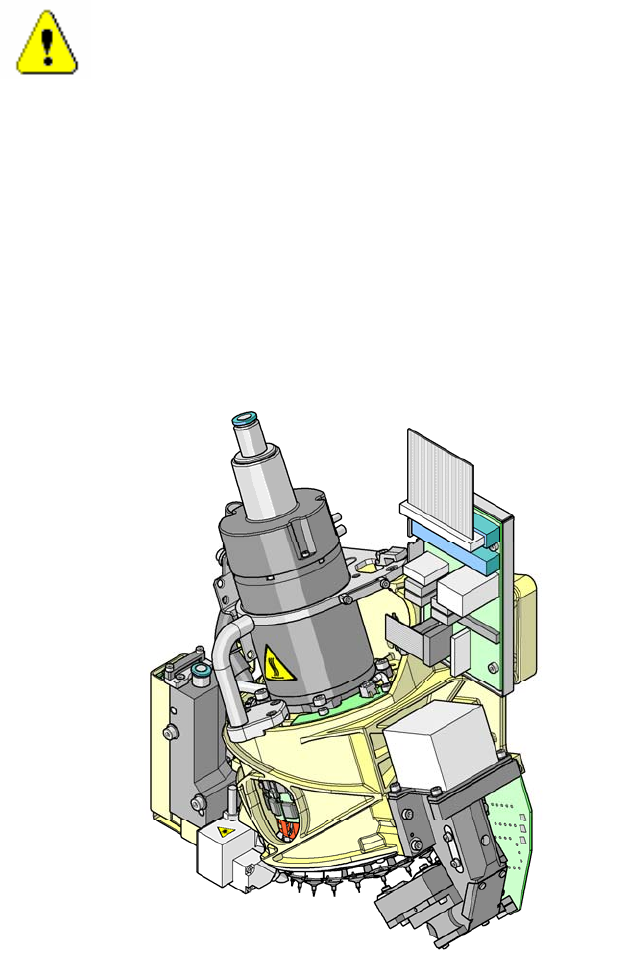

- Fix the temperature warning labels (03031926-01) at the C&P20 head (see the figure).
- After an upgrade to the 604.xx software version, calibrate the heads of the D1, D2 and D4 machines.
The temperature compensation is activated for these machines.
- If the machine can not be started after the upgrade to the software version 604.xx, please consider the
technical information TI 2006-01C08 or contact your Siemens service technician.
9 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
4 Requirements
4.1 SIPLACE X series and D series software components
4.1.1 Station
The station uses the following operating system configuration:
• Station computer: Microsoft Windows XP Professional
(including Service Pack 2 and most recent hotfixes)
• Machine controller: Microsoft Windows embedded XP (SP2)
4.1.2 Machine components
The following versions of other machine components are required for the station software to function
correctly:
Station computer SIPLACE Vision Machine controller SIPLACE Pro
Version 604.01 SP1 Version 341 SP1 Version 604.01 Version 5.0
Caution:
The functional statuses of the station computer, vision and machine controller software must
be compatible.
10 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
11 of 47
4.1.3 Embedded software
Machine type
Subsystem BIOS / application Version File name
X2 X3 X4 D1 D2 D3 D4
BIOS 02.00 A0300200.bhx
X X X
Application 1 02.10 A0310210.bhx
X X X
Application 2 / X 02.4C A032024C.bhx
X X X
Gantry axes
A 363
Application 2 / Y 02.4C A032024C.bhx
X X X
BIOS 03.3F A040033F.BHX
X X X X X X X
Application 1 01.27 A0410127.bhx
X X X X X X X
Gantry axes
A 364
Application 2 04.8A A042048A.bhx
X X X X X X X
BIOS 02.00 A0300200.bhx
X X X
Application 1 02.10 A0310210.bhx
X X X
Application 2 / star 02.4C A032024C.bhx
X X X
Application 2 / Z 02.4C A032024C.bhx
X X X
Revolver head
axes
A 363
Application 2 / DP 02.4C A032024C.bhx
X X X
BIOS 03.3F A040033F.BHX
X X X X X X X
Application 1 01.27 A0410127.bhx
X X X X X X X
Revolver head
axes
A 364
Application 2 04.8A A042048A.bhx
X X X X X X X
BIOS 02.00 A0300200.bhx
X X X
Application 1 02.10 A0310210.bhx
X X X
Application 2 / Z 02.4C A032024C.bhx
X X X
TWIN Head axes
A 363
Application 2 / DP 02.4C
A032024C.bhx
X X X
BIOS 03.3F A040033F.BHX
X X X X X
Application 1 01.27 A0410127.bhx
X X X X X
Application 2 / Z 04.8A A042048A.bhx
X X X X X
TWIN Head axes
A 364
Application 2 / DP 04.8A A042048A.bhx
X X X X X
