Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
5.2 Automatic BIOS update on the station computer
Note:
If the BIOS version is ≤ 1.50, you must update the BIOS at first.
A setup CD must first be created to automatically make the BIOS update on the station computer. To do
this, you require a computer running Windows XP that is fitted with a CD-RW drive.
The image files necessary for creating the CD (see table below) are in the "BIOS-Images" folder of the CD
for version 604.01 SP1 of the software.
Station computer / computer type BIOS settings / ISO image
SMP16-CPU086 CPU086_MC_SR_BIOS_Update.iso
Table 5-1: File required for creating the Setup CDs for making the BIOS update on the station computer
5.2.1 Creating a setup CD
→ Insert an empty writable CD in the drive on any computer equipped.
→ Insert the CD for version 604.01 SP1 of the software in the drive.
→ In the Windows Explorer, open the "BIOS-Images" folder on the CD.
→ Open the image file (see table above) using the installed CD writing program and follow the
instructions on screen.
→ Once the CD has been written, remove the CDs from the drives.
5.2.2 Making the BIOS update on the station computer
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from CD.
→ Insert the CD you have created in the drive on the station computer and boot from the CD by
switching the machine on.
The BIOS update is now performed automatically.
→ After the settings have been made, remove the CD from the drive and switch the machine off again.
22 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
5.3 Automatic BIOS settings on the station computer
A setup CD must first be created to automatically make the BIOS settings on the station computer. To do
this, you require a computer running Windows XP that is fitted with a CD-RW drive.
The image files necessary for creating the CD (see table below) are in the "BIOS-Images" folder of the CD
for version 604.01 SP1 of the software.
Station computer / computer type BIOS settings / ISO image
SMP16-CPU086 CPU086_SR_BIOS_Settings.iso
SIMATIC Box PC 627 CPU627_SR_BIOS_Settings.iso
Table 5-2: Files required for creating the Setup CDs for making the BIOS settings on the station computer
5.3.1 Creating a setup CD
→ Insert an empty writable CD in the drive on any computer.
→ Insert the CD for version 604.01 SP1 of the software in the drive.
→ In the Windows Explorer, open the "BIOS-Images" folder on the CD.
→ Open the image file for the relevant computer type (see table above) using the installed CD writing
program and follow the instructions on screen.
→ Once the CD has been written, remove the CDs from the drives.
5.3.2 Making the BIOS settings on the station computer
Note:
Before you start work, ensure that the CD-ROM drive is set as the first boot device in the
BIOS to allow the computer to be booted from CD.
→ Insert the CD you have created in the drive on the station computer and boot from the CD by
switching the machine on.
The BIOS settings are now performed automatically.
→ After the settings have been made, remove the CD from the drive and switch the machine off again.
23 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
5.4 Preparations for installing the software
5.4.1 Requirements
Requirements for installing the SIPLACE software and the optional Vision computer software:
• Installation of the Windows XP Professional operating system including
Service Pack 2 on the
station computer and the Vision computer (if present)
(see Installation Manual "Windows XP Operating System", item no. 00194575-xx).
• Installation of the Windows XP Embedded operating system on the machine controller
(see Installation Manual "Windows XP Embedded Operating System for the Machine Controller",
item no. 00195327-xx).
The default Windows display settings must be changed and the touchscreen must be calibrated. You
must be logged on as the Administrator
in order to be able to carry out this work.
5.4.2 Changing the display settings
→ Choose Start Æ Settings Æ Control Panel Æ Display.
→ Click the Settings tab.
→ Set the "Screen resolution" slider to "1024 by 768 pixels".

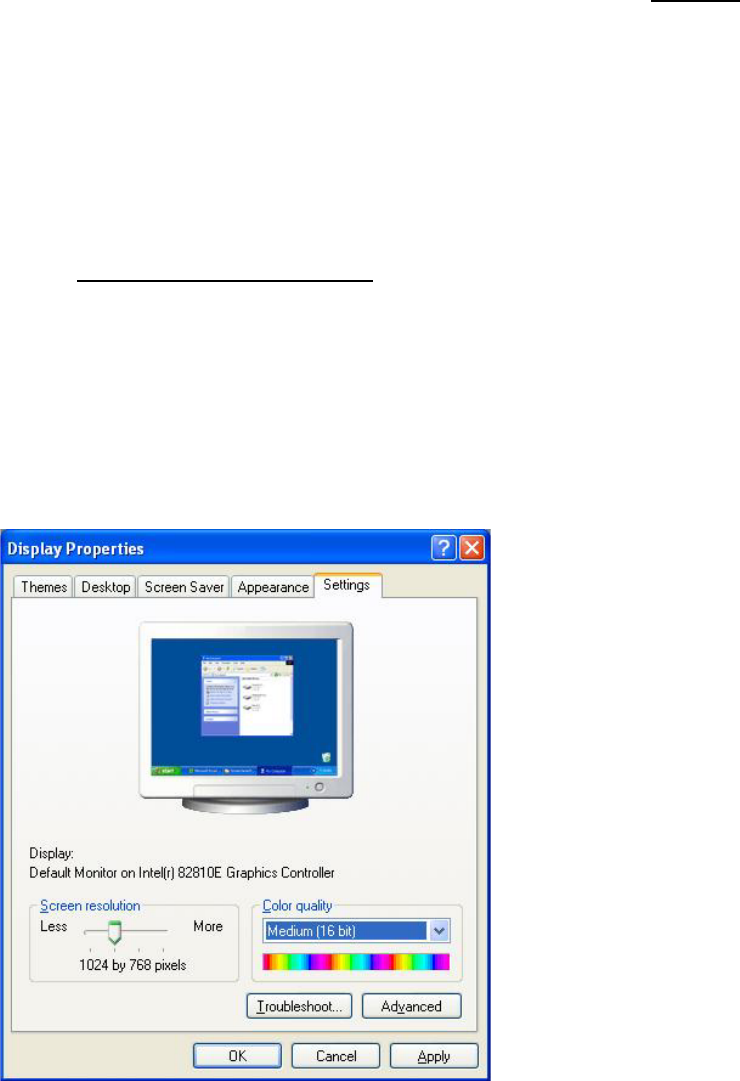

Fig. 5-1: Screen settings
→ Confirm the settings by clicking OK.
24 of 47
