Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
5.4 Preparations for installing the software
5.4.1 Requirements
Requirements for installing the SIPLACE software and the optional Vision computer software:
• Installation of the Windows XP Professional operating system including
Service Pack 2 on the
station computer and the Vision computer (if present)
(see Installation Manual "Windows XP Operating System", item no. 00194575-xx).
• Installation of the Windows XP Embedded operating system on the machine controller
(see Installation Manual "Windows XP Embedded Operating System for the Machine Controller",
item no. 00195327-xx).
The default Windows display settings must be changed and the touchscreen must be calibrated. You
must be logged on as the Administrator
in order to be able to carry out this work.
5.4.2 Changing the display settings
→ Choose Start Æ Settings Æ Control Panel Æ Display.
→ Click the Settings tab.
→ Set the "Screen resolution" slider to "1024 by 768 pixels".
Fig. 5-1: Screen settings
→ Confirm the settings by clicking OK.
24 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
5.4.3 Calibrating the touchscreen
5.4.3.1 Calibrating the touchscreen for the X-Series
→ Choose Start Æ Settings Æ TouchWare, to start the TouchWare Properties program.

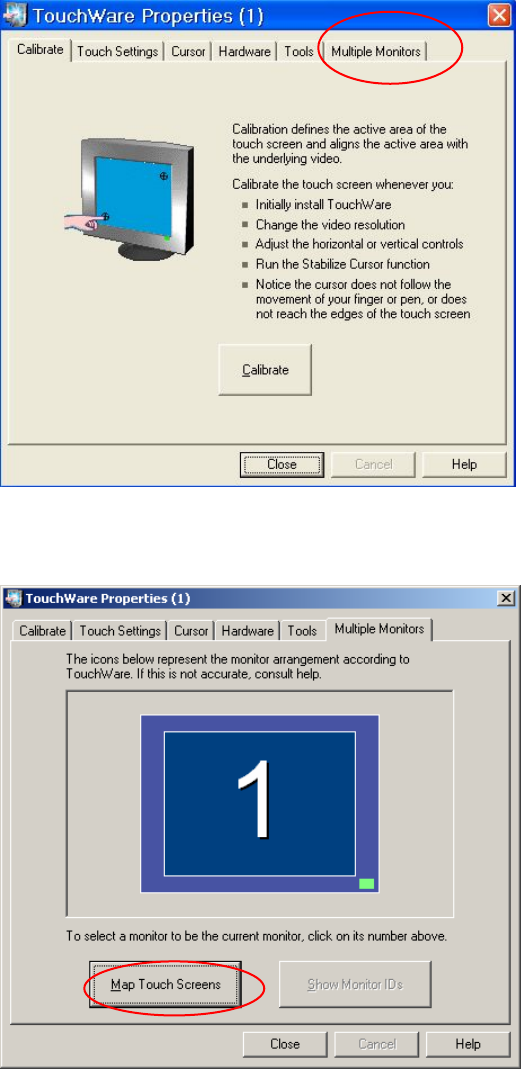

Fig. 5-2: TouchWare Properties
→ Open the Multiple Monitors tab.
Fig. 5-3: TouchWare Properties – Multiple Monitors tab
→ Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
25 of 47
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
Fig. 5-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
Fig. 5-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
