Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
6 of 47
2 Scope of delivery
2.1 Software components
604.01 SP1 software
Standard package: 003385500-02 Software SIPLACE Station 604.01 SP1
•
CD-ROM with software
(1)
• License/product certificate
• Software Installation Manual for SC V604.01 SP1 German and English (00195447-xx)
• Software Version Description for SC V604.01 SP1 German and English (00195445-xx)
• 4 temperature warning labels (03031926-01)
• Packaging
Languages: 00385490-02 SIPLACE foreign language software SR 604.01 SP1
• CD-ROM with software (language pack)
• License/product certificate
• Software Version Description for foreign languages V604.01 SP1 German and English
(00195446-xx)
• Packaging
(1) The standard applications are contained on the CD:
• Embedded software for conveyor
• Embedded software for axes
• Embedded software for component tables
• Embedded software for tape cutter
• Embedded software for heads
• Embedded software for MTC 2
• Embedded software for WPC 4
• Embedded software for vision modules
• Embedded software for I/O modules
• Embedded software for X-feeders
• Embedded software for digital pressure regulation valve
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
7 of 47
2.2 Hardware components
• Station computer
• MC computer (machine controller)
• Vision computer (optional, required for the 3D coplanarity sensor option)
2.3 Languages
User interface for station computer and SIPLACE Vision:
The standard package contains German and English versions. Other languages contained in the
languages package are optional and available under item number 00385490-01.
The following table indicates which languages are available for the station software and SIPLACE Vision:
Language Station software /
SIPLACE Vision
French x
Italian x
Spanish (Mexico) x
Portuguese (Brazil) x
Hungarian x
Czech x
Polish x
Russian x
Estonian x
Chinese (simplified) x
Chinese (traditional) x
Korean x
Japanese x
Thai *) x
*) Only available for GUIs (English online help)
SITEST user interface:
German and English are included on the software CD.
Installation Manual, Station Software Version 604.01 SP1 Issue 12/2007
3 Upgrade to the 604.xx software version
This chapter describes which steps you have to attend when upgrading from different software versions.
When upgrading the station software, always check the eSW versions and download the current versions if
necessary.
3.1 Upgrade from Version 603.x
Caution:
For upgrading to the software version 604.x on the SIMATIC BoxPC 627, please consider the
installation manual “Windows Embedded XP operating system for the MC German and
English” (00195327-xx). Therfor, the standard media package (03054699-xx) is required.
It is not necessary to install the Windows embedded XP operating system for the other
machines.

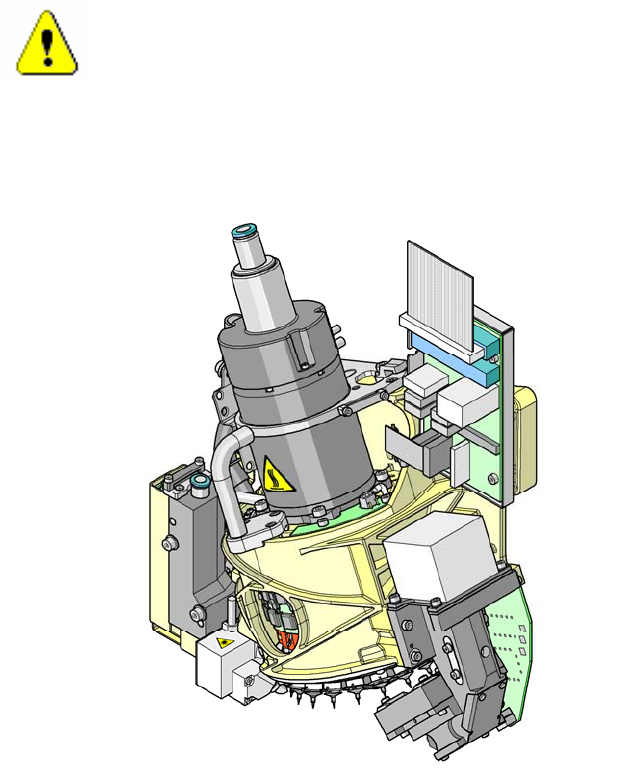

- Fix the temperature warning labels (03031926-01) at the C&P20 head (see the figure).
- After an upgrade to the 604.xx software version, calibrate the heads of the D1, D2 and D4 machines.
The temperature compensation is activated for these machines.
- If the machine can not be started after the upgrade to the software version 604.xx, please consider the
technical information TI 2006-01C08 or contact your Siemens service technician.
8 of 47
