Installing the SIPLACE Order Manager
Order Manager Client Installation
SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2 65
2.3
2.3 Order Manager Client Installation
Order Manager Client Installation
This package installs the client components for the
SIPLACE Order Manager on one computer.
► Perform the steps at "2.1 Starting the Installation -
First Steps" [ ➙ 59].

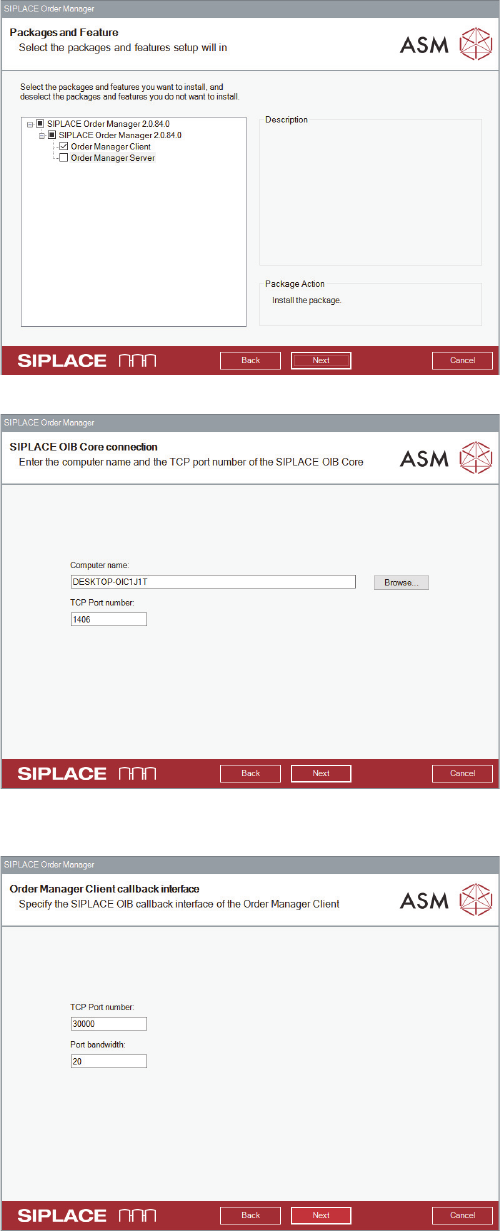

► Select Order Manager Client.
► Click on Next.
⇨ The OIB Core connection dialog box will be shown.
► Define the settings for the connection to the OIB core.
Default values or names have already been entered.
Computer name:
Name of the computer on which the OIB core is installed.
TCP Port number:
Number of the port that is to be used for the communica
-
tion with the OIB server.
► Click on Next.
⇨ The accessibility of the OIB core on the specified
computer is checked. If the OIB core cannot be
reached, the installation stops at this dialog and you
can correct the computer name.
⇨ If the connection is successfully established, the Or
-
der Manager Client OIB callback interface dialog box
will be shown.
► Define the settings for the SIPLACE OIB callback in
-
terface of the Order Manager client.
TCP Port number:
Number of the callback port that shall be used for the
communication with the OIB server.
Port bandwidth:
The bandwidth of the callback port. A default value of 20
has been entered.
► Click on Next.

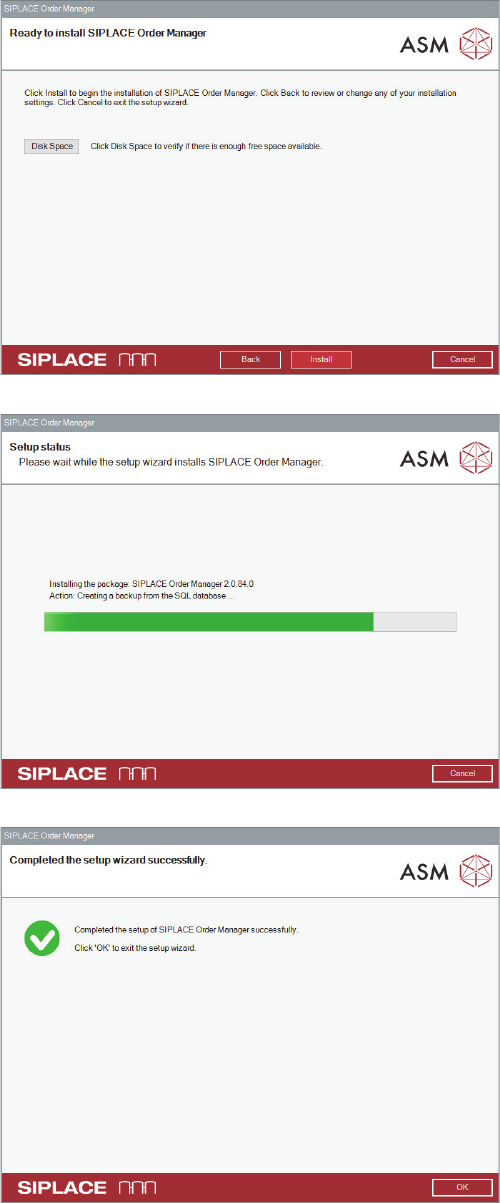

⇨ The Ready to install…. dialog box will be shown.
Installing the SIPLACE Order Manager
Order Manager Client Installation
66 SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2
► Click on Install.
⇨ The Setup Status dialog box is displayed.
The client installation will be installed according to your
specifications.
During the installation, a progress bar displays the cur
-
rent installation status.
After the SIPLACE Order Manager client has been suc
-
cessfully installed, the dialog box for finishing the installa
-
tion program will be shown.
► Click on Finish to terminate the installation program.
Installing the SIPLACE Order Manager
Complete Installation
SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2 67
2.3.1
2.3.1 Successfully Installed SIPLACE Order Manager Client
Successfully Installed SIPLACE Order Manager Client

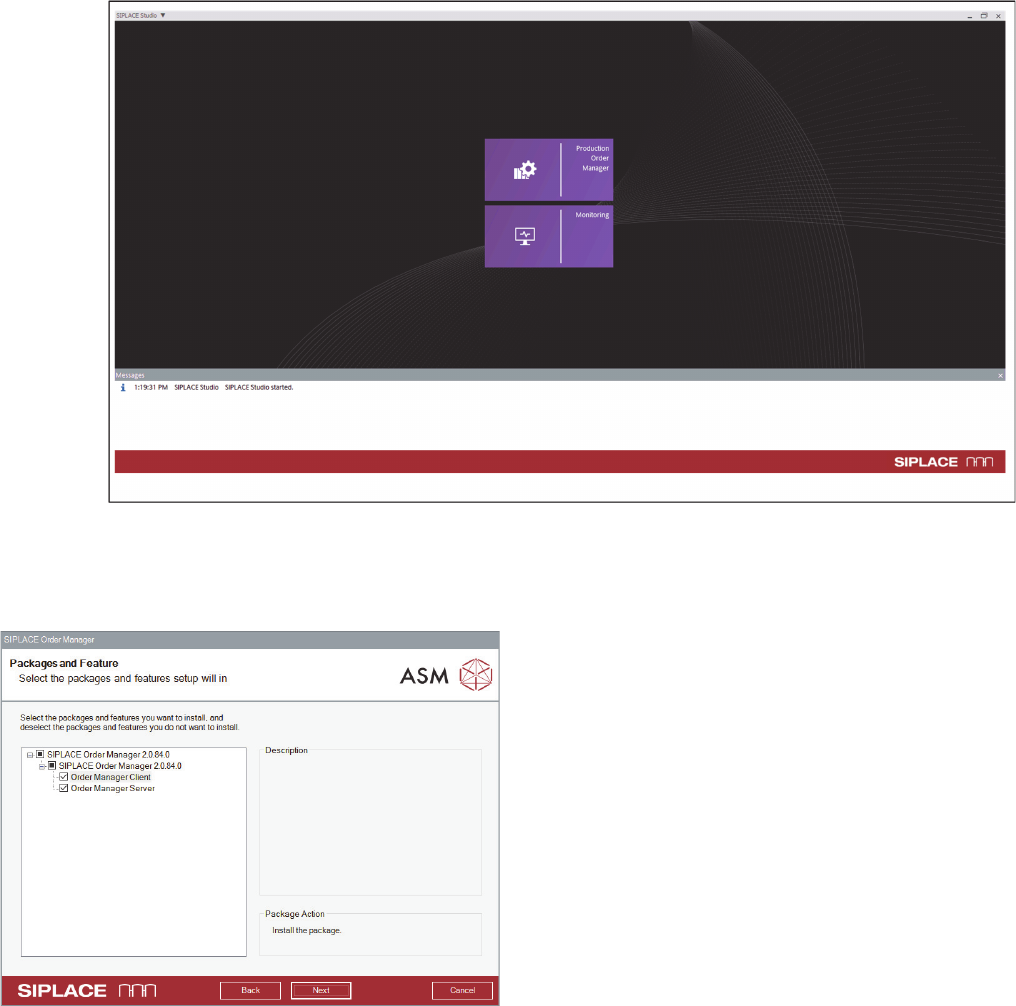

After successful installation, the Production Order Manager and Monitoring modules will be available in
the SIPLACE Studio.
Order Manager in SIPLACE Studio
2.4
2.4 Complete Installation
Complete Installation
Installs the client and server components for the
SIPLACE Order Manager on one computer.
► Perform the steps at "2.1 Starting the Installation -
First Steps" [ ➙ 59].
► Select Order Manager Client and Order Manager
Server.
► Click on Next.
► Follow the installation steps in the sections:
► "2.1 Starting the Installation - First Steps" [ ➙ 59]
► "2.2 Order Manager Server Installation" [ ➙ 60]
► "2.3 Order Manager Client Installation" [ ➙ 65]
