3.1.2.1
3.1.2.1 Example of a Factory Layout
Example of a Factory Layout

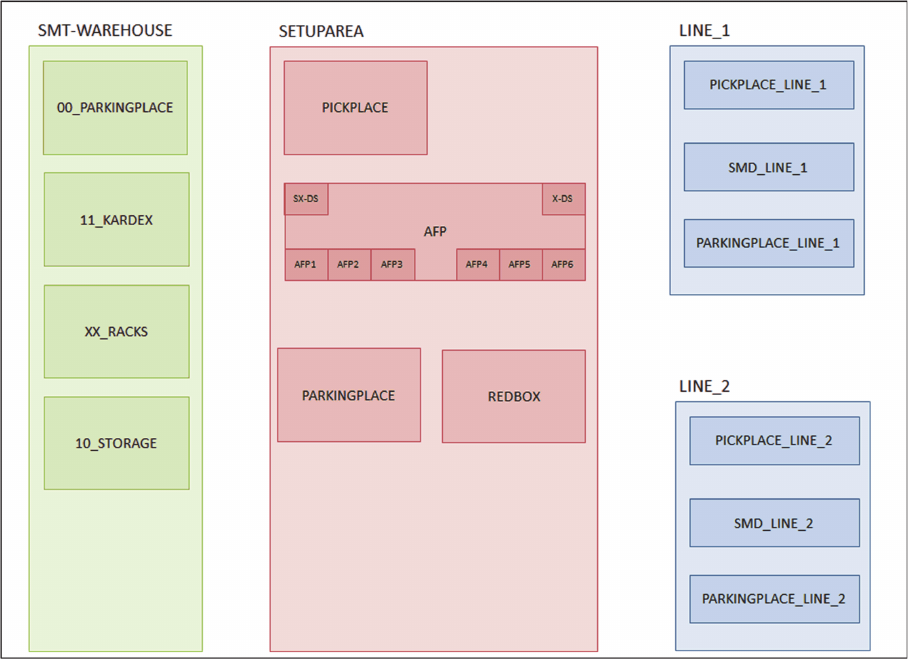

The overview shows an example of a typical factory layout for the SIPLACE Material Setup Assistant
workflow.
Example - factory layout
Configuration
Configuration Settings in ASM OIB
74 SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2
3.1.2.2
3.1.2.2 Assigning Setup Center Adapter with AFP
Assigning Setup Center Adapter with AFP
This setting specifies the OIB adapter with which the Active Feeder Pool (AFP) is to communicate. This
service controls the reuse of the hardware in the Active Feeder Pool.

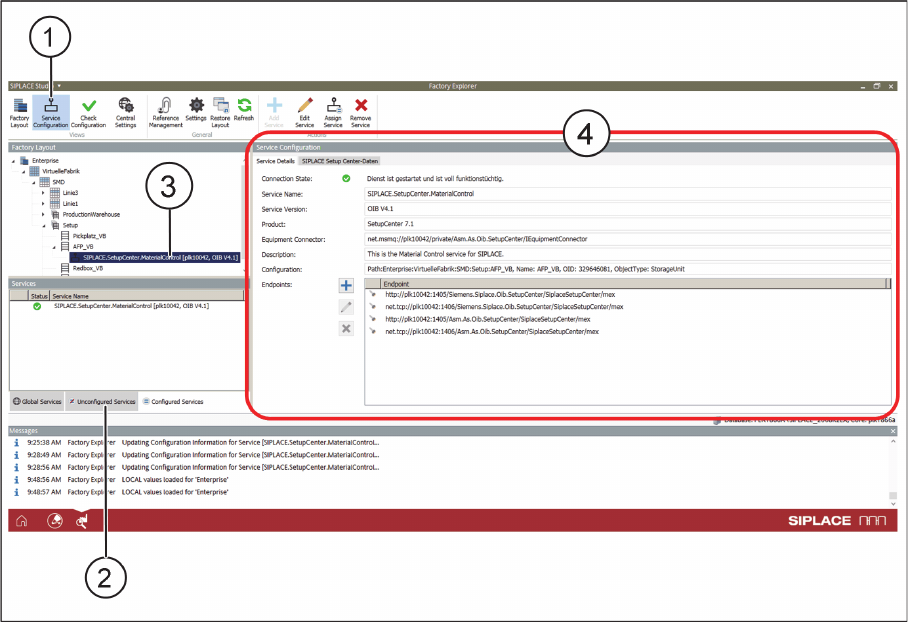

► Select Service Configuration (1).
Service Configuration - Service Details - Tab
► In the Unconfigured Services tab (2), find the service Siplace.SetupCenter.MaterialControl.
► Using the mouse, drag this service on the entry (3) for the AFP in the Factory Layout.
⇨ The properties will be shown (4).
Configuration
Configuration Settings in ASM OIB
SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2 75
3.1.2.3
3.1.2.3 Connecting the SIPLACE Pro Line Control Adapter to MSA
Connecting the SIPLACE Pro Line Control Adapter to MSA
This setting establishes the connection between SIPLACE Material Setup Assistant and SIPLACE Pro.
Thus, the recipes will be entered in the Line Control GUI.

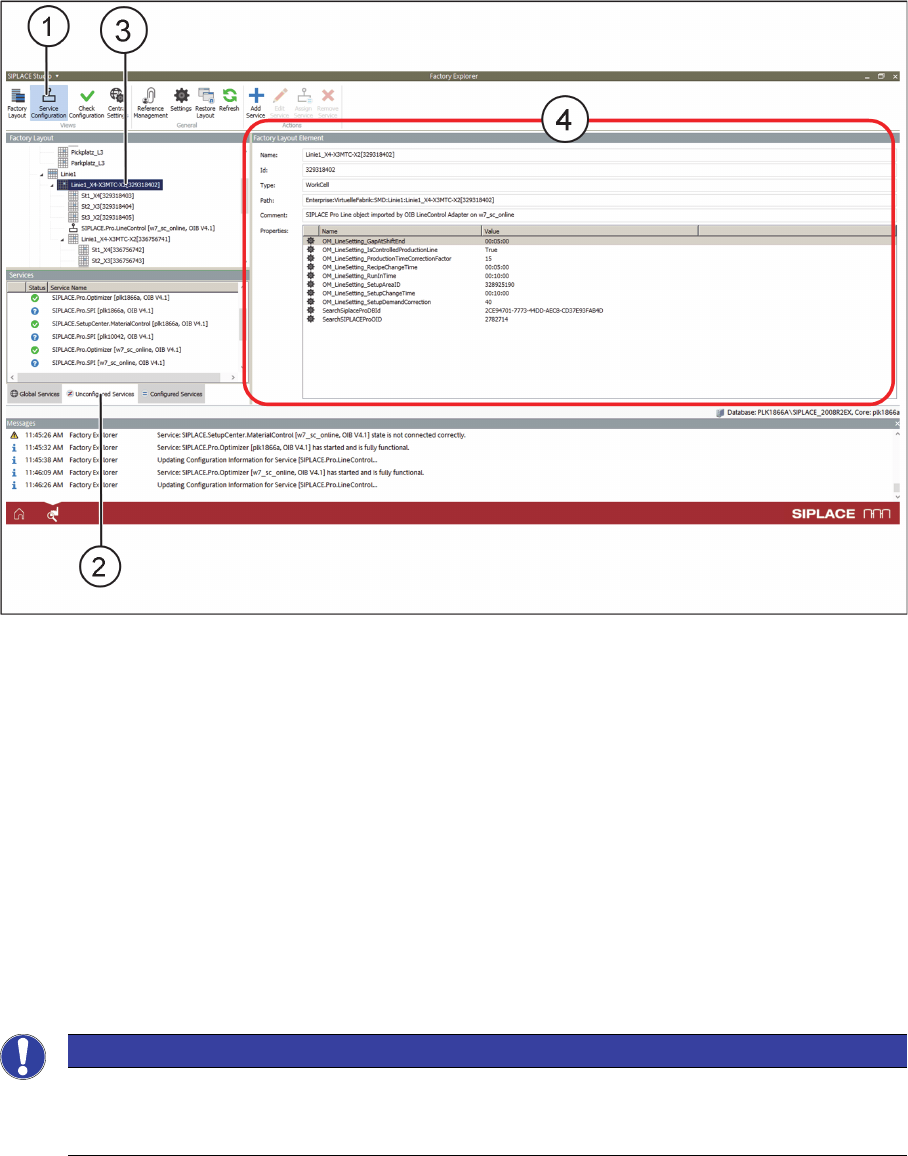

► Select Service Configuration (1).
Service Configuration - Factory Layout Element - Tab
► In the Unconfigured Services tab (2), find the service Siplace.Pro.LineControl.
► Using the mouse, drag this service on the entry (3) for the line in the factory layout.
⇨ The properties will be shown (4).
3.1.3
3.1.3 Defining the Flow of Materials
Defining the Flow of Materials
After successfully defining the factory layout, you need to define the flow of materials for your factory.
This means that you need to define the material warehouses which supply the presetup areas and the
presetup areas which are assigned to the production lines.
Assigning material warehouses to the presetup area
Define the material warehouse which is to be assigned to the presetup area. The flow of material and
the reuse of materials takes place between the selected presetup area and the assigned warehouse.
Multiple presetup areas can be assigned to one warehouse, in accordance with your factory layout.
NOTICE
Workflow with ASM Material Manager for MSA
During the installation of ASM Material Manager for MSA, a warehouse is automatically creat
-
ed. This warehouse must be assigned here.
