Configuration
Configuration Settings in ASM OIB
80 SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2
3.1.6
3.1.6 Defining Factory Configurations
Defining Factory Configurations
► Select Central Settings.
► Go to Application Settings => Material Setup Assistant and select Factory (1) from the tree structure.

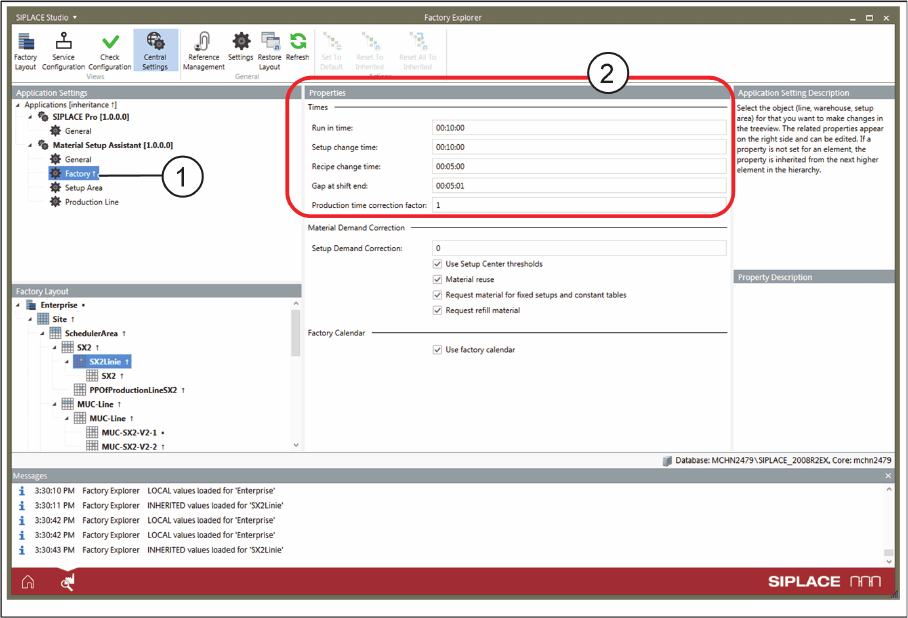

Application Settings - Factory
► The factory settings can be made on a global level and can be overwritten for individual areas. In the
Factory Layout, select the Enterprise level for global settings or select another element for overwrit
-
ing the global settings for this very element.
► Enter the times (2) for specific production tasks used for scheduling in your factory. These times in
-
fluence the production times for your lines or globally the production times for the entire production.
Configuration
Configuration Settings in ASM OIB
SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2 81
Optional settings
3.1.6.1
3.1.6.1 Constant Tables and Refill Material
Constant Tables and Refill Material
SIPLACE Material Setup Assistant supports fixed setups and constant tables in two variants:
▪ Without refill material
– Usually, no material is requested because the required basic setup is normally present on the
tables. Only if a component misses completely on a table, it will be requested.
– Refill reels are requested "on demand" via the ASM Material Manager - full version (e.g. reorder
-
ing at the line). This can be automated in Setup Center as well.
▪ With refill material
– The material for the basic setup (which is usually present) and the refill material is requested like
it is the case for flexible tables.
Parameters Function
Production time correction fac
-
tor
The production time calculated by SIPLACE Pro can be modified us
-
ing this factor. If, e.g., the production takes 5% longer in real time, en
-
ter 1.05.
Material reuse You define if material reuse is to be applied to the production line.
Enabled: Default setting. The Material Setup Assistant workflow is
configured for material reuse at the line.
NOTICE!
A mixed operation with S, X and E feeders is possible in SIPLACE Ma
-
terial Setup Assistant. However, a different workflow is necessary be
-
cause the S feeders cannot signal the material reuse to the AFP.
See also Mixed Operation of S Feeders and X Feeders in a Line.
Disabled: (If only S feeders are operated at the line).
Disable this option if the stations in your line are operated with S feed
-
ers only. The S feeders cannot be used for material reuse.
Use Setup Center thresholds ASM Setup Center uses threshold value settings to calculate the cor
-
rection of the material demand.
Request material for fixed set
-
ups and constant tables
Activate this option if the material for constant tables and fixed setups
is to be requested for this production line.
See also "3.1.6.1 Constant Tables and Refill Material" [ ➙ 81].
Request refill material Activate this option if the refill material is to be requested for this pro
-
duction line. See also "3.1.6.1 Constant Tables and Refill Material"
[➙81].
Use factory calendar Select if the factory calendar is to be used.
Configuration
Configuration Settings in ASM OIB
82 SIPLACE Material Setup Assistant 2.2 SIPLACE Material Setup Assistant 2.2
Settings in OIB - Factory
The Request material for fixed setups and constant tables option and the Request refill material option
enforce the following four combination scenarios.
Example: line with two placement machines with two tables each
1. Setup with flexible table (default)
2. Setup with fixed/constant table
3. Setup with flexible table (default)
4. Setup with fixed/constant table
Material for fixed setups and con
-
stant tables
Request refill material Effect
On On ▪ Basic setup at tables 1 to 4.
▪ Refill material is requested
for tables 1 to 4.
On Off ▪ Basic setup at tables 1 to 4.
▪ Refill material is not request
-
ed at tables 1 to 4.
Off On ▪ Basic setup at tables 1 and 3
only.
▪ Refill material is requested
for tables 2 and 4.
Off Off ▪ Basic setup at tables 1 and 3
only.
▪ Refill material is not request
-
ed at tables 1 to 4.
