5-4 5 Lubrication points and schedule 2.3 W-axis (U-axis) 2.3.1 Dual-stage specifications W- and U-axis lubrication points Dual-stage W1-axis ball screw W1-axis ball screw W3-axis hexagon spline W3-axis ball screw W1-axi…
5-3
5
Lubrication points and schedule

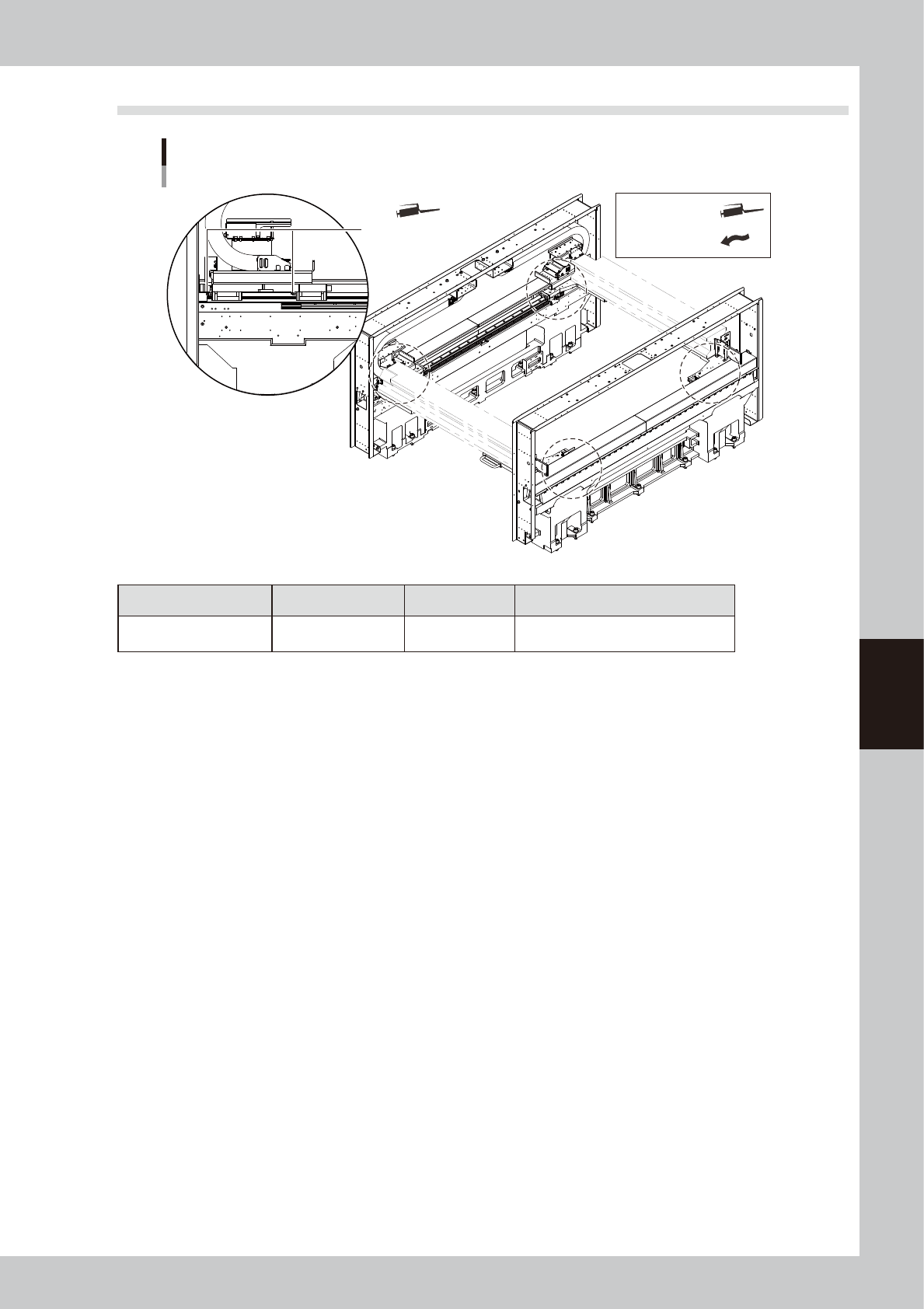

2.2 Y-axis
Y-axis lubrication points
Y-axis guide
Grease nipple
Grease gun:
Manual lubrication:
53502-L4-00
Lubrication section Lubrication point Interval Procedure
Guide 8
Once every
2 months
Grease gun: Standard nozzle(ø10mm)
5-4
5
Lubrication points and schedule
2.3 W-axis (U-axis)
2.3.1 Dual-stage specifications
W- and U-axis lubrication points
Dual-stage
W1-axis ball screw
W1-axis ball screw
W3-axis hexagon spline
W3-axis ball screw
W1-axis hexagon spline
W1-axis guide
W1-axis guide
W3-axis guide
W3-axis ball screw
W2-axis ball screw
W2-axis hexagon spline
W2-axis guide
W1-axis (stage 1), W3-axis (exit conveyor) lubrication points
W2 / U-axis (stage 2) lubrication points
W2-axis ball screw
W2-axis guide
Grease gun:
Manual lubrication:
53503-L4-10
Lubrication section Lubrication point Interval Procedure
W1-axis, W3-axis ball screw 4 Once every 6 months Manual lubrication
W1-axis, W3-axis guide 3 Once every 6 months Manual lubrication
W1-axis, W3-axis hexagon splines 2 Once every 6 months Manual lubrication
W2-axis (U-axis) ball screw 2 Once every 3 moths Manual lubrication
W2-axis (U-axis) guide 2 Once every 3 moths Manual lubrication
W2-axis (U-axis) hexagon splines 1 Once every 3 moths Manual lubrication
5-5
5
Lubrication points and schedule
2.3.2 Dual-lane and single-lane specifications
W-axis lubrication points
Dual-lane
W-axis ball screw
(Lane 1)
Grease gun:
Manual lubrication:
W-axis guide
W-axis hexagon spline
(Lane 1)
W-axis ball screw
(Lane 1)
W-axis guide
W-axis ball screw
(Lane 2)
W-axis hexagon spline
(Lane 2)
W-axis ball screw
(Lane 2)
53504-L4-10
Lubrication section Lubrication point Interval Procedure
W-axis guide 2 Once every 6 months Manual lubrication
W-axis ball screw 4 Once every 6 months Manual lubrication
W-axis hexagon splines 2 Once every 6 moths Manual lubrication
