5-7 5 Lubrication points and schedule 2.4 PU-axis 2.4.1 Dual-stage specifications PU-axis lubrication points Dual-stage Ball screw Grease gun: Manual lubrication: Stage 1 Stage 2 Ball screw Ball screw Ball screw Ball scr…
5-6
5
Lubrication points and schedule
2.3.3 Single-lane specifications
W-axis lubrication points
Single-lane
W-axis ball screw
Grease gun:
Manual lubrication:
W-axis hexagon spline
W-axis guide
W-axis guide
W-axis ball screw
53508-L4-00
Lubrication section Lubrication point Interval Procedure
W-axis guide 2 Once every 6 months Manual lubrication
W-axis ball screw 2 Once every 6 months Manual lubrication
W-axis hexagon splines 1 Once every 6 moths Manual lubrication
5-7
5
Lubrication points and schedule
2.4 PU-axis
2.4.1 Dual-stage specifications
PU-axis lubrication points
Dual-stage
Ball screw
Grease gun:
Manual lubrication:
Stage 1 Stage 2
Ball screw
Ball screw
Ball screw
Ball screw
Ball screw
53505-L4-10
Lubrication section Lubrication point Interval Procedure
Ball screw 3 (each stage) Once every 2 months Manual lubrication
2.4.2 Dual-lane specifications
PU-axis lubrication points
Dual-lane
Lane 1
Lane 2
Grease gun:
Manual lubrication:
Ball screw
Ball screw
Ball screw
Ball screw
Ball screw
Ball screw
53506-L4-10
Lubrication section Lubrication point Interval Procedure
Ball screw 3 (each stage) Once every 2 months Manual lubrication
5-8
5
Lubrication points and schedule

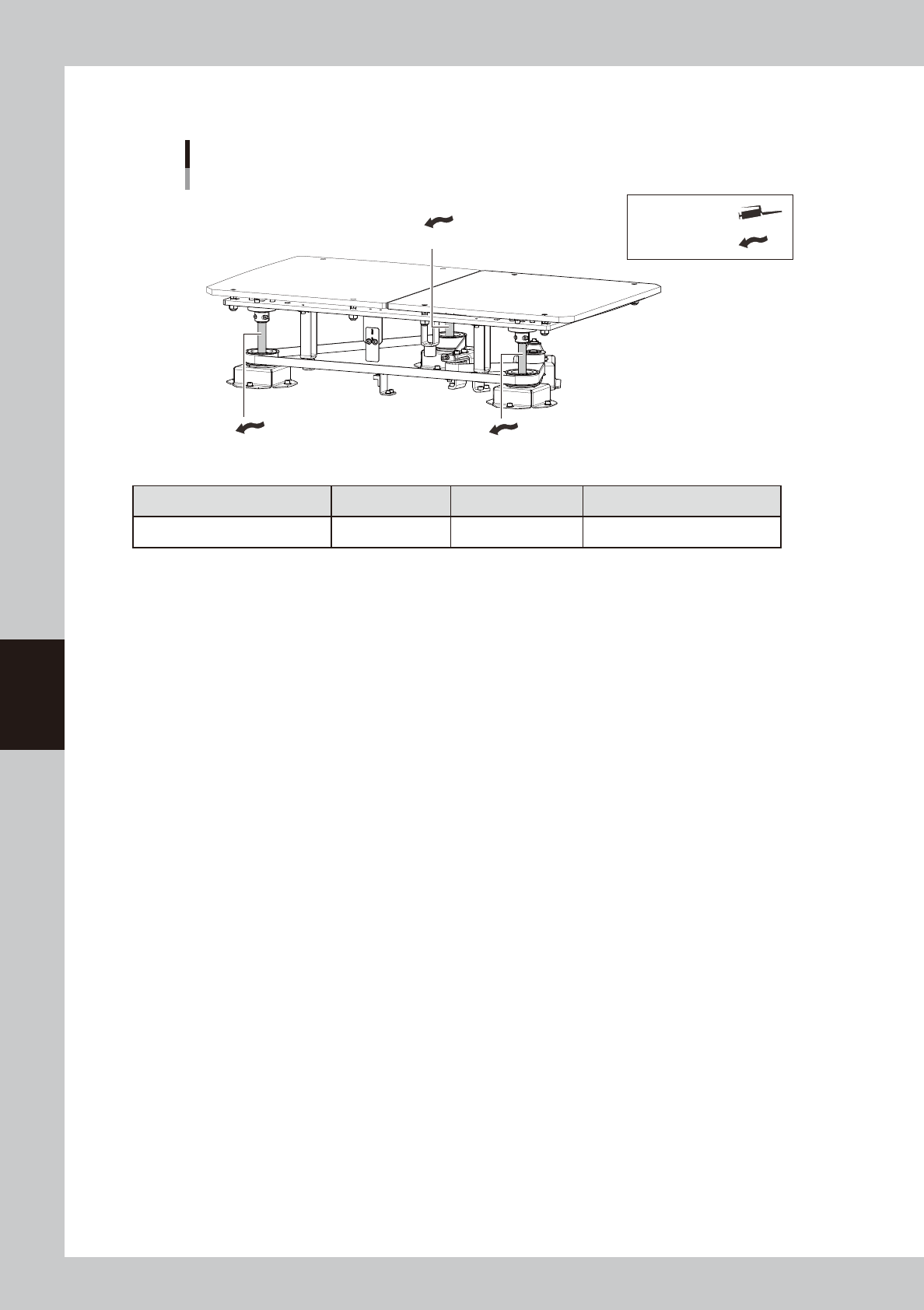

2.4.3. Single-lane specifications
PU-axis lubrication points
Single-lane
Grease gun:
Manual lubrication:
Ball screw
Ball screw
Ball screw
53509-L4-00
Lubrication section Lubrication point Interval Procedure
Ball screw 3 Once every 2 months Manual lubrication
