xxx Safety instructions n Label positions W arning/caution labels Rear (YS24X+sA TS II ) ■ Open/close cover ■ Open/close cover ■ Cutter section ■ Cutter inner side 93203-L4-10

xxix

Safety instructions

n

Label positions

Warning/caution labels

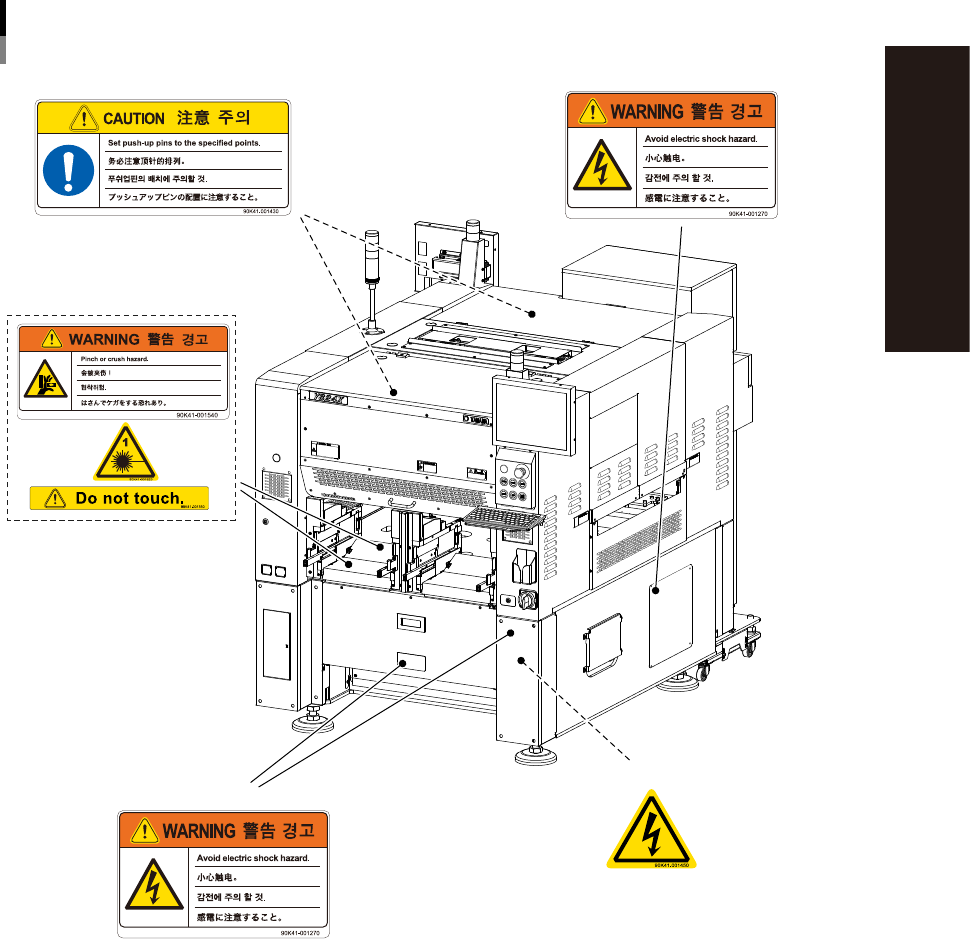

Front 2

■ X axis frame section inner side (front and rear sides)

■ Feeder setup section

(2 locations each on front and rear sides)

■ Right and left sides

■ Lower panels

(front and rear sides)

■ Panel inner side

93202-L4-10

xxx

Safety instructions

n

Label positions

Warning/caution labels

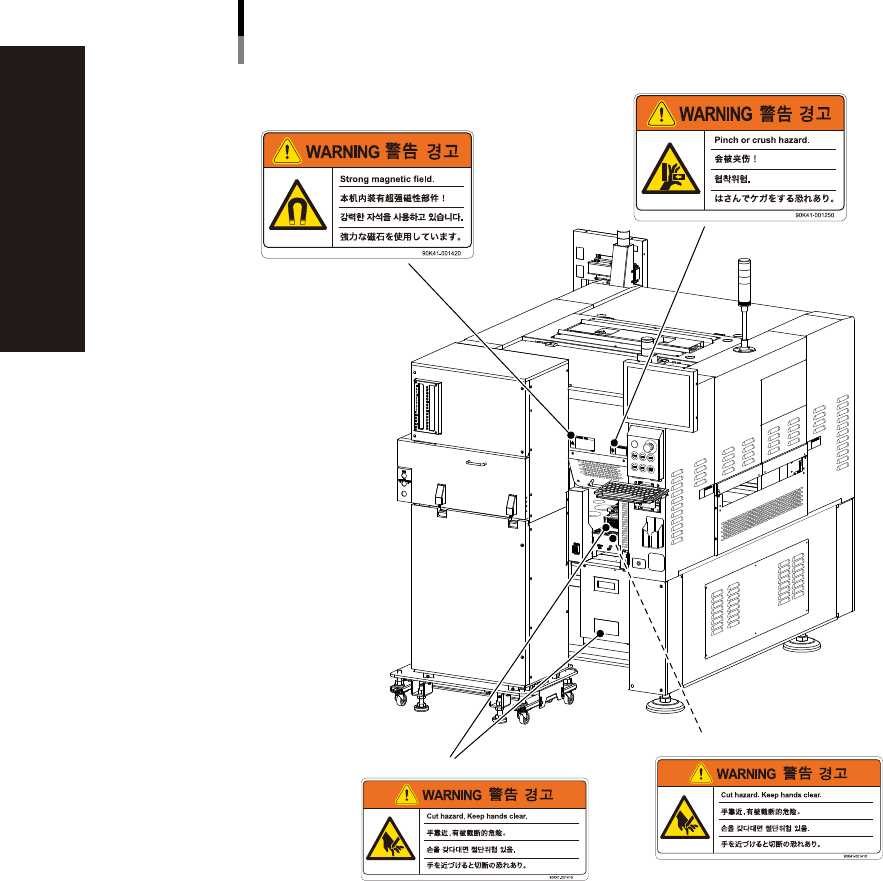

Rear (YS24X+sATSII)

■ Open/close cover

■ Open/close cover

■ Cutter section

■ Cutter inner side

93203-L4-10

xxxi

Safety instructions

n

Label positions

Warning/caution labels

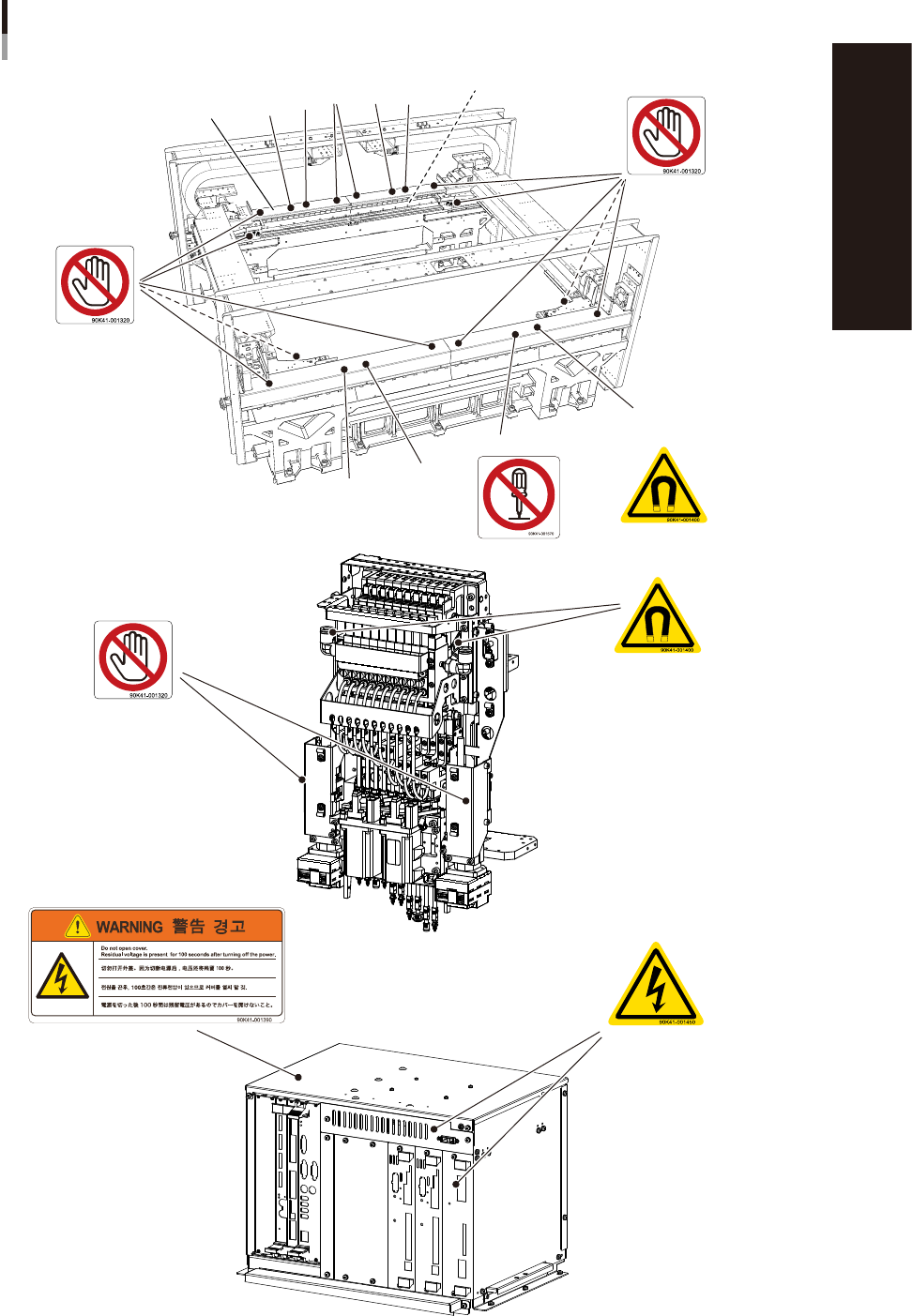

■ Camera unit

■ Z-axis linear scale section

■ Top of controller

■ Controller front panel

■ Controller

■ Head assembly

■ Y axis linear scale

3

3

2

2

3

2

1

1. Never touch.

1. Never touch.

2. Disassembly prohibited.

3. Caution on strong

magnetic fields

Linear cover

Linear motor

93204-L4-20
