1-7 1 Maintenance Product Name Parts List Designation Parts No Note Other nozzle related parts BODY , NOZZLE 310 KHY -M77A1-00X For 310A/3010A/31 10A Nozzle tip only BODY , NOZZLE 31 1 KHY -M771 1-03X For 31 1A Nozzle ti…
1-6
1
Maintenance
2.1.2 Nozzles
n
Consumable parts (optional purchase parts)
Product Name Parts List Designation Parts No Note
Standard 30X
Group nozzles
NOZZLE 301A ASSY. KHN-M7710-A4X 0603 to 1005 size components
NOZZLE 302A ASSY. KHN-M7720-A3X 1608 to 3216 size components
Narrow-pitch
31X Group
nozzles
NOZZLE 311A ASSY. KHY-M7710-A4X 0603 dedicated
NOZZLE 312A ASSY. KHY-M7720-A3X 1005 to 1608 size components
NOZZLE 313A ASSY. KHY-M7730-A2X 2012 to 3225 size components
Standard &
narrow-pitch
Common
nozzles
NOZZLE 310A ASSY. KHY-M77A0-A0X
0402 dedicated
* Type 3010A and 3110A also use
the same nozzle.
NOZZLE 303A/314A AS. KHY-M7740-A0X
4532 to 7343 size components, SOP
NOZZLE 304A/315A AS. KHY-M7750-A0X QFP, PLCC, etc.
NOZZLE 306A/317A AS. KHY-M7770-A0X Cylindrical components
Gripper nozzle
(option)
NOZZLE 30ALB
NOZZLE 30ALD etc.
-
Select gripper nozzle according to
component shape.
n
NOTE
The gripper nozzle is used when picking up and mounting the special-shaped component. Select and/or
manufacuture the gripper nozzle by special order according to the component shape.
1-7
1
Maintenance
Product Name Parts List Designation Parts No Note
Other nozzle
related parts
BODY, NOZZLE 310 KHY-M77A1-00X For 310A/3010A/3110A Nozzle tip only
BODY, NOZZLE 311 KHY-M7711-03X For 311A Nozzle tip only
BODY, NOZZLE 312 KHY-M7721-02X For 312A Nozzle tip only
BODY, NOZZLE 313 KHY-M7731-02X For 313A Nozzle tip only
BODY, NOZZLE 301 KHN-M7711-05X For 301A Nozzle tip only
BODY, NOZZLE 302 KHN-M7721-04X For 302A Nozzle tip only
BODY, NOZZLE 303/314 KHY-M7741-00X For 303A/314A Nozzle tip only
BODY, NOZZLE 304/315 KHY-M7751-00X For 304A/315A
BODY, NOZZLE 306/317 KHY-M7771-00X For 306A/317A
BODY, NOZZLE 307/318 KHY-M7781-00X For 307A/318A
SPRING KHN-M7713-00X For 303A/314A, 306A/317A, 313A
SPRING KHN-M7713-10X
For 301A, 302A,
310A/3010A/3110A, 311A, 312A
PIN KHN-M7714-00X
For 301, 302, 303/314A, 306/317A,
312A, 313A
CLIP KHN-M7715-00X
For 301A, 302A, 303A/314A,
306A/317A, 310A/3010A/3110A,
311A, 312A, 313A
O-RING 90990-17J081 For 304/315A
Ozone
countermeasure part
O-RING 90990-17J082 For 307/318A
Ozone
countermeasure part
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-8
1
Maintenance

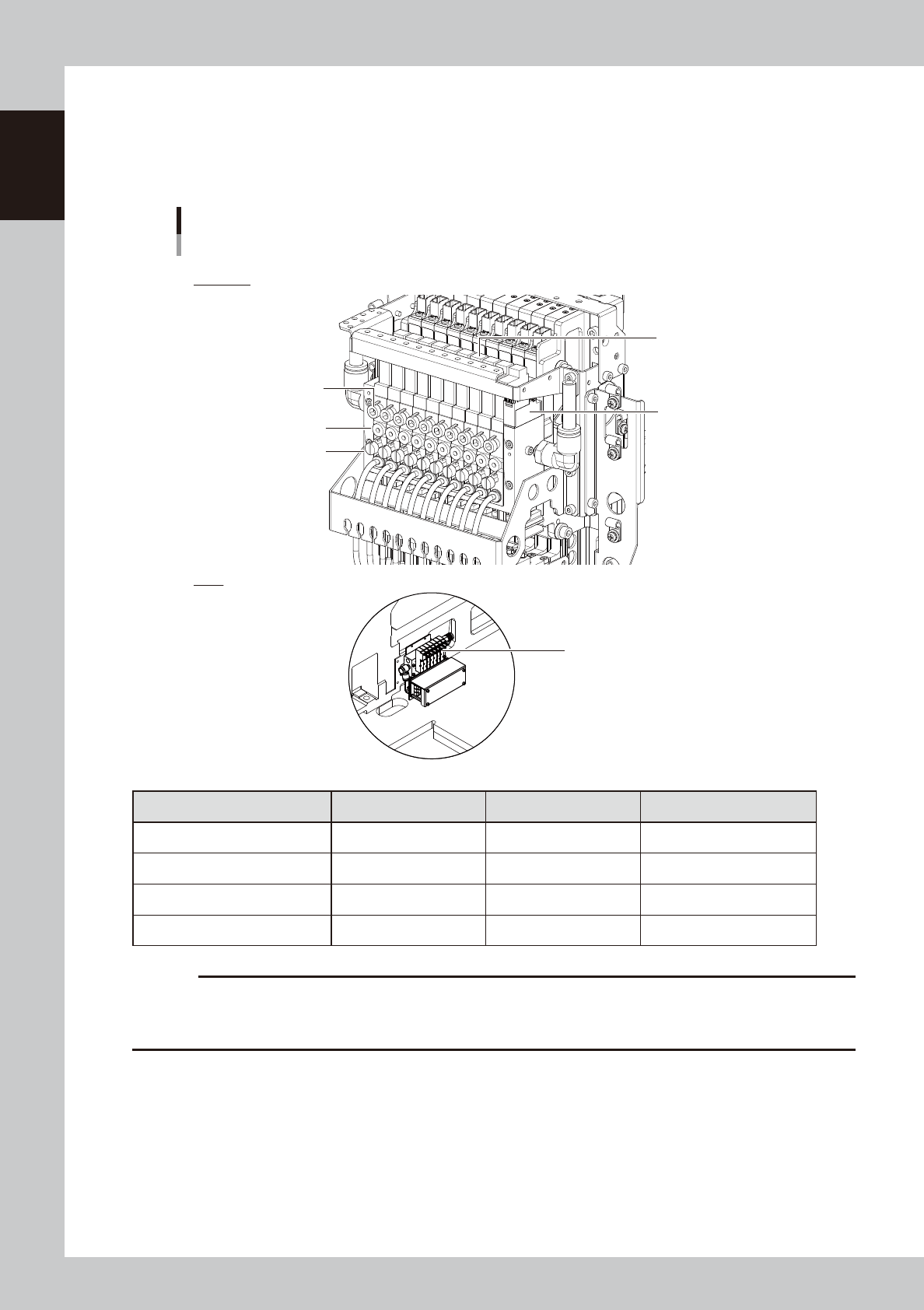

2.1.3 Replaceable parts (for repairs)
The term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts are described in this manual.
n
Replaceable parts list
Replaceable parts (Replace if broken)
Solenoid valve
Exhaust port
Plug for BIT replacement
Plug for filter replacement
Valve for conveyor unit
Left side inside machine base
Cleaning blow valve
Head unit
Base
53104-L4-10
Product Name Parts List Designation Parts No. Note
Bit for ejector BIT KHY-M7154-01X Bit for ejector replacement
Solenoid valve VALVE KHY-M7153-01X For ejector and blow operation
Cleaning blow valve VALVE (SPARE PARTS) KGS-M37P1-00X For cleaning blow operation
Valve for Conveyor unit VALVE KHW-M8582-40X For main stopper etc.
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
