1-1 1 1 Maintenance 2.2.2 Lubricating tools and grease n Lubricating and greasing tools (Par ts supplied with machine) Lubricating and greasing tools Parts supplied with machine Lithium-based grease NSL Nozzle buffing lu…

100%1 / 162
1-10
1
Maintenance
n

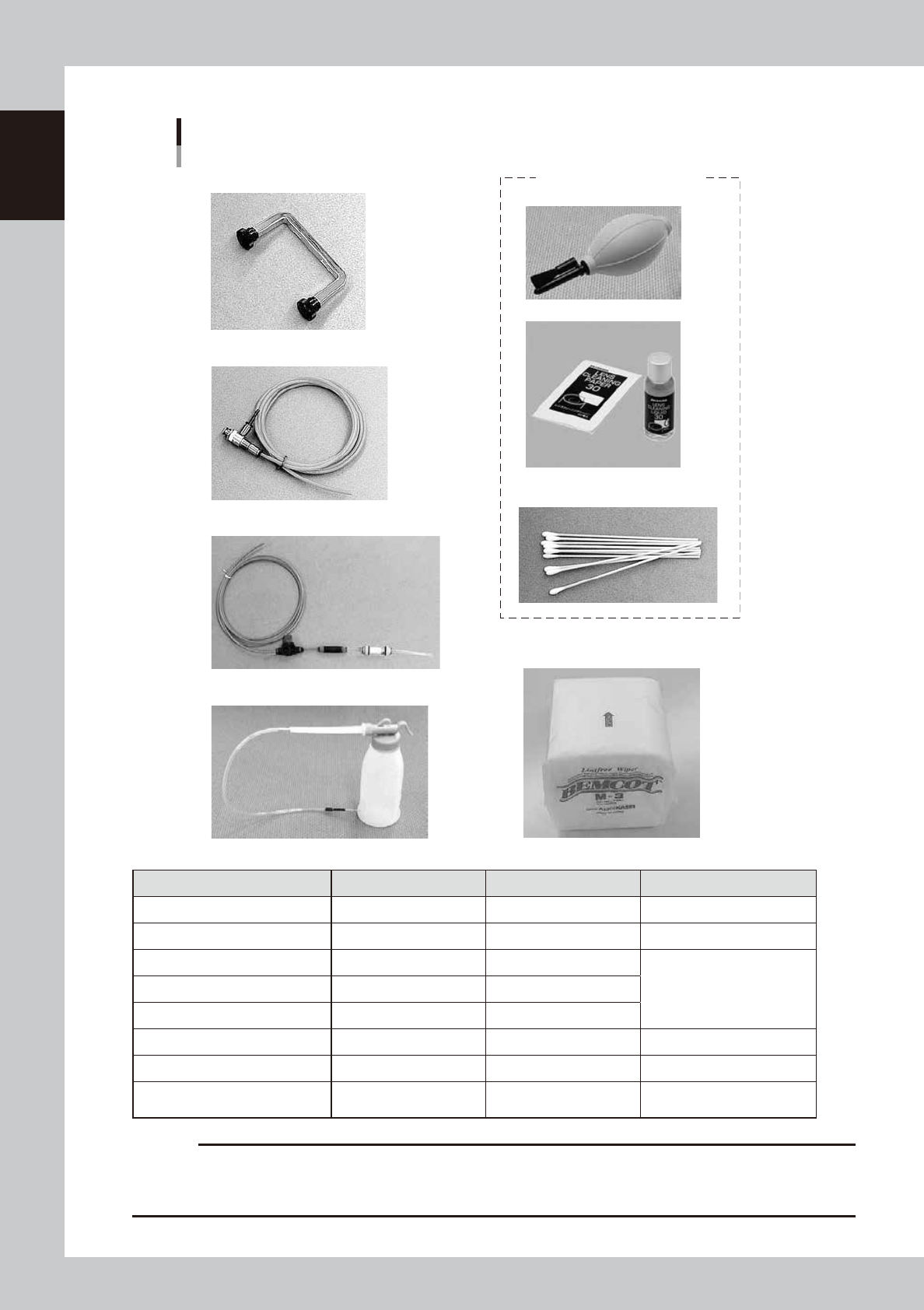

Cleaning tools (Optional parts)
Cleaning tools
Optional purchase parts
Nozzle cleaning wire handle
Air blow tool
Cotton swab sticks (15 cm)
Blower brush
Lens cleaner and cleaning paper
Spline shaft cleaning kit
Cleaning wiper
Vacuum assembly
CLEANER, VISION SET
53106-L4-20
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X
Air blow tool AIR BLOW TOOL KU4-M8590-00X
φ
4mm air hose
Cotton swab sticks (15 cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner and cleaning paper CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-01X
Cleaning wiper WIPER KGS-M3840-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X
For cleaning (vacuum)
φ
4mm air hose
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-11
1
Maintenance
2.2.2 Lubricating tools and grease
n
Lubricating and greasing tools (Parts supplied with machine)
Lubricating and greasing tools
Parts supplied with machine
Lithium-based grease NSL
Nozzle buffing lube supply syringe
Grease gun
Standard nozzle
Flexible type nozzle
Bent type nozzle
GREASE GUN SET
53107-L4-10
Product Name Parts List Designation Parts No. Note
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
Nozzle buffing lube supply syringe SYRING, OIL KV8-M8870-00X Turbine oil VG32
Grease gun (with standard nozzle) GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-12
1
Maintenance
n
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR PROTECTIVE
GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
CAUTION
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a
dark location not exposed to direct sunlight and keep it away from fire and heating sources.
