4.5 Checking spline shaft operation 3-40 4.5.1 Checking spline shaft Z-axis operation 3-40 4.5.2 Checking and cleaning around spline shaft 3-40 4.5.3 Lubricating the spline shaft (as needed) 3-41 4.6 Inspecting and repla…
Chapter 3 Periodic maintenance items
Contents
1. Weekly inspection 3-1
1.1 Checking and cleaning the nozzles 3-1
1.1.1 Buffing area inspection 3-1
1.1.2 Checking the leaf spring 3-2
1.2 Nozzle cleaning 3-3
1.2.1 Cleaning and lubricating the nozzle buffing area 3-3
1.2.2 Cleaning the nozzle tip 3-4
1.3 Cleaning and lubricating the gripper nozzle (option) 3-6
1.3.1 Inspecting the gripper nozzle 3-6
1.3.2 Cleaning and lubricating the gripper nozzle 3-6
1.4 Checking the conveyor sensor condition and operation 3-8
1.5 Checking the board clamp condition and operation 3-10
1.5.1 Checking the board clamp condition 3-10
1.5.2 Checking the board clamp operation 3-10
1.6 Cleaning the Y-axis linear scale 3-11
1.7 Cleaning the camera protective glass 3-12
2. Monthly or bimonthly inspection 3-13
2.1 Cleaning the nozzle air path 3-13
2.2 Inspecting each axis 3-14
3. Two-month inspection 3-15
3.1 Cleaning and greasing the X and Y axes 3-15
3.1.1 Cleaning and greasing the X-axis ball screw 3-15
3.1.2 Cleaning and greasing the X-axis guide 3-20
3.1.3 Cleaning and greasing the Y-axis guide 3-22
3.2 Cleaning and greasing the push-up axis (PU-axis) 3-24
3.3 Inspecting and cleaning the conveyor belt 3-26
4. Three-month inspection 3-32
4.1 Cleaning and replacing the ejector filter 3-32
4.2 Checking the ejector vacuum pressure 3-33
4.3
Operation check of head blow valve and cleaning blow valve
3-34
4.4 Cleaning the inside of the spline shaft 3-36
4.4.1 Cleaning the inside of the spline shaft 3-36
4.4.2 Checking the negative pressure 3-39
4.5 Checking spline shaft operation 3-40
4.5.1 Checking spline shaft Z-axis operation 3-40
4.5.2 Checking and cleaning around spline shaft 3-40
4.5.3 Lubricating the spline shaft (as needed) 3-41
4.6 Inspecting and replacing the air and oil mist filter 3-42
4.7 Dual stage only: Cleaning and lubrication of U axis (W2 axis) 3-44
5. Six-month or one-year inspection 3-47
5.1 Cleaning the fiducial camera 3-47
5.2 Cleaning and lubricating the W-axis 3-48
6. One-year inspection 3-51
6.1 Checking the R-axis spline belt 3-51
3-1
3
Periodic maintenance items
1. Weekly inspection
This section mainly describes weekly inspection and cleaning.
1.1 Checking and cleaning the nozzles
If buffing action (spring action) is poor, component pickup errors may occur. To prevent such problems,
periodically check and clean each nozzle.
1.1.1 Buffing area inspection
Check the spring action of the nozzles. Press on a nozzle and if it returns normally there is no problem.
However, if the return action is poor (sluggish) then pickup errors and recognition errors will occur.
c
CAUTION
When checking by pressing the nozzle tip, use care to avoid applying excessive force. The condition is normal if the
tip returns to its original position after being pressed in approximately 1mm.

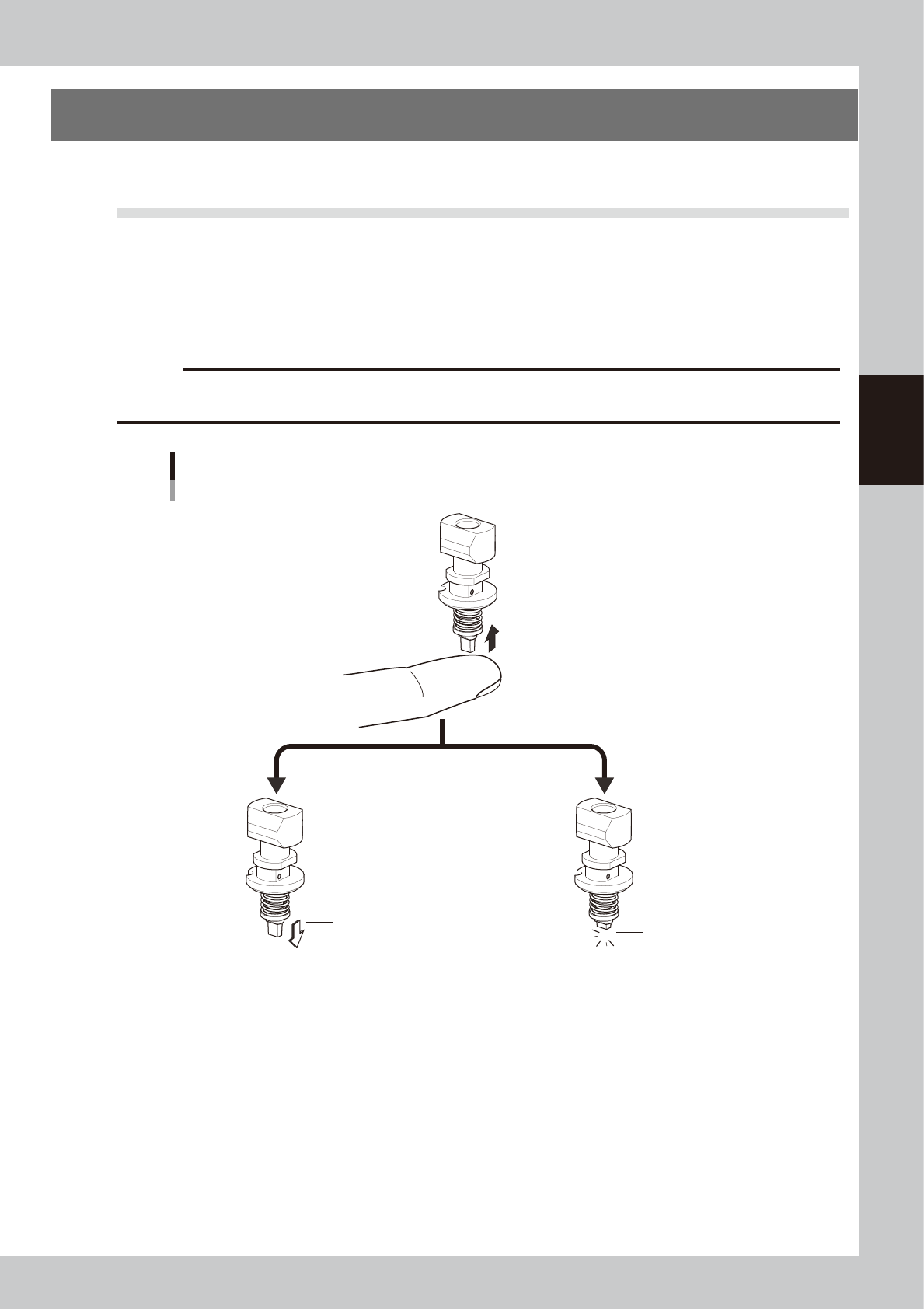

Checking the nozzle spring action
Example showing type 302A nozzle
Press on the nozzle tip with your hand.
Returns to original
position
Returns sluggishly
or does not return.
OK NG
53300-L4-00
