3-13

Periodic maintenance items

2. Monthly or bimonthly inspection

2.1 Cleaning the nozzle air path

Clean the nozzle air path if a nozzle clogging is found in the daily inspection or every month.

Remove the nozzle from the head.

1. Press the emergency stop button and

then open the machine safety cover.

2. Remove the nozzle from the head. If the

machine is equipped with the nozzle

station, press the [Nozzle Stn Shutter]

button to open the nozzle station shutter

and remove the nozzle.

Blow air through the nozzle.

1. Detach the nozzle tip and air blow the

nozzle from the nozzle mounting side.

2. Attach the nozzle tip and air blow the

nozzle from the nozzle mounting side.

53308-L4-10

CAUTION

Be careful not to deform the clip.

NOTE

If there are dust deposits in the nozzle, perform steps 3

and 4.

Clean the nozzle hole.

1. Pass a nozzle cleaning wire through the

nozzle hole.

2. Clean the nozzle by moving it as shown

at right.

53309-L4-10

Blow air onto the nozzle tip again.

Remove the nozzle cleaning wire, then

air-blow the nozzle interior with the air blow

tool as described in Step 2.

Return the nozzle to its original

head.

NOTE

If removed nozzles from the nozzle station, return them

to the nozzle storage positions.

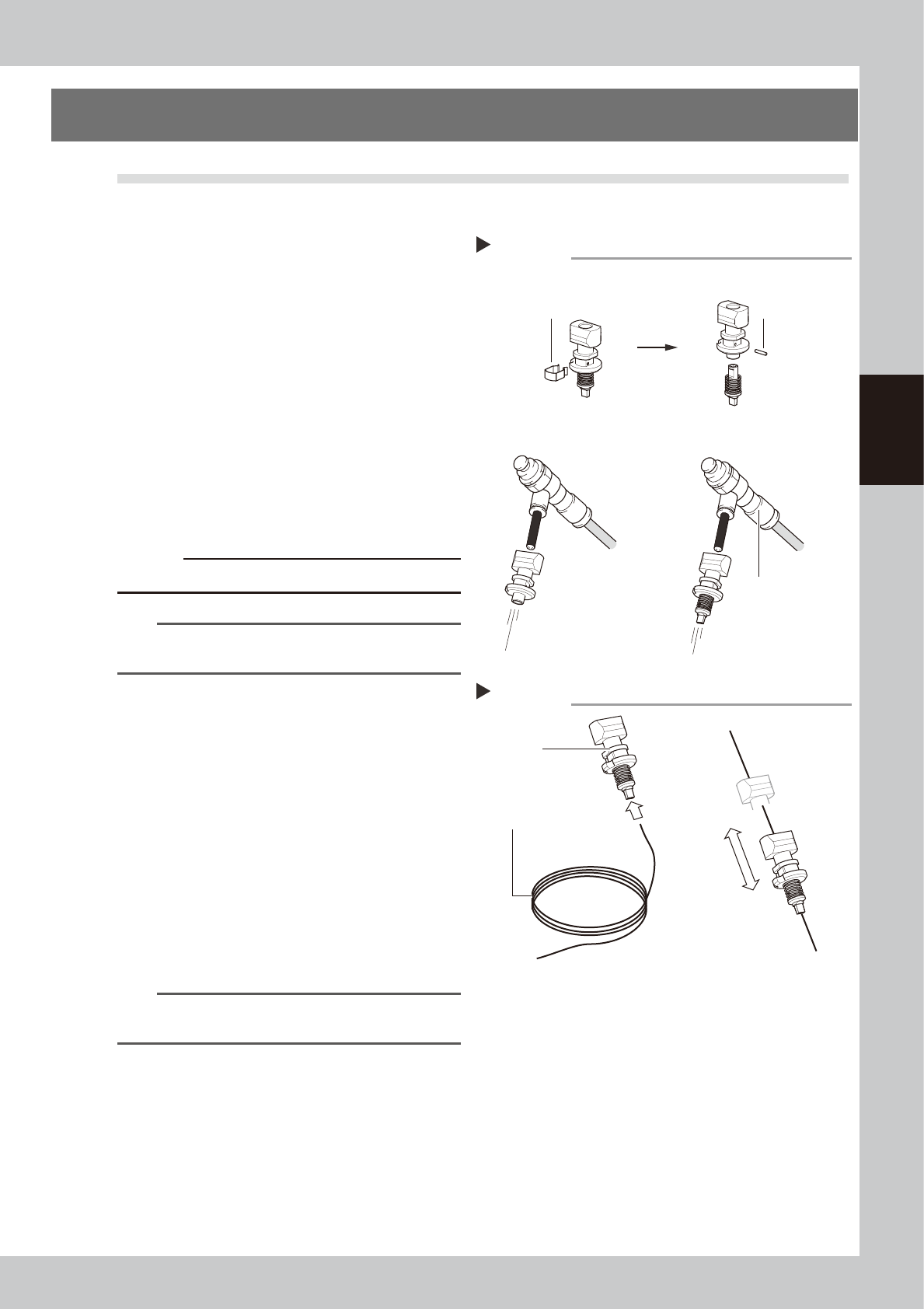

Cleaning a nozzle

Step 3

Nozzle

Nozzle cleaning wire

Air blow

Step 2

Air blow unit (optional)

Remove the clip.

Pull out the pin.

Air tube (orange) connected

to air supply port

■ Detach the nozzle tip, and

air-blow from that side.

■ Attaching/detaching the nozzle tip

■ Blow air from the nozzle

attachment side.

3-14

Periodic maintenance items

2.2 Inspecting each axis

Inspect the ball screws on the X, W, U, and PU (Push-up) axes and the guides on the X, Y, W, and U axes. The

checkpoints are listed below.

A grease spattering prevention cover is attached to the X-axis ball screw. Before starting the inspection work,

detach this grease spattering prevention.

TIP

See "3.1 Cleaning and greasing the X and Y axes" described later on for detaching or attaching the anti grease

splatter cover.

TIP

See "3.1 Cleaning and greasing the X and Y axes", "3.2 Cleaning and greasing the push-up axis (PU-axis)", "4.7 Dual

stage only: Cleaning and lubrication of U axis (W2 axis)" and "5.2 Cleaning and lubricating the W-axis" in this chapter,

and "Chapter 5 Lubrication points and schedule" for positions of ball screws and guides of each axis.

Checkpoints

1. Any foreign matter adhering to the ball screws and guides?

Check if any fallen chips have adhered to the X and Y axis ball screws and/or X, Y and W axis guides.

2. Do the ball screws and guides have the correct amount of grease?

Check if grease has flowed off or splattered in the air failing to adhere. Also check if grease has discolored or hardened.

3. Any abnormal sounds from the ball screws?

Press the emergency stop button. Then check for any abnormal sounds while pressing the X-axis by hand.

Countermeasures

1. Ball screws and guides may be damaged when chips and other material bite into them. If chips are adhering, wipe

them off along with the grease or remove with tweezers, etc.

2. Apply grease referring to "3.1 Cleaning and greasing the X and Y axes", "3.2 Cleaning and greasing the push-up axis

(PU-axis)", "4.7 Dual stage only: Cleaning and lubrication of U axis (W2 axis)" and "5.2 Cleaning and lubricating the

W-axis" in this chapter described later on.

3. Contact YAMAHA sales representative when abnormal sounds occur even after trying the countermeasures in the above

steps 1 and 2.

WARNING

THIS MACHINE CONTAINS PARTS GENERATING STRONG MAGNETIC FIELDS. GREAT CARE SHOULD BE TAKEN WHEN A PART

OF YOUR BODY IS PUT INSIDE THE MACHINE FOR THE MAINTENANCE WORK. CAUTIONS REGARDING FERROMAGNETIC

FIELDS ARE DESCRIBED IN THE SECTION, "SAFETY INSTRUCTIONS", AT THE BEGINNING OF THIS DOCUMENT. ALWAYS

THOROUGHLY READ THIS SECTION TO FULLY UNDERSTAND ITS CONTENTS.

3-15

Periodic maintenance items

3. Two-month inspection

3.1 Cleaning and greasing the X and Y axes

This section describes how to clean and grease the X and Y axes. See "Chapter 5 Lubrication points and

schedule" for lubrication points and lubrication form. Prepare a grease gun and specified grease (NSL).

CAUTION

When performing the cleaning and greasing work, use square bandages to prevent parts from being lost or entering

the Y-axis linear part.

CAUTION

For information on the use of grease, read the caution items for handling in "Safety instructions" and chapter 1, "2.2.2

Lubricating tools and grease".

CAUTION

If abnormal sound is heard from the X and Y axis ball screws or guides, contact YAMAHA sales representative.

Disassembly and cleaning of the ball screws or guides by the user will void the warranty.

3.1.1 Cleaning and greasing the X-axis ball screw

For YS24X with sATS II, it is recommended to perform the service work from the front of the machine for both

the table A(at the front side) and the table B(at the rear side). The work procedure for each table is separately

shown below.

A-table

The procedure for the service from front side of the machine is described in the following.

Make the preparations for the

cleaning and greasing work.

1. Take off all accessories susceptible to the

magnetic fields, such as a wristwatch

and/or magnetic ID card.

2. Press the emergency stop button and

then open the machine safety cover.

3. If the machine is equipped with a

carriage, remove the carriage.

4. Place a square cloth on the Y-axis linear

area and the push-up plate.

Remove the grease spattering

prevention cover.

1. Move the A-table's head unit all the way

to the front of the machine.

2. Move the head unit to the right side and

loosen two mount screws on the left of

the grease spattering prevention cover

with Philips Screwdriver.

53311-L4-00

3. Move the head unit all the way to left,

remove two mount screws on the right of

the grease spattering prevention cover

with Philips Screwdriver.

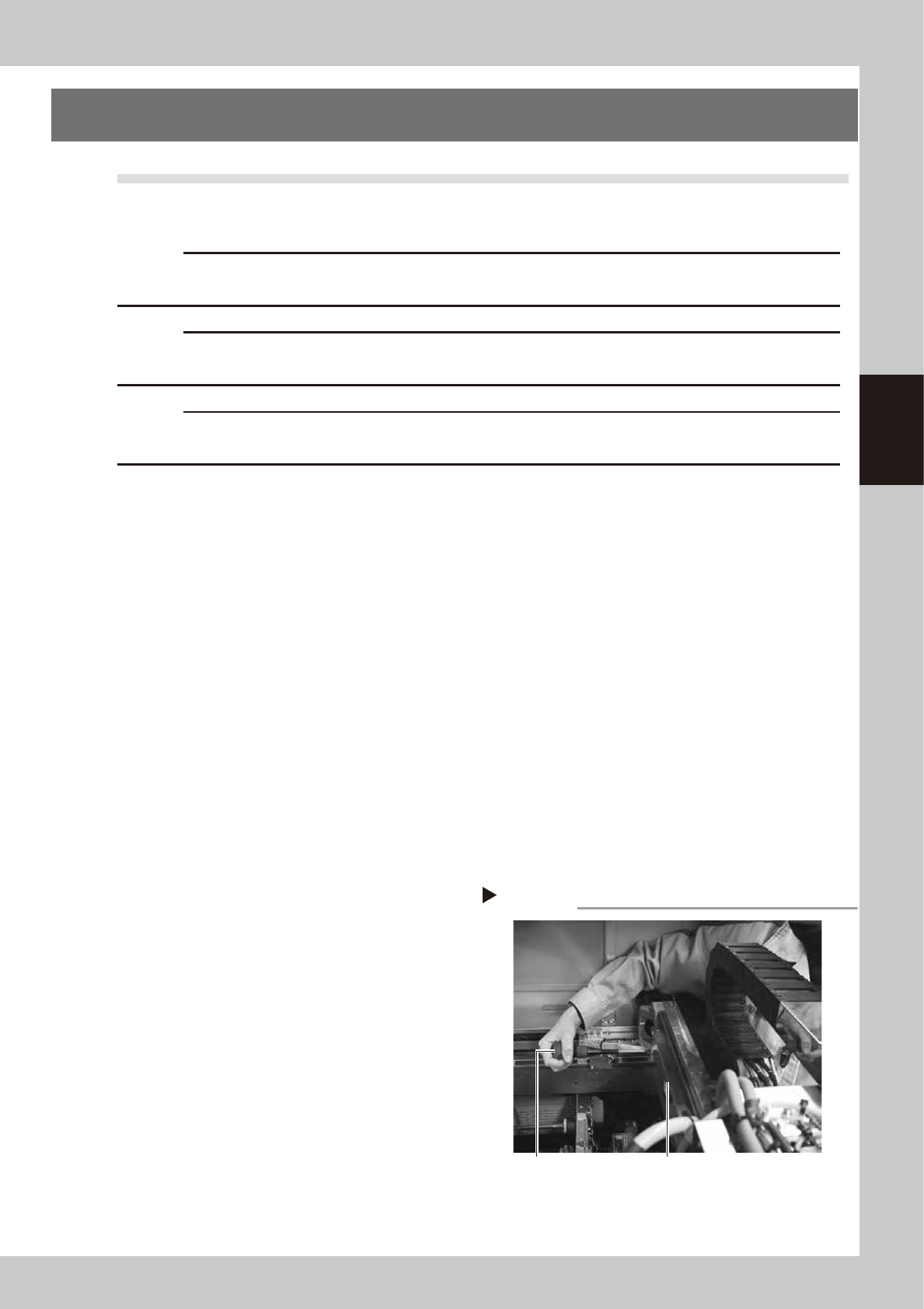

Removing the screws holding the cover

Phillips screwdriver Grease spattering prevention cover

Step 2-2
