3-23 3 Periodic maintenance items e 8 Check the grease condition. 1. After stopping war ming up, push the emergency stop button, and open the machine’s safety cover . If the machine is equipped with a carriage, remove th…
3-22
3
Periodic maintenance items
3.1.3 Cleaning and greasing the Y-axis guide
1
Make the preparations for the
cleaning and greasing work.
1. Take off all accessories susceptible to the
magnetic fields, such as a wristwatch
and/or magnetic ID card.
e
2. Press the emergency stop button and
then open the machine safety cover.
3. If the machine is equipped with a
carriage, remove the carriage.
4. Place a square cloth on the push-up
plate.
2
Clean the guide.
1. After moving Y-axis to the edge, clean
the whole guide with a lint-free cloth that
does not raise dust.
2. Next, move the Y-axis to the opposite
side, then wipe the opposite-side guide.
53322-L4-10
n
NOTE
Wipe away thoroughly the old grease in the grooves of
the guide rails.
3
Apply new grease to the guide rails.
Use the grease gun (standard nozzle) to
supply the specified grease (NSL) through
the grease nipples for the Y-axis guide (two
places each, eight places in total).
53323-L4-10
4
Spread the grease.
Move the Y-axis back and forth several times
by hand to spread the grease.
n
NOTE
The grease you have injected through the nipple oozes
to the guide when moving the axis.
5
Wipe off the excess grease.
Wipe off the excess grease from both ends
of the guide.
6
Apply the grease again.
Repeat Steps 3 to 5 twice again.
After that, visually check that the grease is
applied to the entire guide.
7
Perform a warm-up.
1. Remove the square cloth.
2. Close the machine’s safety cover, and
cancel the emergency stop. If the
machine could be equipped with a
carriage, set the carriage.
3. Open the Warm-up screen, and perform
the warm-up operation for approximately
8 minutes.

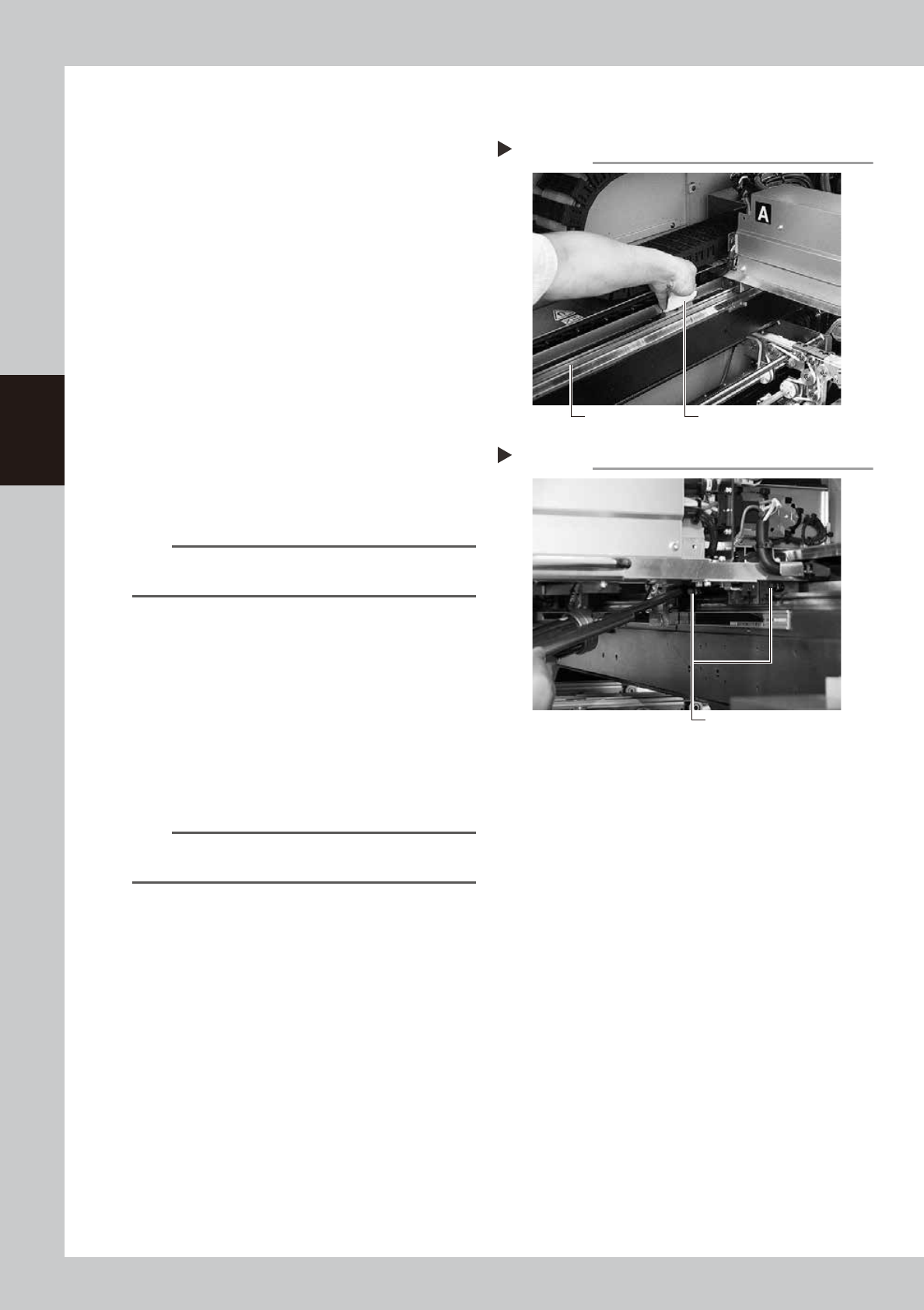

Cleaning the Y-axis guide
Step 2
Guide rail Cleaning cloth
Greasing the Y-axis guide
Step 3
Grease nipple (2 places)
3-23
3
Periodic maintenance items
e
8
Check the grease condition.
1. After stopping warming up, push the
emergency stop button, and open the
machine’s safety cover. If the machine is
equipped with a carriage, remove the
carriage.
2. Wipe the grease that was accumulated
on the guide and the end side of the
guide.
c
CAUTION
Repeat Step 7 and 8 until grease accumulations no
longer occur. Beginning production with grease
accumulations present could cause the grease to
splatter.
9
Clean the linear scale.
1. Check there is no grease spattered on
the linear scale area.
2. When grease and dirt are present, see
"1.6 Cleaning the Y-axis linear scale" in
this chapter, and perform cleaning.
c
CAUTION
Do not dry-wipe the linear scale strongly.
3-24
3
Periodic maintenance items
3.2 Cleaning and greasing the push-up axis (PU-axis)
The push-up axis is designed to prevent flexing or warping of the board during clamping and is important
because it prevents depressing of the board during component mounting.
The PU axis also prevents deviations in the component mounting accuracy due to the board depressing during
component mounting, so it is important to regularly clean and inspect the PU axis to ensure it operates
correctly.
c
CAUTION
If trouble occurs with the PU axis, then contact YAMAHA sales representative. Disassembly and cleaning of the PU axis
by the user will void the warranty.
1
Set the conveyor width to
maximum.
1. Press the [Conveyor Width] button on the
[Unit] – [Conveyor] screen to display the
Conveyor Width Change screen.
2. Enter the maximum with described in the
specification in [Conveyor Width after
Change], and press the [OK] button. The
conveyor width changes to the specified
width.
54303-L4-10
TIP
The maximum width of dual stage and single lane
specification conveyor width is 460 mm. If the
specification is the dual lane, enter 382 mm as the
maximum width in Lane 1 or Lane 2 in order to match
the pushup axis position of lubrication target.
2
Raise the push-up unit.
1. Press the [Pushup] button on the stage or
lane to conduct grease up to display the
“Conveyor Pushup” screen.
2. Enter “0.1 mm” in Thickness and press the
[OK] button. The pushup unit moves up.
3
Make the preparations for the
cleaning and greasing work.
e
1. Take off all accessories susceptible to the
magnetic fields, such as a wristwatch
and/or magnetic ID card.
2. Press the emergency stop button and
then open the machine safety cover.
3. If the machine is equipped with a
carriage, remove the carriage to make
the pushup unit easy to access.
4
Wipe the old grease.
Wipe the old grease on ball screws (3
locations) with a lint-free cloth that does not
raise dust.
53328-L4-00
5
Apply the new grease.
Apply as much as 2 cm of specified grease
(NSL) to finger. Rub it evenly into the ball
screw grooves.
53329-L4-00

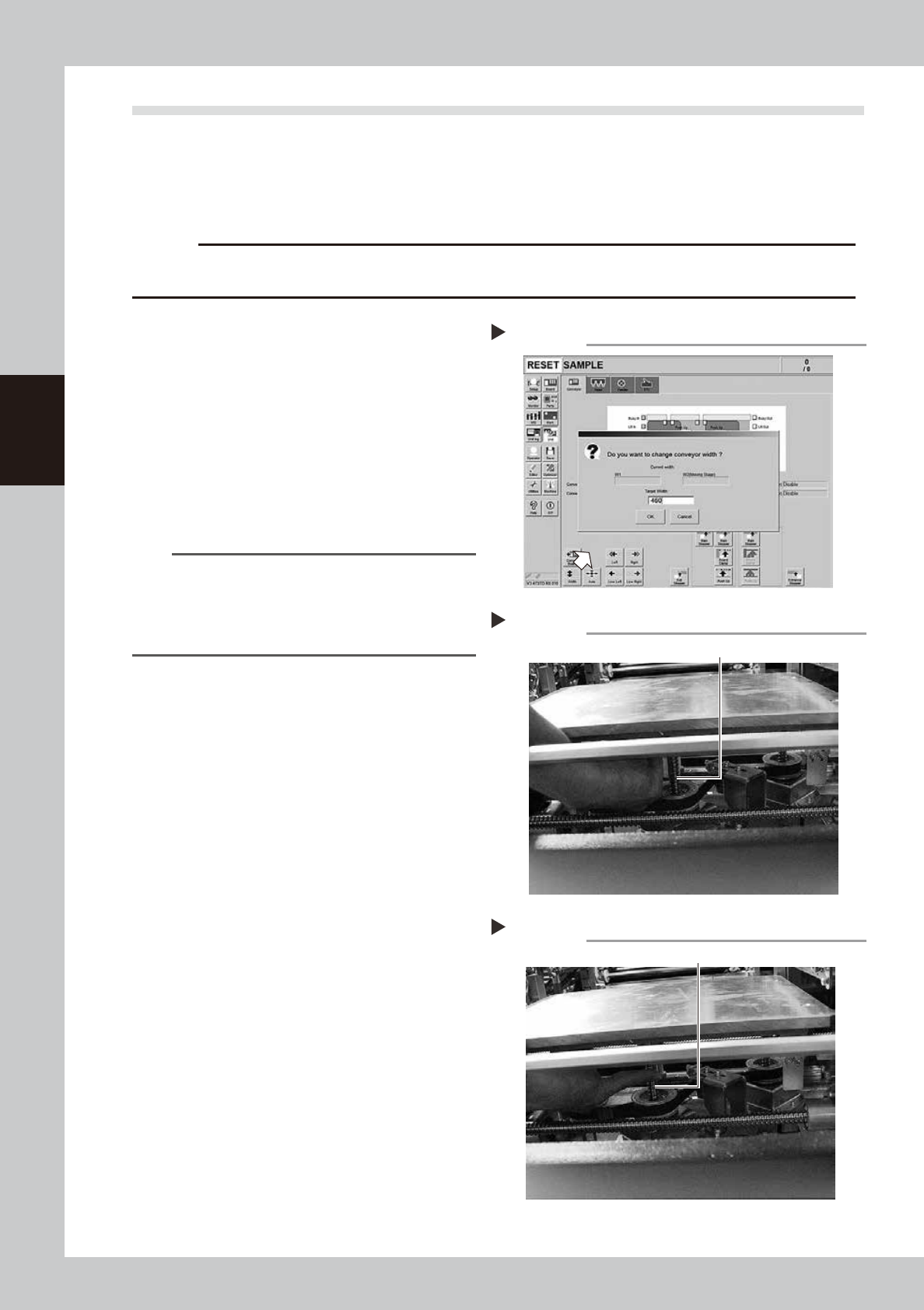

Cleaning the ball screw
Step 4
Ball screw (3 places)
Applying the grease
Step 5
Ball screw
Setting the conveyor width
Step 1
