DT80
Hose Connector
for DT530
Cover Replacement
0034779-071024
INSTRUCTION MANUAL
DT80
Hose Connector ........................................ 1 unit
Packing List
The following items are included:

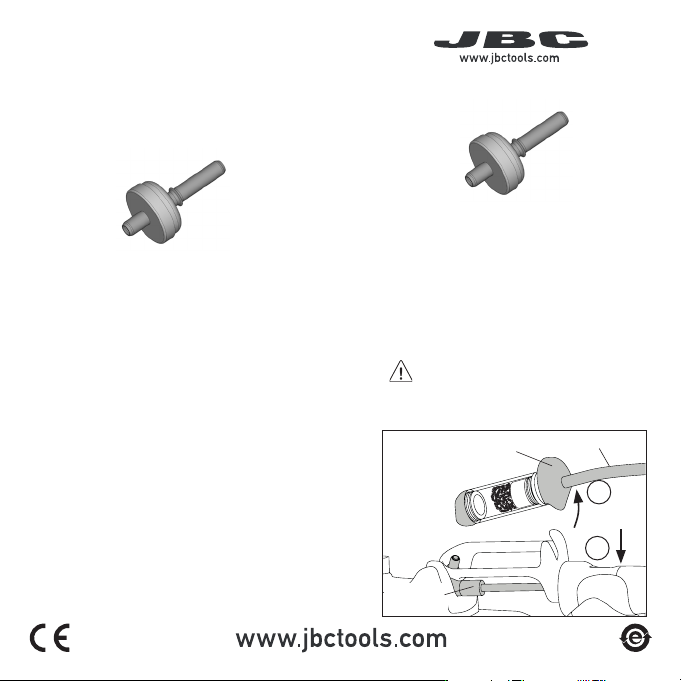

Hold down the tool with one hand onto
the stand (1) and grasp the suction
hose at the point where it meets the
protective cover and pull upwards (2) to
undock the solder-collector group from
the heating element.
Be careful when manipulating
the tool. The metal and glass parts
may be hot.
2
1
Heating
Element
Protective Cover
Suction Hose
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

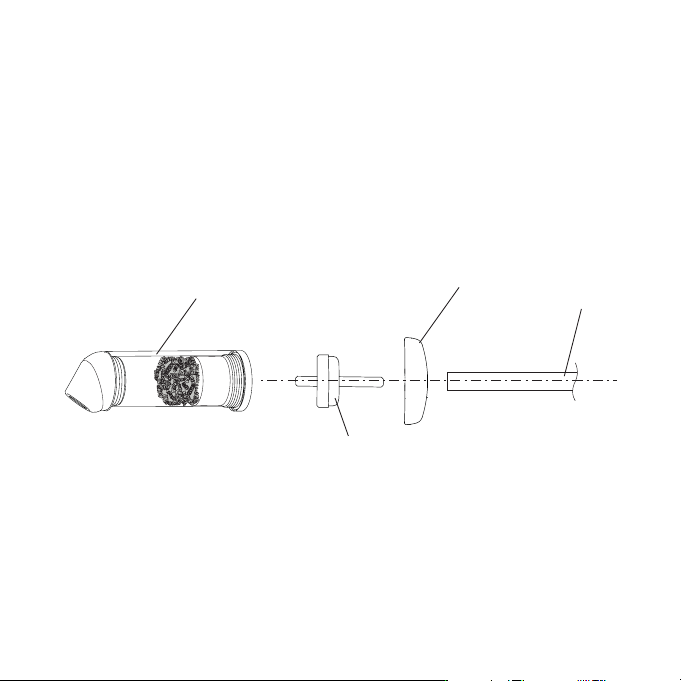

Hose Connector
Solder Collector
Protective Cover
Suction Hose
Remove the suction hose from the nozzle of the hose connector. Remove the protective
cover by pulling it out and then remove the hose connector as well and replace it
with the new one. Reassemble the new hose connector to the solder collector, place
back the protective cover onto the nozzle of the hose connector and connect again
the suction hose.
Reassemble the whole solder-collector group onto the desoldering tool.
