Multi-Gripper-Kit – How to se lect the match ing end stop 12 ► Find out the corresponding size of the end stop. (1) ► Find out the corresponding sh ape. (2) ► Pick th e end stop from the su itcase. (3)

Multi-Gripper-Kit – How to select the matching end stop

Select:

1. Shape A for long components.

2. Shape B for short components.

3. Shape C for slim short components.

4. Shape D for frame type components.

Multi-Gripper-Kit – How to select the matching end stop

► Find out the corresponding size of the end

stop. (1)

► Find out the corresponding shape. (2)

► Pick the end stop from the suitcase. (3)

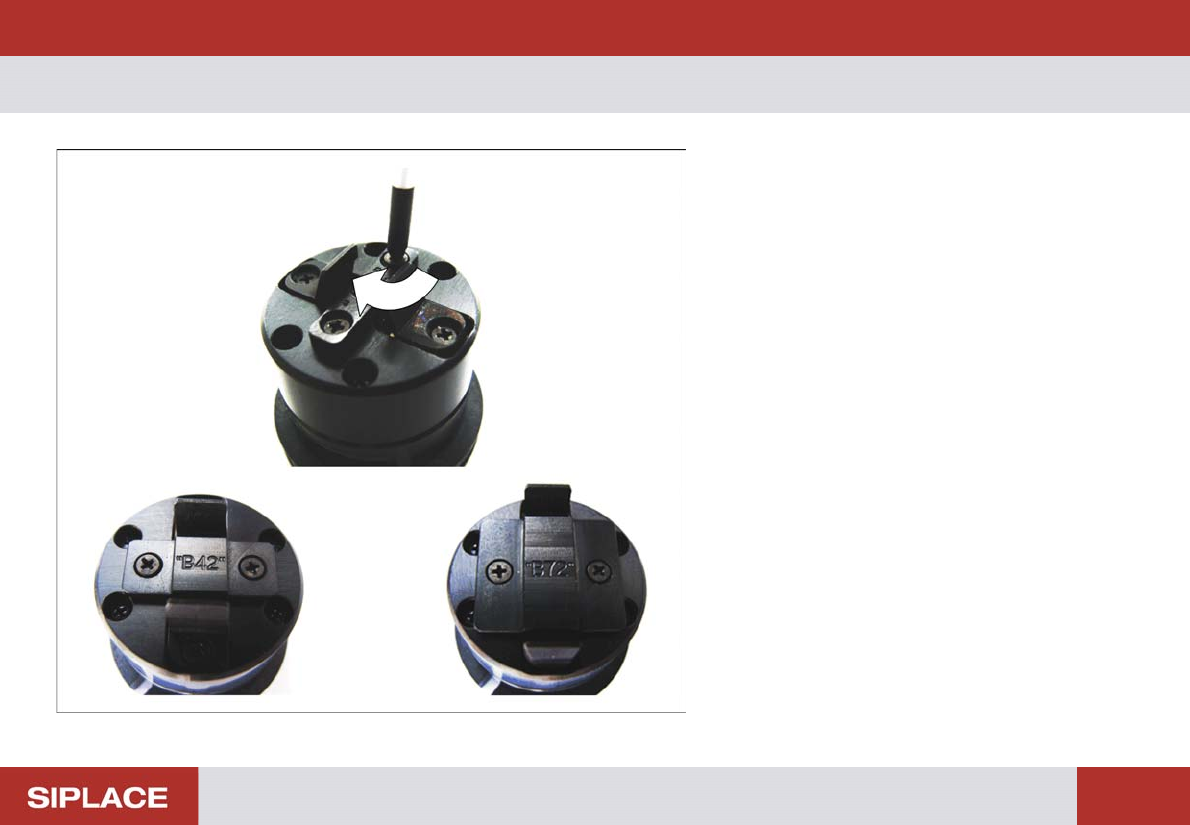

Multi-Gripper-Kit – Fitting the end stop

– Fitting the end stop

► Tighten the end stop to the gripper base

hand tight.

Attention:

Make sure that the engraved type designation

can be seen on the upper side of the end stop.

Warning:

Never remove the four screws of the gripper

base, otherwise the gripper base might get

damaged.

Note:

For long-term applications we recommend to

tighten the screws with a torque wrench and a

torque of 12 Ncm.
