Multi-Gripper-Kit – How to select the matching end stop

► Find out the corresponding size of the end

stop. (1)

► Find out the corresponding shape. (2)

► Pick the end stop from the suitcase. (3)

Multi-Gripper-Kit – Fitting the end stop

– Fitting the end stop

► Tighten the end stop to the gripper base

hand tight.

Attention:

Make sure that the engraved type designation

can be seen on the upper side of the end stop.

Warning:

Never remove the four screws of the gripper

base, otherwise the gripper base might get

damaged.

Note:

For long-term applications we recommend to

tighten the screws with a torque wrench and a

torque of 12 Ncm.

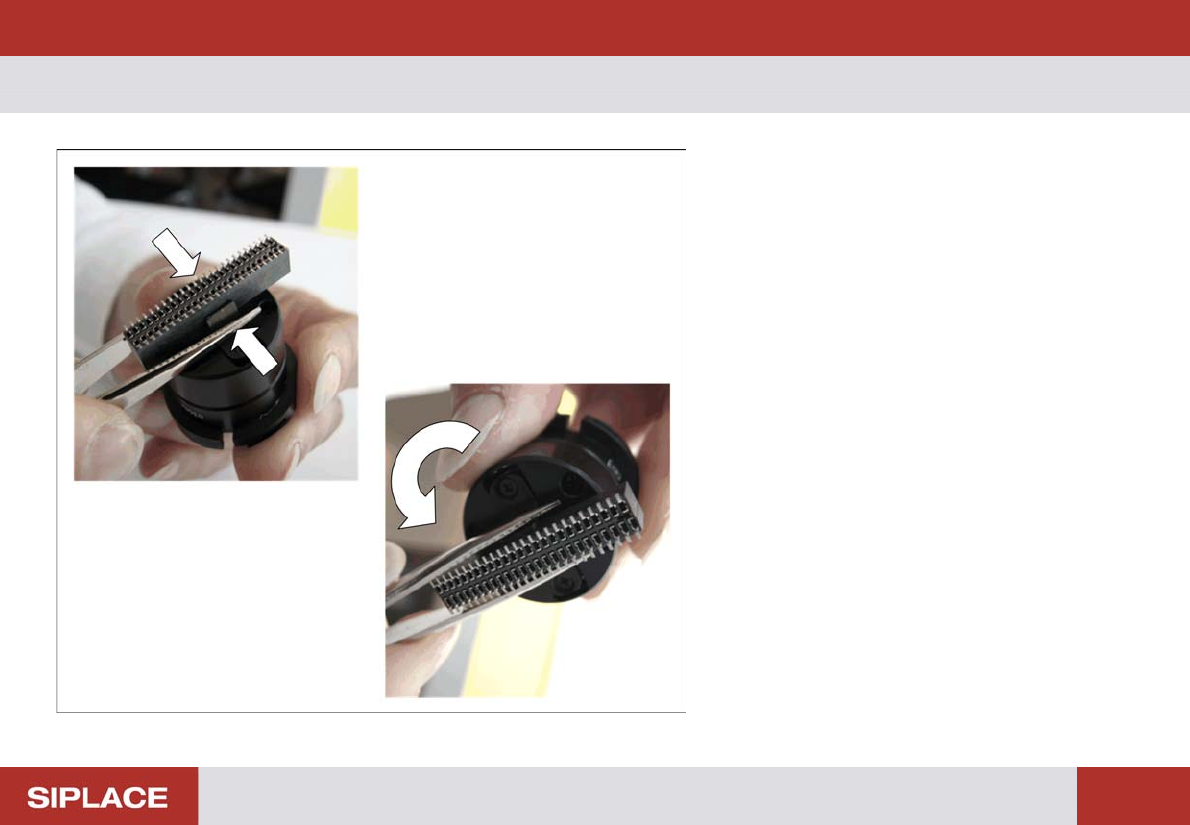

Multi-Gripper-Kit – Checking the gripper

– Checking the gripper

Before using the gripper on the line you have to

check if the gripper really grips the desired

component.

► Put the component on the gripper.

► Take a pair of tweezers and press the jaws

together strongly.

► Turn the gripper upside down.

If the component remains within the gripper, the

gripper can be used on the line.
