CP-642ME P ARTS LIST ver06 1 - 2 - 1 1 . 2 . ノズル一覧( W P H ) 1 . 2 . N o z z l e s ( W P H ) 1 . 2 . ノズル一覧( W P H ) 1 . 2 . N o z z l e s ( W P H ) ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e…
1.1.ノズル一覧(WPH)
1.1.Nozzles(WPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
39 WPH8221 20 SEAL ｼｰﾙ B022-050 PL
40 AWPH9682 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY S022-070 OT
41 AWPH9164 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 S022-070 OT
42 WPH8181 20 SEAL ｼｰﾙ S022-070 PL
43 AWPH9694 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY B022-070 OT
44 AWPH9176 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 B022-070 OT
45 WPH8171 20 SEAL ｼｰﾙ B022-070 PL
46 AWPH9702 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R012-004 Option(For 0603 support) OT
47 AWPH9181 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R012-004 Option(For 0603 support) OT
48 WPH8331 20 SEAL ｼｰﾙ R012-004 Option(For 0603 support) PL
CP-642ME PARTS LIST ver06
1 - 1 - 3
1.1.ノズル一覧(WPH)
1.1.Nozzles (WPH)
CP-642ME PARTS LIST ver06
1 - 2 - 1

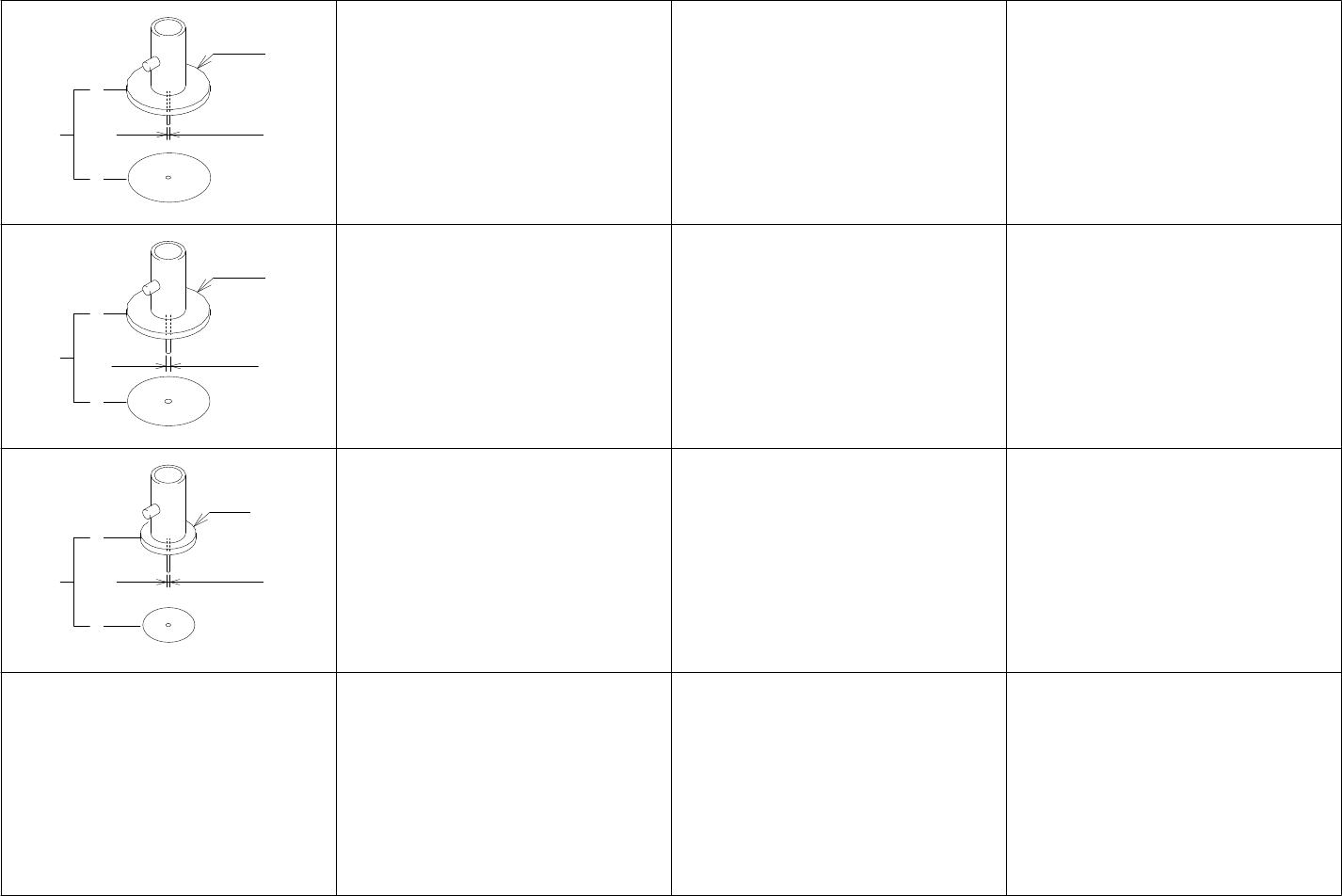

1.2.ノズル一覧(WPH)
1.2.Nozzles(WPH)
1.2.ノズル一覧(WPH)
1.2.Nozzles(WPH)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
R12-004T
2
3
1
φ12
φ0.41
5
R12-007T
4
6
φ12
φ0.71
7
9
8
008-004
φ8
φ0.41
1.2.ノズル一覧(WPH)
1.2.Nozzles(WPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 AWPH9723 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R12-004T OT
2 AWPH9203 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R12-004T OT
3 WPH8301 20 SEAL ｼｰﾙ R12-004T PL
4 AWPH9733 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R12-007T OT
5 AWPH9213 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R12-007T OT
6 WPH8311 20 SEAL ｼｰﾙ R12-007T PL
7 AWPH9710 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY 008-004 Option(For 0603 support) OT
8 AWPH9190 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 008-004 Option(For 0603 support) OT
9 WPH8380 20 SEAL ｼｰﾙ 008-004 Option(For 0603 support) PL
CP-642ME PARTS LIST ver06
1 - 2 - 2
1.2.ノズル一覧(WPH)
1.2.Nozzles (WPH)
