19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM) 19.ST 17(Nozzle pre change check ),ST 18(Nozzle change), ST 19(Nozzle post change check)(WPM) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Descr…

100%1 / 215
CP-642ME PARTS LIST ver06
19 - 2

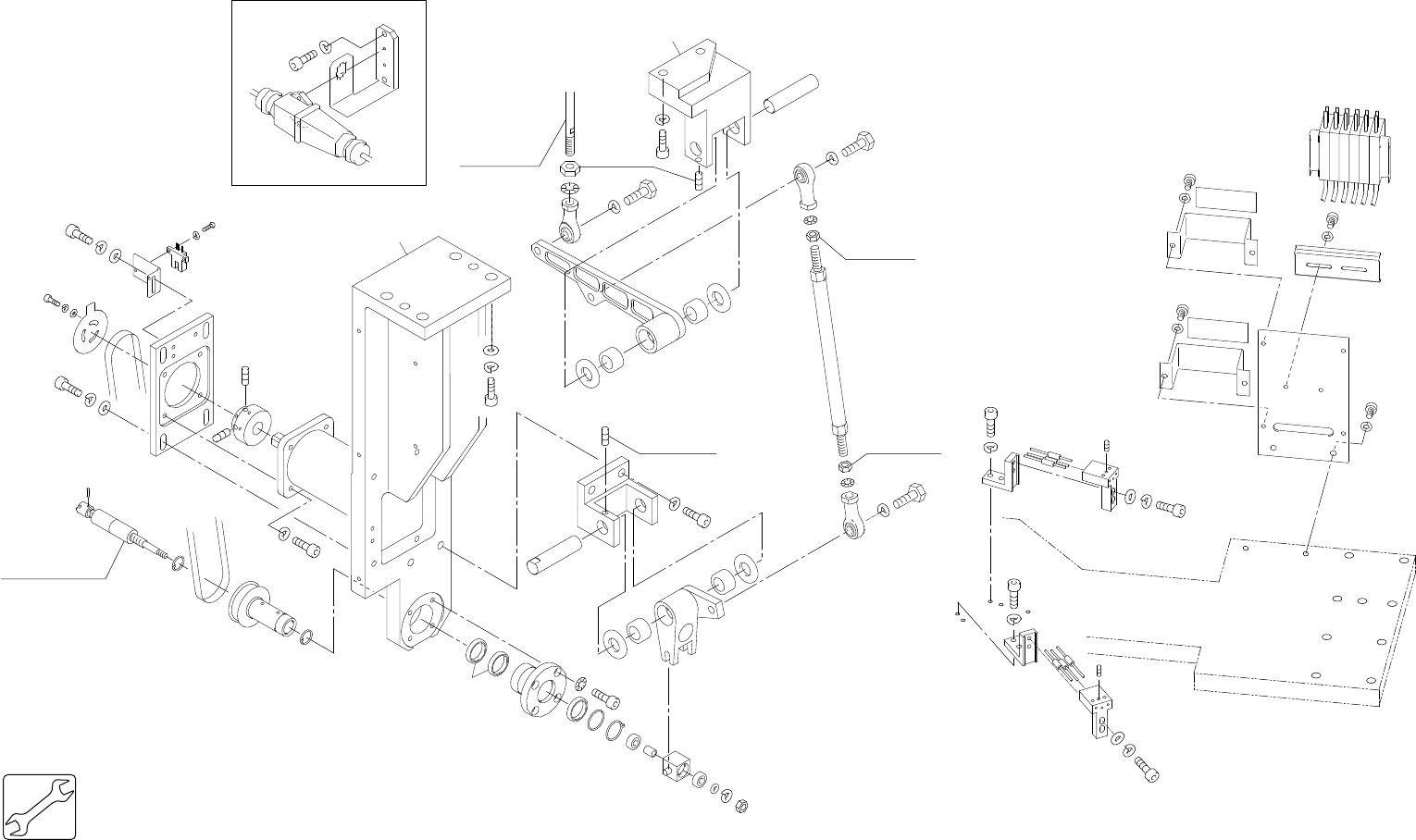

19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check),ST 18(Nozzle change),ST 19(Nozzle post change check)(WPM)
19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check),ST 18(Nozzle change),ST 19(Nozzle post change check)(WPM)
ThreeBond1373B
LOCTITE262
12.74N・m
LOCTITE222
LOCTITE222
12.74N・m
12.74N・m
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check ),ST 18(Nozzle change),
ST 19(Nozzle post change check)(WPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WPM0010 1 BKT BKT FE
2 WPM0021 1 BKT BKT FE
3 WPM0040 4 COLLAR ｶﾗｰ CO
4 YPM0230 1 PLATE ﾌﾟﾚｰﾄ FE
5 WPM0071 1 BKT BKT FE
6 WPM0080 2 SHAFT ｼｬﾌﾄ FE
7 WPM0100 1 PIN ﾋﾟﾝ FE
8 WPM0110 1 WASHER ﾜｯｼｬ FE
9 WPM0120 1 COLLAR ｶﾗｰ FE
10 WPM0132 1 BKT BKT FE
12 WPQ0382 1 COLLAR ｶﾗｰ FE
13 WPM0170 1 BKT BKT FE
14 WPM0180 1 BKT BKT FE
15 WPM0202 1 PLATE ﾌﾟﾚｰﾄ FE
16 WPM0210 2 BKT BKT FE
17 WPM0220 1 SEAL ｼｰﾙ PL
18 WPM0230 1 RAIL ﾚｰﾙ OT
19 WPM0240 1 BKT BKT FE
20 WPM0251 1 DOG ﾄﾞｯｸﾞ AL
21 WPM0293 2 BKT BKT FE
23 WPM0310 1 JOINT ｼﾞｮｲﾝﾄ AL
24 WPM0371 1 LEVER ﾚﾊﾞｰ FE
25 WPM0381 1 LEVER ﾚﾊﾞｰ FE
26 WPM0391 1 JOINT ｼﾞｮｲﾝﾄ FE
27 WPM5012 1 PULLEY ﾌﾟｰﾘ OT
28 SAM6150 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
29 WPM5045 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ OT
30 WPM5064 1 PULLEY ﾌﾟｰﾘ OT
31 H4390H 4 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1512A OT
32 H4115H 2 BEARING ﾍﾞｱﾘﾝｸﾞ R-1560ZZ OT
33 H4104A 3 BEARING ﾍﾞｱﾘﾝｸﾞ A-2520 OT
34 H4520M 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 400-5M-9 OT
35 S1038A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW20 OT
36 H3187A 1 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ RBFD-8 OT
37 H3181M 2 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBRL8FN OT
38 S1002A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW15 OT
CP-642ME PARTS LIST ver06
19 - 3
19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check),ST 18(Nozzle change),
ST 19(Nozzle post change check)(WPM)
19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check ),ST 18(Nozzle change),
ST 19(Nozzle post change check)(WPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
39 S4040X 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
40 S4054Y 6 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S053-A OT
41 A1042T 6 AMPLIFIER ｱﾝﾌﾟ HPX-T1 OT
43 GPH2535 3 BOLT ﾎﾞﾙﾄ FE
44 H5363A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X40L FE
45 H5345A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X40L FE
46 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L FE
47 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L FE
48 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
49 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L FE
50 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
51 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
52 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L FE
53 K5178M SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X6L FE
54 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
55 N4046A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X8L FE
56 N4037A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X8L FE
57 N4018A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X3L FE
58 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
59 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
60 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
61 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
62 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
63 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
64 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
65 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
66 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
67 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
68 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25 FE
69 N1091A NUT, HEX ﾅｯﾄ 六角 M8-L FE
70 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8 FE
71 WPM0401 1 SEAL ｼｰﾙ PL
73 WWZ0233 1 PLATE ﾌﾟﾚｰﾄ FE
74 K5049L 1 CONNECTOR ｺﾈｸﾀ F-H-D7S OT
75 K5049N 1 CONNECTOR ｺﾈｸﾀ F-H-D7B OT
76 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10 FE
CP-642ME PARTS LIST ver06
19 - 4
19.第17 ST(ノズル切換前確認),第18 ST(ノズル切換),第19 ST(ノズル切換後確認)(WPM)
19.ST 17(Nozzle pre change check),ST 18(Nozzle change),
ST 19(Nozzle post change check)(WPM)
