28.エアー配管図(WPI) 28.Pneumatic circuit diagram(WPI) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 36 S4016R 1 SEPARATOR MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02D OT 37 H10245 1 REGU…

100%1 / 215
28.エアー配管図(WPI)
28.Pneumatic circuit diagram(WPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 H1059T 1
VALVE, BALL
ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8 OT
2 H3030A 1
FILTER REGULATOR
ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG OT
3 S3157T 1
SW, PRESSURE
SW ﾌﾟﾚｯｼｬ IS3000-02L5 OT
4 . 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ VV5Z3-41-021-M5 OT
5 H1132A 1
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL VZ3240-5MZ OT
6 H1130Z 2
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL VZ3140-5MZ OT
7 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ WQL4080 (4+6) OT
8 K5351N 4
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-06 OT
9 H1083T 1
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL SS22J-M5-D24UP-Z OT
10 . 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2A32-50D-A77 OT
11 S2113H 2
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ CDQ2D16-10D-F7BV OT
12 K5339T 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1311F-M5-06 OT
13 K2027R 1
KEY
ｷｰ C1000-50 OT
14 H10246 1
REGULATOR
ﾚｷﾞｭﾚｰﾀ R002-01G OT
15 H5447A 1 PUMP, VACUUM 真空 ﾎﾟﾝﾌﾟ KHA750A-305-G1 OT
16 . 1 VACUUM, GAURG 真空 ｹﾞｰｼﾞ 4-041421 OT
17 S3158A 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ ISG190-030-G1 OT
18 H1077T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCS242-M5-D24-SP OT
19 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A12PD25-1S-02-E OT
20 WPA5142 7
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ OT
21 . 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ DAD-25X40-ZG553A2-3731W OT
22 S1053T 4 SILENCER ｻｲﾚﾝｻ KM-23 OT
23 S1056A 5
SILENCER
ｻｲﾚﾝｻ AN101-01 OT
24 S1058A 2
SILENCER
ｻｲﾚﾝｻ AN120-M5 OT
25 S1052A 14
SILENCER
ｻｲﾚﾝｻ SL-M5 OT
26 K5330A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SC6-01-B OT
27 2
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ C7481-250 OT
28 H1073F 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCD345-01D-D24SP OT
29 K5338A 1
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1211F-MS-06 OT
30 H1037F 1 VALVE, MANUAL ﾊﾞﾙﾌﾞ 手動 HV6-6 OT
31 H1063T 2
VALVE, MECHANICAL
ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM133-M5-01 OT
32 S1056A 1
GENERATOR, VACUUM
発生器 真空         
VDBL12P8-06-SA OT
33 H1134A 1
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL VZ415-5LZ-01-U OT
34 1
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ WPL5012 OT
35 K5332A 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ SS4-M5A OT
CP-642ME PARTS LIST ver06
28 - 2
28.エアー配管図(WPI)
28.Pneumatic circuit diagram(WPI)
28.エアー配管図(WPI)
28.Pneumatic circuit diagram(WPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
36 S4016R 1 SEPARATOR MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02D OT
37 H10245 1
REGULATOR
ﾚｷﾞｭﾚｰﾀ R150-02 OT
*.(A1,B1,L12,等)で表示されているのはｴｱｰﾎｰｽです｡
詳細は電気図面をご覧ください｡
*.The type of air hoses are specified using alphabet characters (eg.A1,B1,L12.ect).
Refer to the Electrical Schematic for details.
CP-642ME PARTS LIST ver06
28 - 3
28.エアー配管図(WPI)
28.Pneumatic circuit diagram(WPI)
CP-642ME PARTS LIST ver06
29 - 1

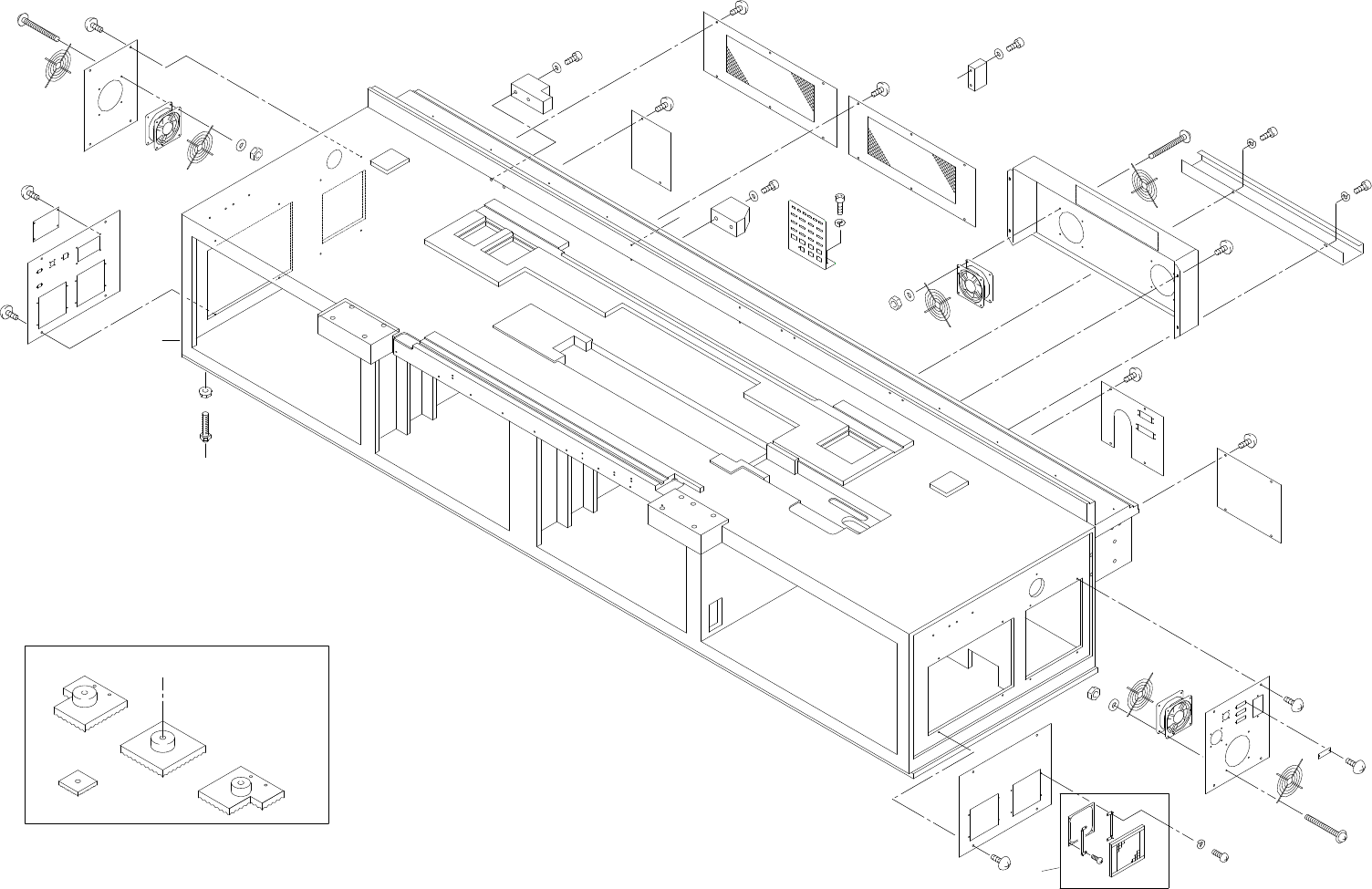

29.本体(WAB)
29.Body(WAB)
29.本体(WAB)
29.Body(WAB)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
B
B
A
A
A
139
26
A
x2
6
30
7
30
4
30
38
34
25
24
5
30
25
27
28
33
26
65
67
10
9
30
57
71
56
30
15
37
32
39
35
29
38
34
25
24
36
31
14
8
30
27
25
69
70
72
30
27
30
25
3
24
25
34
38
2
1
13
12
68
66
30
56
57
55
61
59
63
60
62
64
58
